FD120-17 Contitech Double Layer Air Spring 2B-181 G3/4 Airkraft Air Actuator For Industrial

Product Description

Manufacturer: Contitech

Cross Number: FD120-17

Manufacturer: Airkraft

Cross Number: 113053

Manufacturer: Airkraft

Cross Number: 2B-181

Model Number: FD120-17 CI

Make: CONTITECH

Type: Double Convoluted Air Spring

Number of Convolution: Two

Color: Black

Warranty: 12 Months

Main Material: Rubber

Net Weight: 2.5kg

Size: 24*24*24cm

Gas Hole: G3/4

Cover Plate Diameter: 135mm

Screw Center Distance: 70mm

Rubber Bellow Diameter: 215mm Max.OD

Screw (Nut): M8X1.25

Number of Screw(Nut): 4 Pieces

The Natural Height: 167mm

The Stroke: 75mm-230mm

Firestone FD 120-17 CI Technical Data

Pneumatic application – static characteristic values

Industrial Air Spring

Air springs are widely used in industrial machinery, such as presses, air compressors, centrifuges, vibrating conveyors, control hammers, foundry machinery and textile machines, optical and laser instruments, integrated circuits, ultra-precision machine tools and other equipment. to its application.

The air spring adjusts the operating height by adjusting the air pressure. There is no static friction with other components. When the bearing capacity changes or the position shifts, the system pressure is automatically adjusted to ensure the operating height of the air spring and effectively prevent resonance.

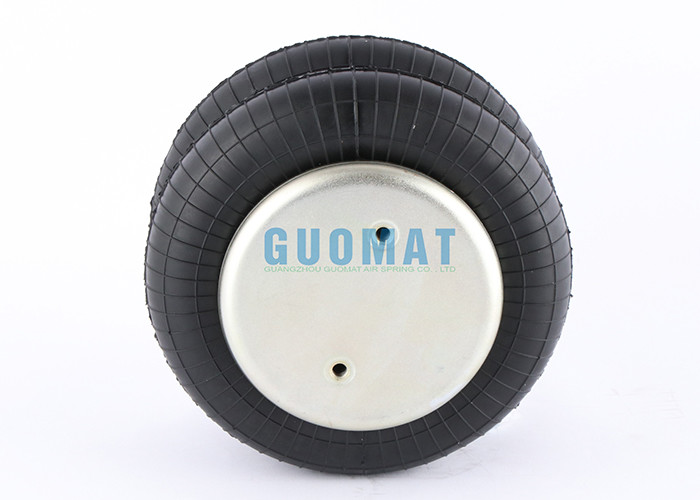

The Real Pictures of FD120-17 CI G3/4

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
