    2B12-425 Goodyear Air Spring 578923309 Triangle 6316/4363 For Leland SC2075 Air Bags

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 2B5330
    Certification : ISO/TS16949:2009
    Price : USD59.9-69.9/PC
    Payment Terms : L/C, T/T, Western Union Or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 3-7 Working Days
    • Product Details
    • Company Profile

    2B12-425 Goodyear Air Spring 578923309 Triangle 6316/4363 For Leland SC2075 Air Bags

    2B12-425 Goodyear Air Spring 578923309 Triangle 6316/4363 For Leland Sc2075 Air Bags

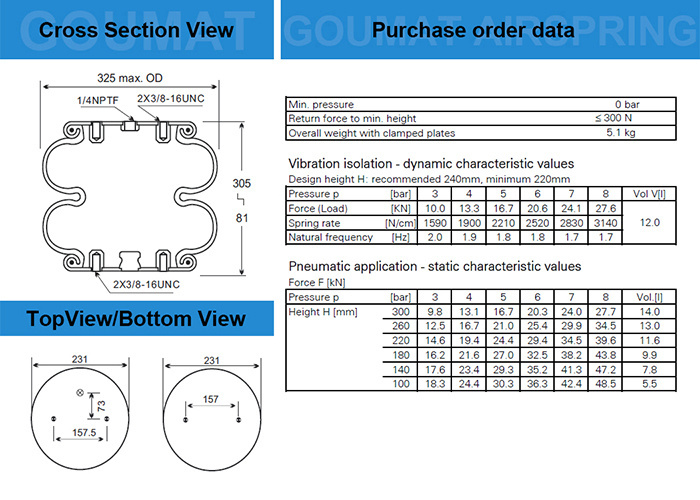

    Technical Parameters of GUOMAT 2B5330

    1 Inch (pounds)71801 Inch (pounds)7180
    3 Inch (pounds)64703 Inch (pounds)6470
    Maximum Stroke (pounds)3700Maximum Stroke (pounds)3700
    Equivalent High Strength Style Number210Equivalent High Strength Style Number210
    Extended Height (Similar End Closure) Style Number22_Ì1.5Extended Height (Similar End Closure) Style Number22_Ì1.5
    Material2-Ply Standard CordMaterial2-Ply Standard Cord
    Bead plate Type3Bead plate Type3
    Blind Nut Centers (inches)6.2Blind Nut Centers (mm)157.48
    Port Offset from Blind Nut Centerline (inches)2.88Port Offset from Blind Nut Centerline (mm)73.152
    Design Height9.5Design Height241.3
    aximum Height (inches)10.1aximum Height (mm)256.54
    Maximum Stroke (inches)6.9Maximum Stroke (mm)175.26
    Minimum Usable Height (inches)3.2Minimum Usable Height (mm)81.28




    OEM Original Equipment Manufacturer:

    BELLOW NO.COMPLETE NO.COMPLETE NO.
    AIRKRAFT 114301

    GUOMAT NO. 2B5330

    AIRKRAFT 113333

    AIRKRAFT 113491
    Fire stone Air Spring FLEX 22


    CONTITECH FD 330-22 313

    Fire stone Air Spring W01-358-7184
    Fire stone Air Spring W01 358 0226Fire stone Air Spring W01 358 7400GOODYEAR 2B12-429
    95.0037


    GOODYEAR 2B12-309

    GOODYEAR FLEX 578-92-3-309
    95.0082GOODYEAR FLEX 578-92-3-309AIRKRAFT 113492
    GOODYEAR 556 2 3 8210


    TAURUS KF 222-7400

    Fire stone Air Spring W01-358-7185
    PHOENIX 2B 22RAIRKRAFT 113490

    GOODYEAR 2B12- 318
    Goodyear Part # 2B12-311 Goodyear-2B12-425 Goodyear-2B12-437

    PIRELLI T22 88544


    CONTITECH FD 330-22 363

    GOODYEAR FLEX 578-92-3-309
    Fire stone Air Spring: W01-358-7180/22Fire stone Air Spring W01-358-7180Watson&Chalinl : AS01541G/01881F
    Contitech: FD 330-22 363GOODYEAR 2B12 425Vibracoustic : VSP2B22R7180
    Goodyear: 2B12-425/311GOODYEAR FLEX 578-92-3-309Ridewell : 1003587180C
    Hendrickson : 1VA1816


    Leland : Sc2075

    Peerless : 0550 00001
    : 578923309


    Navistar : 1685179C1

    SAF Holland : 57007180
    Triangle : 6316/4363EI Ride : 8030190

    Kwiklok/Todco(Jifflox)



    Application of rubber air springs on lifting equipment:
    Conventional lifting equipment uses cylinders or hydraulic cylinders to lift objects, requiring a large installation space, manufacturing difficulties, heavy weight, easy leakage, and inconvenient maintenance. After using the rubber air spring as the lifting element of the lifting device, the traditional shortcomings of the lifting device are overcome, no maintenance is required, the service life is long, and the operation and replacement are convenient. Therefore, rubber air springs are gradually replacing cylinder products on lifting equipment.
    2b12-425 Goodyear Air Spring 578923309 Triangle 6316/4363 for Leland Sc2075 Air Bags


    Other kinds of FD 330-22 that GUOMAT have:

    GUOMAT NO.ReferenceOrder NO.Force (lbs)Max OD (in)Design height(in)HeightNarural frequ.[cpm]
    80 psi100 psiMinMAX
    FD 330 22 313FD 330-22 3131610164200525012.99.54.112102
    FD 330 22 318FD 330-22 3181612704200525012.99.5312102
    FD 330 22 327FD 330-22 3271610294200525012.99.54.112102
    FD 330 22 331FD 330-22 3311610094200525012.99.54.112102
    FD 330 22 334FD 330-22 3341612714200525012.99.54.112102
    FD 330 22 337FD 330-22 3371612724200525012.99.54.112102
    FD 330 22 343FD 330-22 3431612734200525012.99.5312102
    FD 330 22 346FD 330-22 3461612744200525012.99.5312102
    FD 330 22 363FD 330-22 3631612754200525012.99.5312102
    FD 330 22 364FD 330-22 3641612764200525012.99.54.112102
    FD 330 22 365FD 330-22 3651612774200525012.99.54.112102
    FD 330 22 366FD 330-22 3661612784200525012.99.54.112102
    FD 330 22 367FD 330-22 3671612794200525012.99.54.112102
    FD 330 22 368FD 330-22 3681612804200525012.99.5312102
    FD 330 22 465FD 330-22 4651612814200525012.99.5312102
    FD 330 22 471FD 330-22 4711612824200525012.99.54.112102
    FD 330 22 472FD 330-22 4721612834200525012.99.5312102
    FD 330 22 500FD 330-22 5001612844200525012.99.5312102
    FD 330 22 540FD 330-22 5401612854200525012.99.54.112102

    2b12-425 Goodyear Air Spring 578923309 Triangle 6316/4363 for Leland Sc2075 Air Bags
    2b12-425 Goodyear Air Spring 578923309 Triangle 6316/4363 for Leland Sc2075 Air Bags
    2b12-425 Goodyear Air Spring 578923309 Triangle 6316/4363 for Leland Sc2075 Air Bags
