    0.69Mpa Triple Convoluted Airbag Gas Rubber Suspension Spring Repair Kits

    Ask Lasest Price
    Certification : ISO/Ts16949:2009
    Brand Name : GUOMAT
    Model Number : F-500-3
    Price : USD119.9-159.9/PC
    Payment Terms : L/C, T/T, Western Union Or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 3-7 Working Days
    • Product Details
    • Company Profile

    0.69Mpa Triple Convoluted Airbag Gas Rubber Suspension Spring Repair Kits

    0.69Mpa Triple Convoluted Airbag Gas Rubber suspension spring Repair Kits


    Product Description
    ProductNamePunch Air Spring
    Parts NumberF-500-3
    Warranty12 Months
    UseIndustrial Machine
    Bellow TypeTriple Convoluted
    SampleAcceptable
    ColorBlack
    PaymentL/C,T/T,Western Union
    DeliveryAbout 2-8 working days receiving your payment
    PackageStrong Carton Box Or As Customers Need
    ShippingShip by air ,by sea,by express(DHL,Fedex,UPS...)

    The Following Is The Cover Plate Detailed Data Drawing
    0.69MPa Triple Convoluted Airbag, Gas Rubber Suspension Spring Repair Kits

    Technical Data Purchase Order Data


    Design Height:160mm

    Max Height:270mm

    Min Height:90mm

    Common Maximum Travel:±68

    Compression Max Outside Diameter:560mm

    Effective Area:1965cm2

    Volume:30.3L

    Load:96.3KN

    Dynamic Spring Constant:1255n/mm

    Natural Vibration Frequency:1.8Hz

    Maximum Internal Pressure:0.69Mpa

    Internal Pressure Failure:3.9-4.9Mpa


    About Us

    Guangzhou Guomat Air Spring Co., Ltd.

    • We focus on the production of air spring has been 15 years which is Chinese the largest manufacturer of air springs.
    • We have Truck air spring,Bus air spring ,Car Suspension air spring , Industrial air spring and Air Suspension Compressor .
    • The company has its own workshop,Provide all customers with high-quality purchasing experience,excellent quality and after-sale service

    Company Advantages

    • Excellent materials
    • Effective shock
    • In situ installation
    • Comfortable and stable

    • Long life

    • Slove the abnormal noise

    Punch Air Spring


    An air spring is a type of suspension system used in vehicles to provide a smooth and comfortable ride. It consists of a flexible bag filled with compressed air, which supports the weight of the vehicle and absorbs shocks and vibrations. The air spring is typically connected to the vehicle's suspension system and can be adjusted to vary the ride height and stiffness of the suspension.


    FAQ
    1. Are you a Manufacture factory?Yes, We are the direct manufacture factory, located in Guangzhou China, Which is specialized in air spring in China for over 15years experience from 2008 years.
    2. What is your main products?Our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system.
    3. Is the sample available?Yes, Usually we send the samples by TNT,DHL,FEDEX or UPS, it will take around 2-8 days for our customers to receive them, but charge all customer will cost related to the samples, such as sample cost and airmail freight. We will refund our customer the sample cost after receiving its order.
    5. Can i use my own logo and design on products?YES,OEM is welcomed.
    6. I can not find out the items what i want from your website, can you offer the products i need?YES.One of our service term is sourcing the products that our customers need,So please tell us the details information of the item.

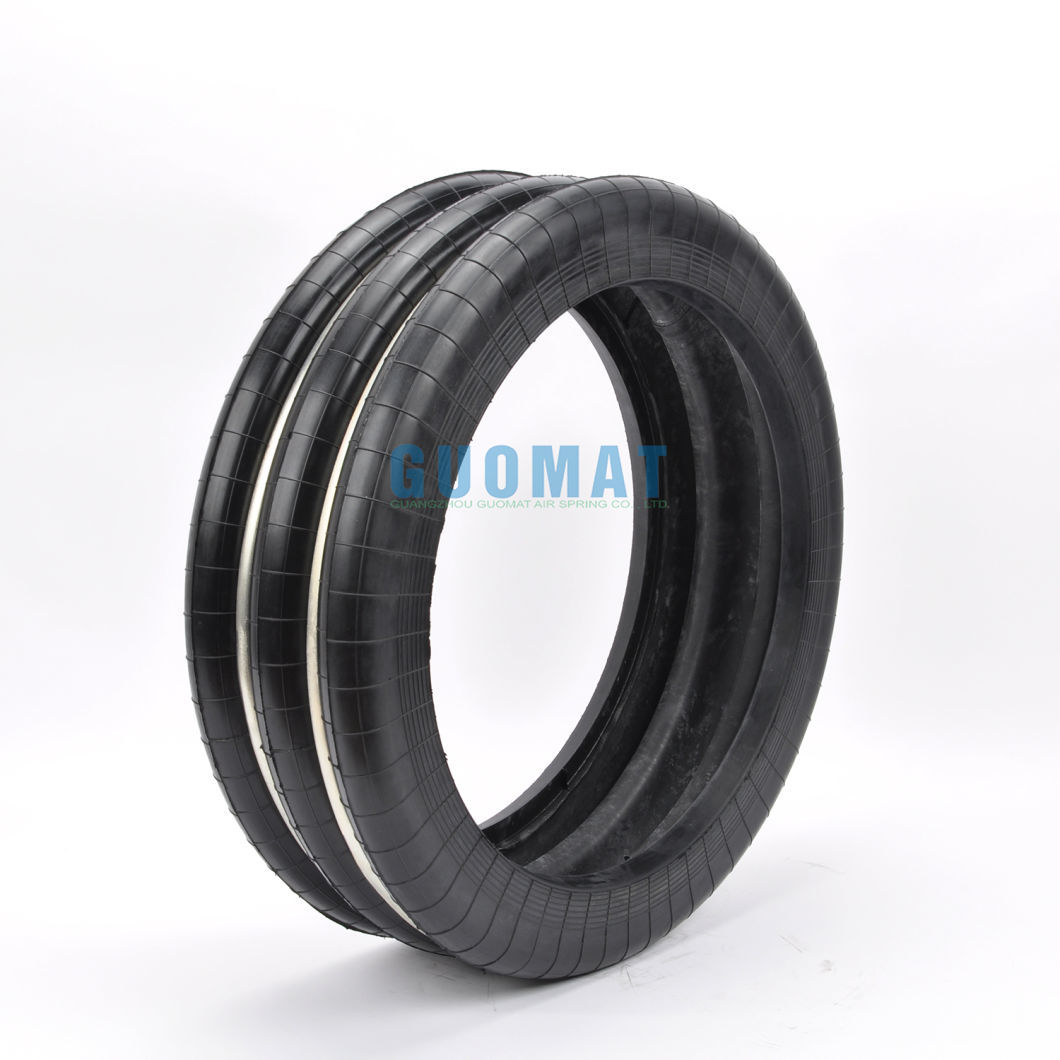

    Detailed Photos

    0.69MPa Triple Convoluted Airbag, Gas Rubber Suspension Spring Repair Kits0.69MPa Triple Convoluted Airbag, Gas Rubber Suspension Spring Repair Kits0.69MPa Triple Convoluted Airbag, Gas Rubber Suspension Spring Repair Kits0.69MPa Triple Convoluted Airbag, Gas Rubber Suspension Spring Repair Kits0.69MPa Triple Convoluted Airbag, Gas Rubber Suspension Spring Repair Kits0.69MPa Triple Convoluted Airbag, Gas Rubber Suspension Spring Repair Kits0.69MPa Triple Convoluted Airbag, Gas Rubber Suspension Spring Repair Kits
