1/4 NPTF Gas Single Type Goodyear Suspension Spring 1B9-202 For
Industrial Equipment
Product Details
| Item | Air Spring/Shock Absorber Spring/Air Bellows |
| Brand | Guomat/Neutral |
| Model Number | 1B9202 |
| Material | Rubber And Steel |
| Warranty | 1 Year |
| MOQ | 1 PCS If We Have Stock |
| Package | (1) Bubble Bag And Brown Carton (2) Customer Require Packaging (3) Normal Exported Package |
| Delivery Time | 2-8 Working Days |
| Payment | T/T, L/C, PayPal, Western Union |
| After Service | (1) Examination Before Shipment
(2) Follow Up The Customers' Feedback |
| Main products we sell | Air Spring,Convoluted Air Spring,Industrial Air Springs,Air
Suspension Spring,Air Compressor,Air Valve,Bus Rubber Bellows,Truck
& Trailer Air Bags,Cabin Air Shock,Electric Water Pump |
Cross Information
Goodyear 1B9-202
Goodyear 1B 9-202
Goodyear 1B9 202
Goodyear 578913201
Goodyear 578 91 3 201
Goodyear 578-91-3-201
Technical Data
Deflection(Height min):60mm
Deflection(Height max):160mm
Working stroke:100mm
Measurement d max:240mm
Top Cover Plate Diameter:160mm
Bottom Cover Plate Diameter:160mm
Air Inlet:1/4 NPTF
Screw Center Distance Of Top Cover Plate:89mm
Screw Center Distance Of Bottom Cover Plate:89mm
Screw And Gas Hole Distance Of Top Cover Plate:44.5mm
Top Cover Plate Screw (Nut) Tooth:2X3/8-16UNC
Bottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNC
Rubber Bellow MAX Diameter:240mm
The Working Stroke:128mm
Hot Selling Air Spring
FOR S-CANIA TRUCK
FOR V-OLVO TRUCK
FOR DAF TRUCK
FOR BPW TRUCK
FOR HENDRICKSON TRUCK
FOR SAF TRUCK
FOR FREIGHTLINER TRUCK
FOR MERCEDES-BNEZ TRUCK
FOR MAN TRUCK
FOR MERITOR TRUCK
Function of Air Springs in Lifts
Air springs play a crucial role in lifts by providing support,
stability, and adjustability. Here are the key functions of air
springs in lifts:
Load-Leveling: Air springs help to level the vehicle or lift
platform when it is carrying a heavy load. The extra weight of the
load can cause the back end of the vehicle to squat, which lightens
the front end and reduces contact between the front tires and the
road. Air springs can be inflated to compensate for this squatting
effect, ensuring that the vehicle remains level and stable .
Adjustability: Air springs are fully adjustable, allowing the user
to inflate or deflate them as needed. This adjustability enables
the user to fine-tune the lift's suspension to achieve the desired
level of support and comfort. For example, when carrying a heavy
load, the air springs can be inflated to provide additional support
and prevent sagging. Conversely, when the load is light, the air
springs can be deflated to provide a smoother ride .
Safety and Comfort: By maintaining the vehicle's height and
reducing trailer sway, air springs contribute to a safer and more
comfortable ride, especially when towing or carrying heavy loads.
They help to stabilize the vehicle, reduce roll and sway, and
improve overall handling .
Ride Quality: Air springs enhance the ride quality of lifts by
providing a cushioning effect. They absorb shocks and vibrations
from the road, resulting in a smoother and more comfortable ride
for both the vehicle occupants and the load being transported.

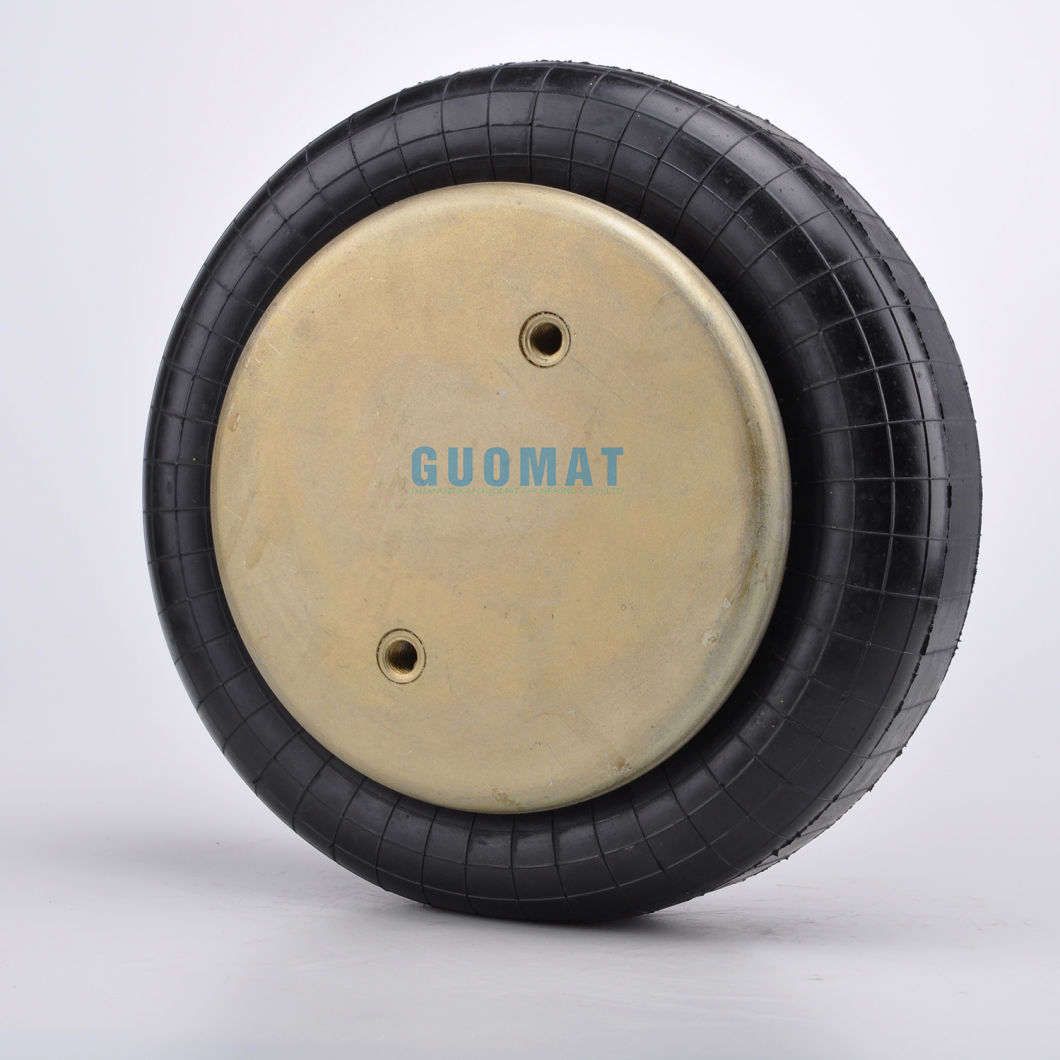

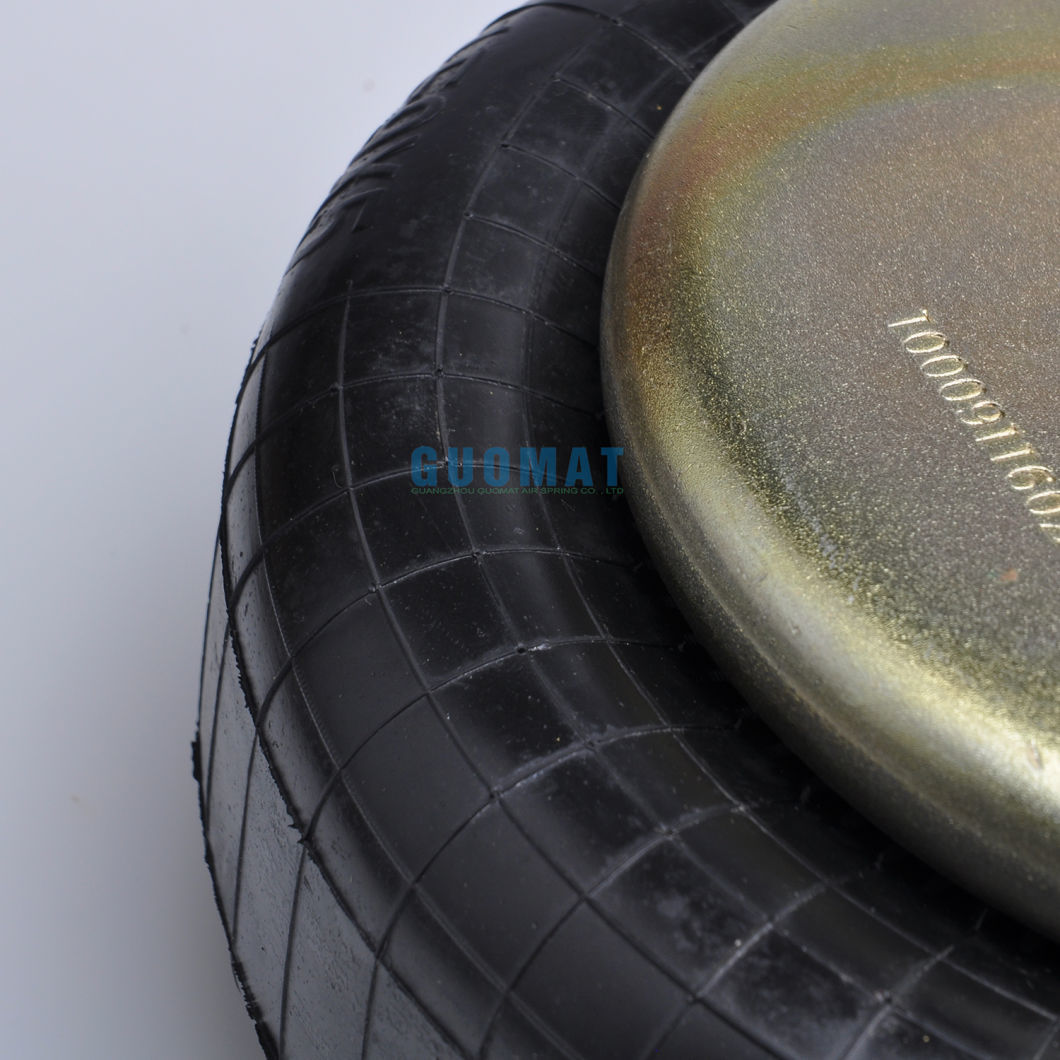

Product Images
