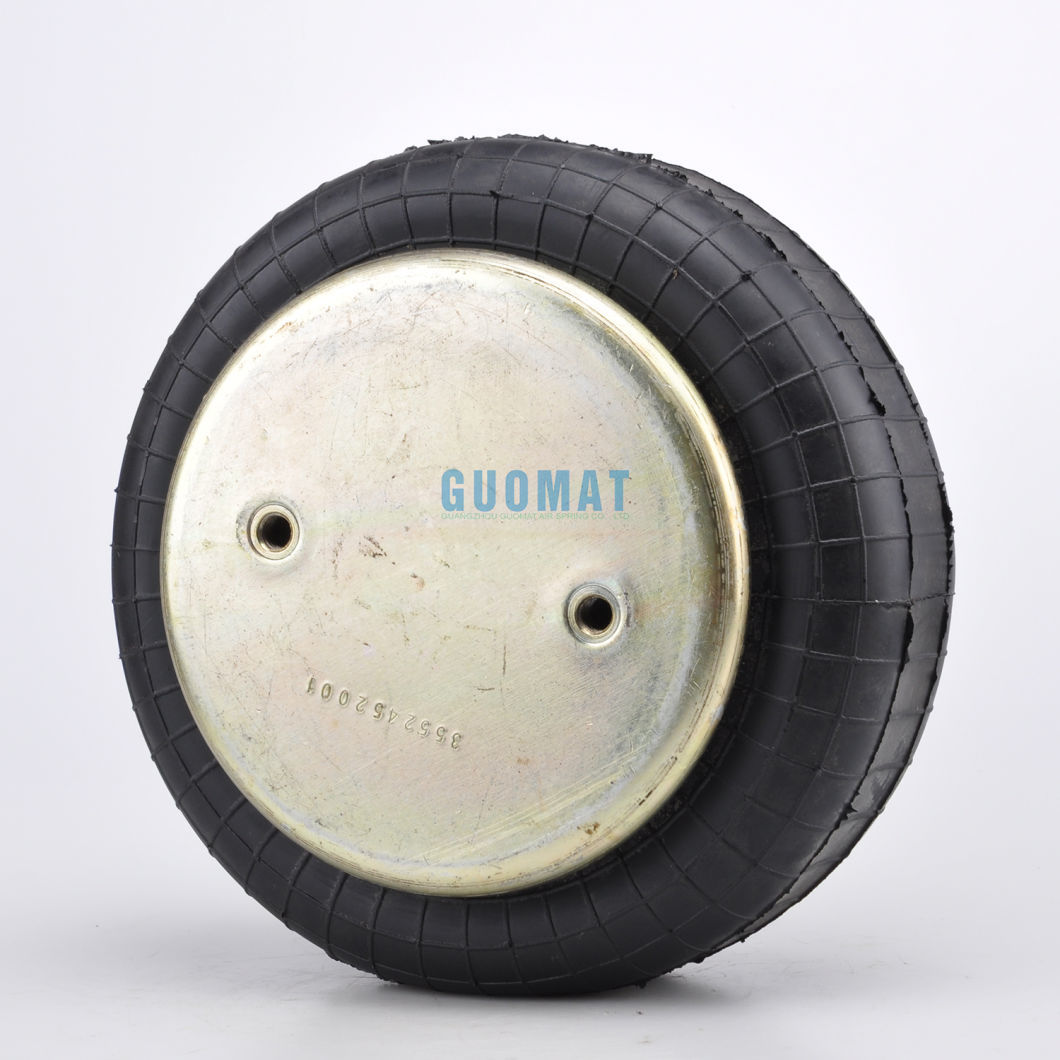

    1B9-202 Goodyear Air Suspension Industrial Air Spring OEM 578913201 Position Devices

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 1B9X5
    Certification : ISO/TS16949:2009
    Price : USD49.9-59.9/PC
    Payment Terms : L/C, T/T, Western Union Or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 3-7 Working Days
    • Product Details
    • Company Profile

    1B9-202 Goodyear Air Suspension Industrial Air Spring OEM 578913201 Position Devices

    1B9-202 Goodyear Air Suspension Industrial Air Spring OEM 578913201 Position devices

    OEM Original Equipment Manufacturer:


    Goodyear
    1B9-202 / 1B 9-202 / 1B9202
    578 91 3 201 / 578-91-3-201 / 578913201

    GUOMAT 1E9X5 Technical Parameters

    Nut / Blind Nut

    Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

    Screw Center Distance of Top Cover Plate : 89 mm

    Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

    Screw Center Distance of Bottom Cover Plate : 89 mm


    Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet : 1/4NPT

    Center Distance Between Nut and Air inlet: 44.5 mm


    Cover Plate

    Top Cover Plate Diameter (Width): 160 mm

    Bottom Cover Plate Diameter (Width): 160 mm


    Rubber Bellows

    Rubber Bellows Diameter : 222 mm

    Compressed Height: 100 mm / 4.1 inches

    Maximum Height: 160 mm

    Working Stroke : 60 mm


    Bumper block / Buffer block

    Without Bumper Block


    Girdle Hoop / Girdle Ring

    With Girdle Hoop :No of Girdle Hoop


    SPRING FEATURES

    LOAD RANGE(ISOLATOR)........

    .640-3900|b

    DESIGN HE I GHT RANGE( ISOLATOR)...4.5-5.0 in

    USEABLE STROKE w/o BUMPER (ACTUATOR)..3.0 in

    USEABLE STROKE WITH BUMPER(ACTUATOR).2.0 in

    ASSEMBLY WE I GHT

    FORCE TO COMPRESS AT 0 PS IG(APPROX)..20Ib

    NOM I NAL FREE STAND ING HT. AT 0 PSIG...5.7in


    ASSEMBLY NUMBERELASTOMERAIR FITTINGBUMPER INCLUDED
    1B9-202NAT. RUBBER1/4"-18 NPTF OFFSET 1.75"NO
    1B9-201NAT. RUBBER1/4"-18 NPTF OFFSET 1.75"YES
    1B9-204NAT. RUBBER1/2"-14 NPTF OFFSET 1.75"NO
    1B9-205NAT. RUBBER1/2"-14 NPTF OFFSET 1.75"YES
    1B9-207NAT. RUBBER3/4"-14 NPTF OFFSET 1.5"NO
    1B9-208NAT. RUBBER3/4"-14 NPTF OFFSET 1.5"YES
    578913201 FLEXMEMBER NAT. RUBBER ONLYNAT. RUBBER


    The drawing and data of GUOMAT 1B9X5 air spring:

    1b9-202 Goodyear Air Suspension Industrial Air Spring OEM 578913201 Position Devices



    1b9-202 Goodyear Air Suspension Industrial Air Spring OEM 578913201 Position Devices
    1b9-202 Goodyear Air Suspension Industrial Air Spring OEM 578913201 Position Devices
    1b9-202 Goodyear Air Suspension Industrial Air Spring OEM 578913201 Position Devices
