    Air Spring For Trucks Firestone W01M588966 Goodyear 1R14-703 Replacement Parts Air Spring Kit

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 1T8966
    Certification : ISO/TS16949:2009
    Price : USD79.9-99.9/PC
    Payment Terms : L/C, T/T, Western Union Or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 3-7 Working Days
    • Product Details
    • Company Profile

    Air Spring For Trucks Firestone W01M588966 Goodyear 1R14-703 Replacement Parts Air Spring Kit

    Air Spring For Trucks Fire-stone W01M588966 Goodyear 1R14-703 Replacement Parts Air Spring Kit

    Product Description
    GUOMAT NO. 1T8966
    Material: Rubber+Steel
    Warranty: 12 Months
    MOQ: 1pc
    For Car: Light Trucks, Trailers
    Refer Nomber

    FirestoneW01-M58-8966 / W01 M58 8966 / W01M588966
    1T66F-10.8
    Contitech881MB / 881 MB
    BPW36
    Goodyear1R14- 703 / 1R 14- 703 / 1R14703
    TaurusKR 836-05
    Dunlop FRD14B36
    Phoenix1DK 32-1
    Granning15917
    Airtech130 522
    3 881-01K
    Pirelli1TC 360-45
    WABCO951 814 712 0
    BPW05.429.40.08.1
    05.429.40.61.1
    05.429.41.36.1
    MeritorMLF7065


    Technical parameters of GUOMAT 1T8966 air spring
    ❶ Screw Bolt / Stud
    Top Cover Plate screw bolt / Stud Tooth :2 pcs M12X1.75
    Screw Center Distance of Top Cover Plate : 210 mm
    Distance Between Stud and Air Hole : 95 mm
    ❷ Gas Hole / Air inlet /Air Fitting
    Gas Hole / Air inlet : M22x1.5
    ❸ Cover Plate
    Top Cover Plate Diameter: Ø315 mm
    ❹Rubber Bellows
    Rubber Bellows Natural Diameter: 355 mm
    Rubber Bellows MAX Height : 810 mm
    Rubber Bellows MIN Height :300 mm
    Working stroke : 510mm
    ❺ Bumper block / Buffer block
    Bumper Block height :212 mm
    ❻ Bottom Piston
    Bottom Piston Diameter : Ø251mm
    Bottom Piston Height :212 mm
    ❼ Piston Bolt
    Piston Bolt Tooth : M16 X2.0
    About Us
    Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.

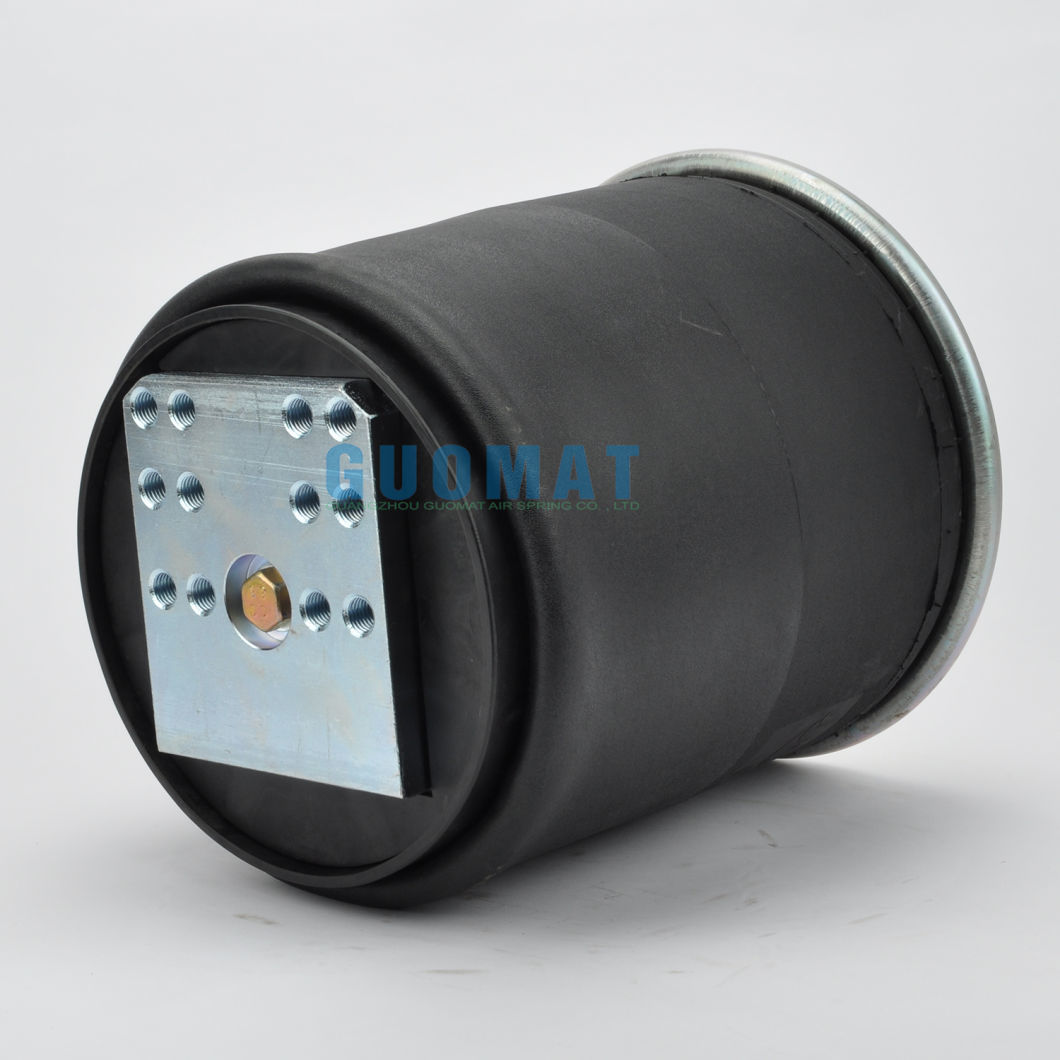

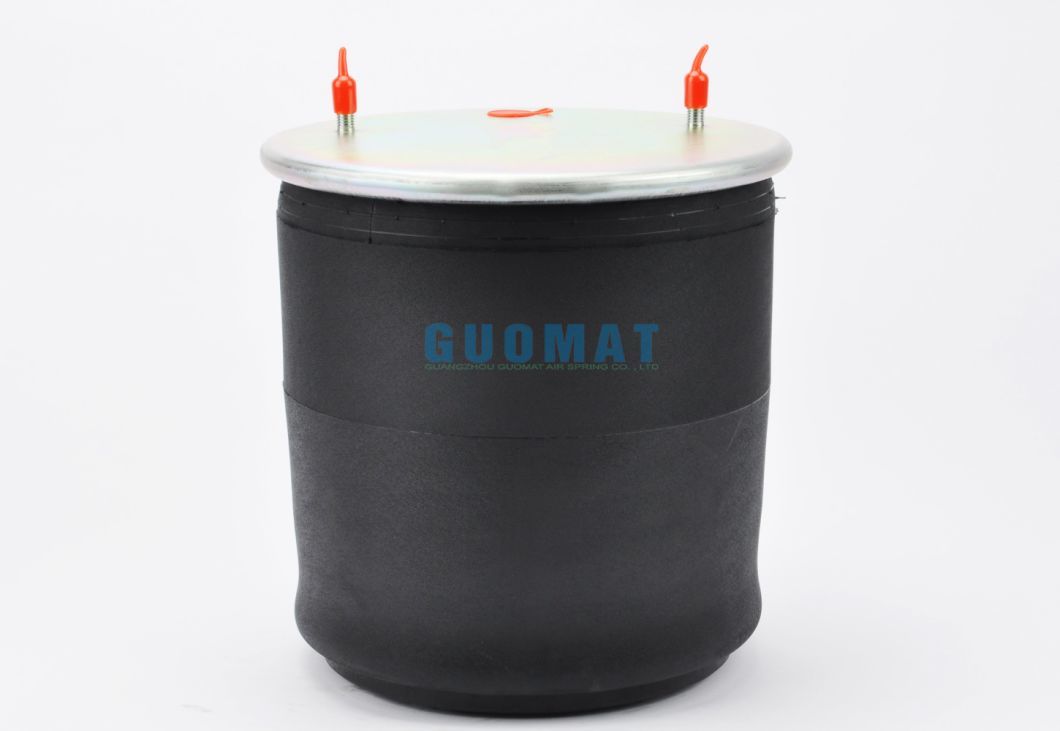

    Product Picture

    Air Spring for Trucks W01m588966 Goodyear 1r14-703 Replacement Parts Air Spring KitAir Spring for Trucks W01m588966 Goodyear 1r14-703 Replacement Parts Air Spring KitAir Spring for Trucks W01m588966 Goodyear 1r14-703 Replacement Parts Air Spring KitAir Spring for Trucks W01m588966 Goodyear 1r14-703 Replacement Parts Air Spring Kit
