W01-358-5311 Firestone Rolling Lobe Air Spring For Truck Air Suspension

GUANGZHOU GUOMAT AIR SPRING CO. , LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap W01-358-5311 Firestone Rolling Lobe Air Spring For Truck Air Suspension from wholesalers

    Buy cheap W01-358-5311 Firestone Rolling Lobe Air Spring For Truck Air Suspension from wholesalers
    • Buy cheap W01-358-5311 Firestone Rolling Lobe Air Spring For Truck Air Suspension from wholesalers
    • Buy cheap W01-358-5311 Firestone Rolling Lobe Air Spring For Truck Air Suspension from wholesalers
    • Buy cheap W01-358-5311 Firestone Rolling Lobe Air Spring For Truck Air Suspension from wholesalers
    • Buy cheap W01-358-5311 Firestone Rolling Lobe Air Spring For Truck Air Suspension from wholesalers
    • Buy cheap W01-358-5311 Firestone Rolling Lobe Air Spring For Truck Air Suspension from wholesalers
    • Buy cheap W01-358-5311 Firestone Rolling Lobe Air Spring For Truck Air Suspension from wholesalers

    W01-358-5311 Firestone Rolling Lobe Air Spring For Truck Air Suspension

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 1T5311
    Certification : ISO/TS16949:2009
    Price : USD79.9-99.9/PC
    Payment Terms : L/C, T/T, Western Union Or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 3-7 Working Days
    • Product Details
    • Company Profile

    W01-358-5311 Firestone Rolling Lobe Air Spring For Truck Air Suspension

    W01-358-5311 Firestone Rolling Lobe Air Spring For Truck Air Suspension

    Product Details

    ItemAir Spring/Shock Absorber Spring/Air Bellows
    BrandGUOMAT/Neutral
    MaterialRubber and Steel
    Warranty1 Year
    MOQ10 PCS If We Have Stock
    Package(1) Bubble Bag And Brown Carton
    (2) Customer Require Packaging
    (3) Normal Exported Package
    Delivery Time2-8 Working Days
    PaymentT/T, L/C, PayPal, Western Union
    After Service(1) Examination Before Shipment
    (2) Follow Up The Customers' Feedback
    Main products we sellAir Spring,Convoluted Air Spring,Industrial Air Springs,Air Suspension Spring,Air Compressor,Air Valve,Bus Rubber Bellows,Truck & Trailer Air Bags,Cabin Air Shock,Electric Water Pump


    OEM Number


    FIRESTONE W01-358-5311
    FIRESTONE W01 358 5311
    FIRESTONE W013585311
    FIRESTONE 1T14C-1 & 1T14F-2
    RIDE 1003585311C

    RIDE 100 358 5311C
    Note:Flxible 6-379-1

    GUOMAT 1T5311 Truck Air Spring Technical Data

    The Top Cover Plate Diameter: 160mm

    Gas Hole: 1/4NPT

    Combo Stud: 2X3/8-16UNC

    The Distance Between Combo Stud: 89mm

    The Distance Between Combo Stud and Gas Hole: 44mm

    Natural Height: 230mm

    Piston Width: 179mm

    Piston Height: 93mm

    How to Choose the Right Truck Air Suspension Spring


    1. Suspension Type: There are two main types of suspensions used in trucks: air ride and spring ride. Air ride suspensions use pressurized, expandable rubber or rubber-like bags to absorb road shocks and changing weights of the trailer loads. On the other hand, spring ride suspensions use steel or composite spring packs for the same purpose .


    2. Ride Quality: Air ride suspensions are known for providing a smoother and more comfortable ride compared to spring ride suspensions. They can automatically adapt to changing cargo loads and road shocks, keeping the floor mostly level and reducing vibration. However, personal preference and the specific application of the truck can also play a role in the decision-making process .


    3. Maintenance and Cost: Spring ride suspensions generally require less maintenance and have lower upfront costs compared to air ride suspensions. Air ride suspensions can be more complex and may require additional maintenance, such as checking for air bag cracking, dry rot, and leveling valve problems. It's important to consider the long-term maintenance costs when choosing the right suspension for your truck .


    4. Cargo Protection: Air ride suspensions are often preferred when hauling fragile loads, such as glass, as they provide better cushioning and reduce the risk of cargo damage.


    5. Driving Conditions: The choice of suspension may also depend on the driving conditions. Air ride suspensions are generally better suited for rough or uneven road surfaces, as they can provide a smoother ride and improved handling and stability. Spring ride suspensions may be more suitable for applications where ride quality is not a significant concern .

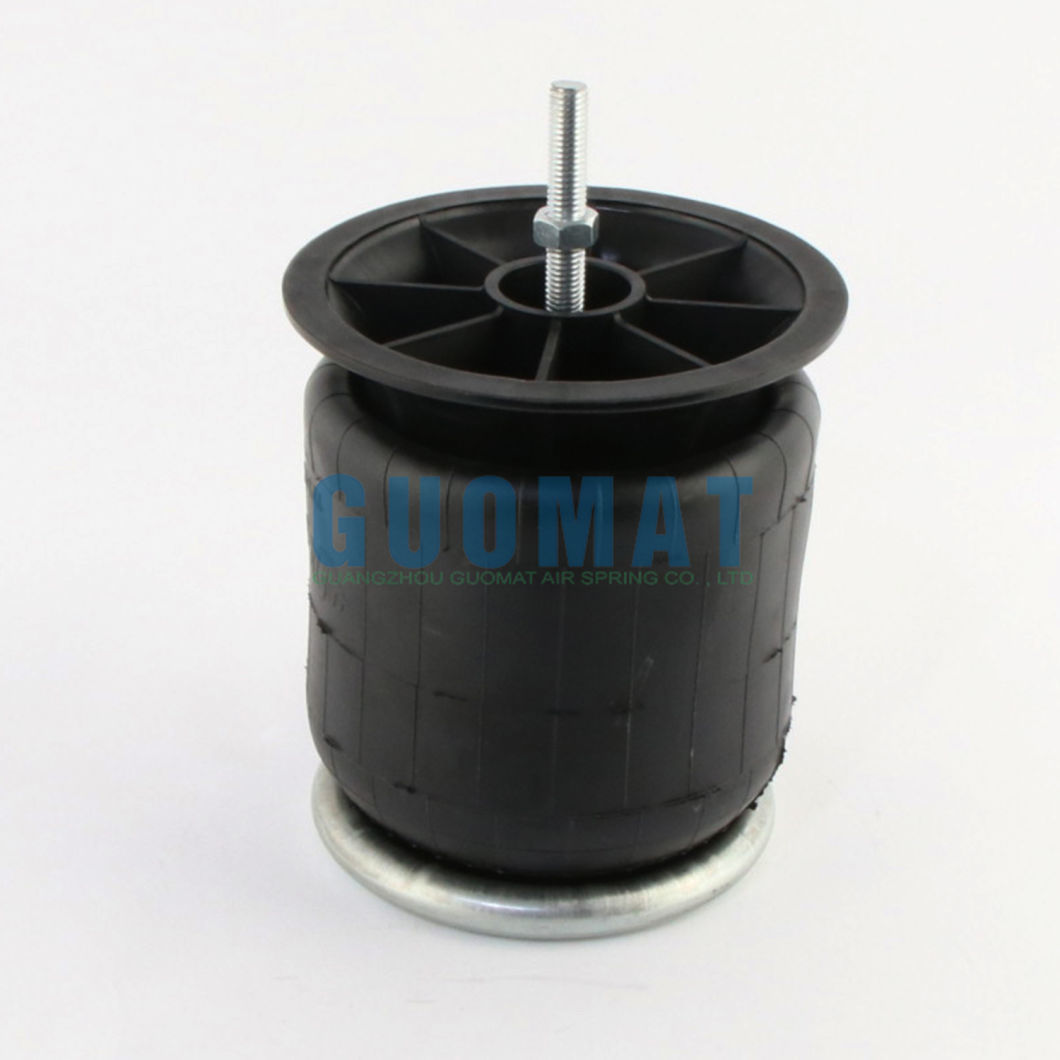

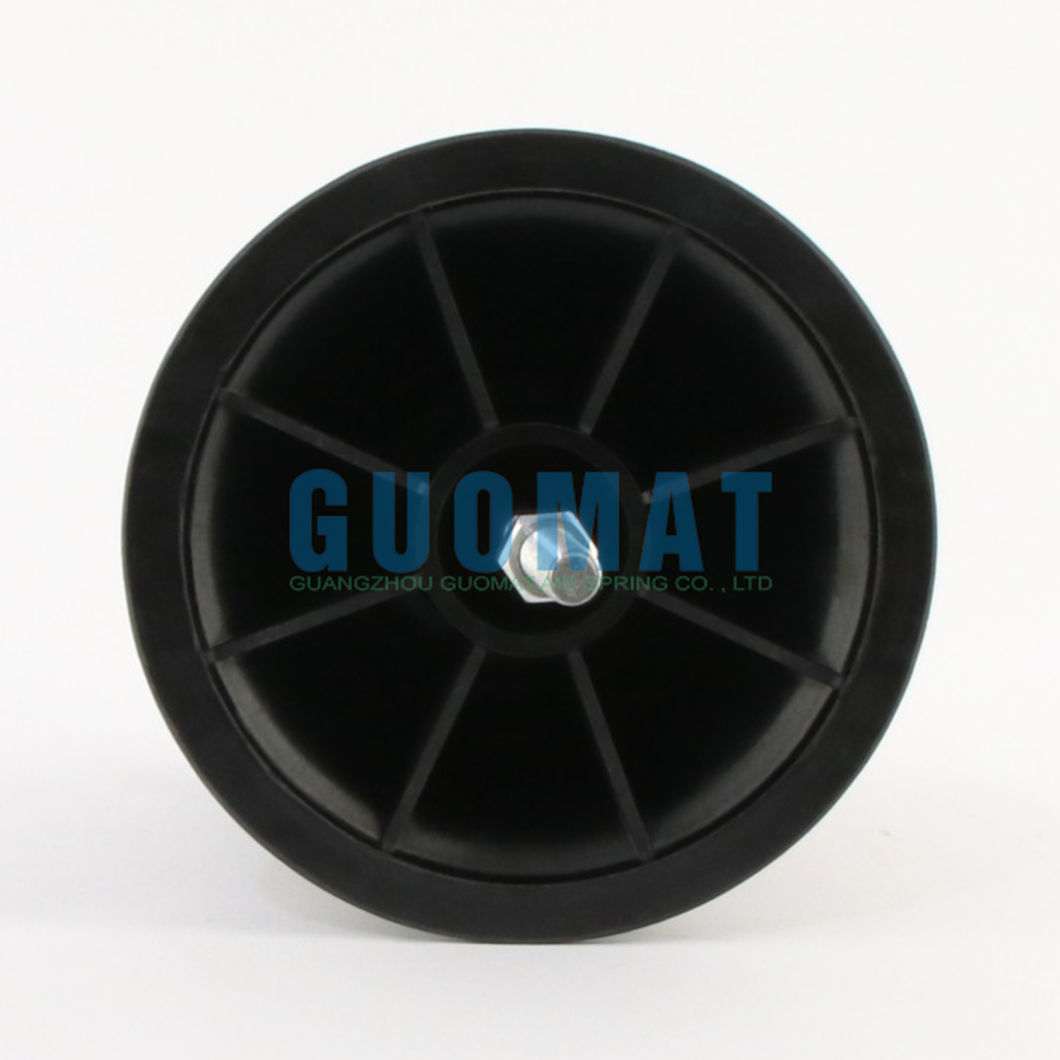

    Product Images
    W01-358-5311 Fire-Stone Rolling Lobe Air Spring for Truck Air SuspensionW01-358-5311 Fire-Stone Rolling Lobe Air Spring for Truck Air Suspension
