    Air Lift Airbag 3B12-304 Triple Convoluted Air Bellows Universal Pneumatic Spring

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 3B8030
    Certification : ISO/TS16949:2009
    Price : USD69.9-79.9/PC
    Payment Terms : L/C, T/T, Western Union Or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 3-7 Working Days
    • Product Details
    • Company Profile

    Air Lift Airbag 3B12-304 Triple Convoluted Air Bellows Universal Pneumatic Spring

    Air Lift Airbag 3B12-304 Triple Convoluted Air Bellows Universal Pneumatic Spring

    Product Description
    Product NameAir Suspension Parts
    Working Temperature-40ºC bis +70ºC

    Refer Numbers

    Fire-stone:W01-358-8030/38
    Contitech: FT 330-29 498
    Goodyear:3B12-304
    Triangle : 6334/4432
    Ridewell:1003588030C
    Failure Testing≥3 millions

    Technical data

    Top Cover Plate Diameter:231mm
    Bottom Cover Plate Diameter:231mm
    Rubber Bellows MAX Diameter:330mm
    The Working Stroke:MAX 460 mm to MIN 130 mm
    Screw Center Distance of Top Cover Plate:157mm
    Screw Center Distance of Bottom Cover Plate:157mm
    Screw And Gas Hole Distance of Top Cover Plate:73mm

    Notice

    These air suspension bags are aftermarket ones.They will replace the original air spring bags.

    ---Please double check the picture and drawing carefully before purchasing to ensure you will get the right struts.

    ---Instruction isn't included.Professional installation is recommended.

    ---Contact us please for whatever we can help

    About Air Spring
    Air springs come in various shapes and sizes including bellows, rolling lobe, and sleeve. Super-Cushion bellows and sleeve springs have strict design specifications and parameters during manufacturing ensuring a perfect fit for your truck or industrial air spring application.
    Air springs for your truck or trailer will offer a quiet, more cushioned ride resulting in greater comfort, peace of mind, and safety. Due to less vibration, truck and trailer suspension components will last longer while providing durability and improved protection from shock and vibration for the vehicle, passenger, and cargo.
    As many of you already know, when used with leveling sensors or valves, air springs can maintain consistent ride height regardless of the load applied. This results in less adjustment during every day activities such as keeping level with loading docks. Installation is also very universal and adding a Super-Cushion air bag will fit right in whenever you wish to add an axle.


    Benefits for the Truck and Trailer
    Reduces cab, truck body, and trailer damage
    Reduces need for electrical and other repairs and maintenance
    Reduces wear and tear on tires, axles, and transmissions
    Reduces vehicle and fleet downtime
    Extends life of truck and trailer
    Protects hinges, lights, rivets, and trailer hardware
    Provides greater comfort for the driver while decreasing fatigue

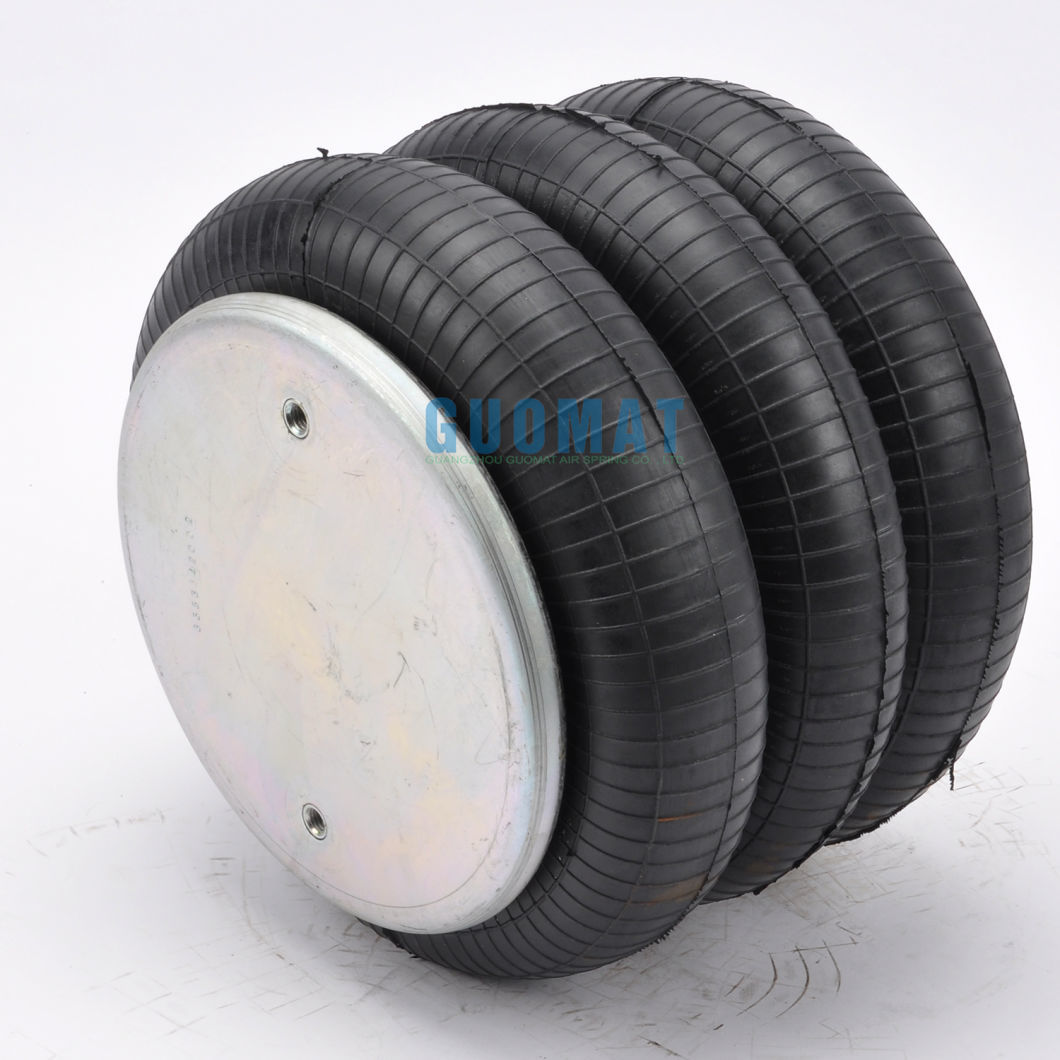

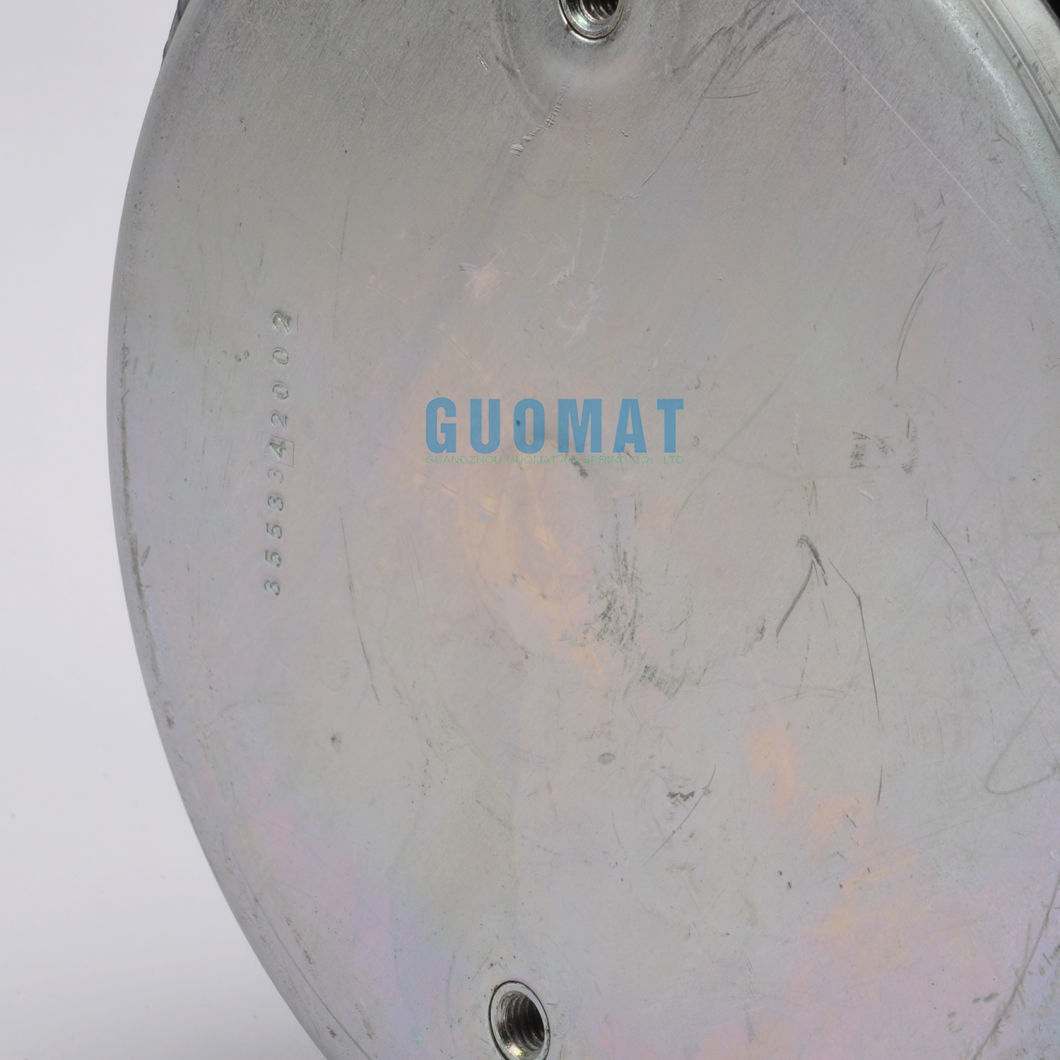

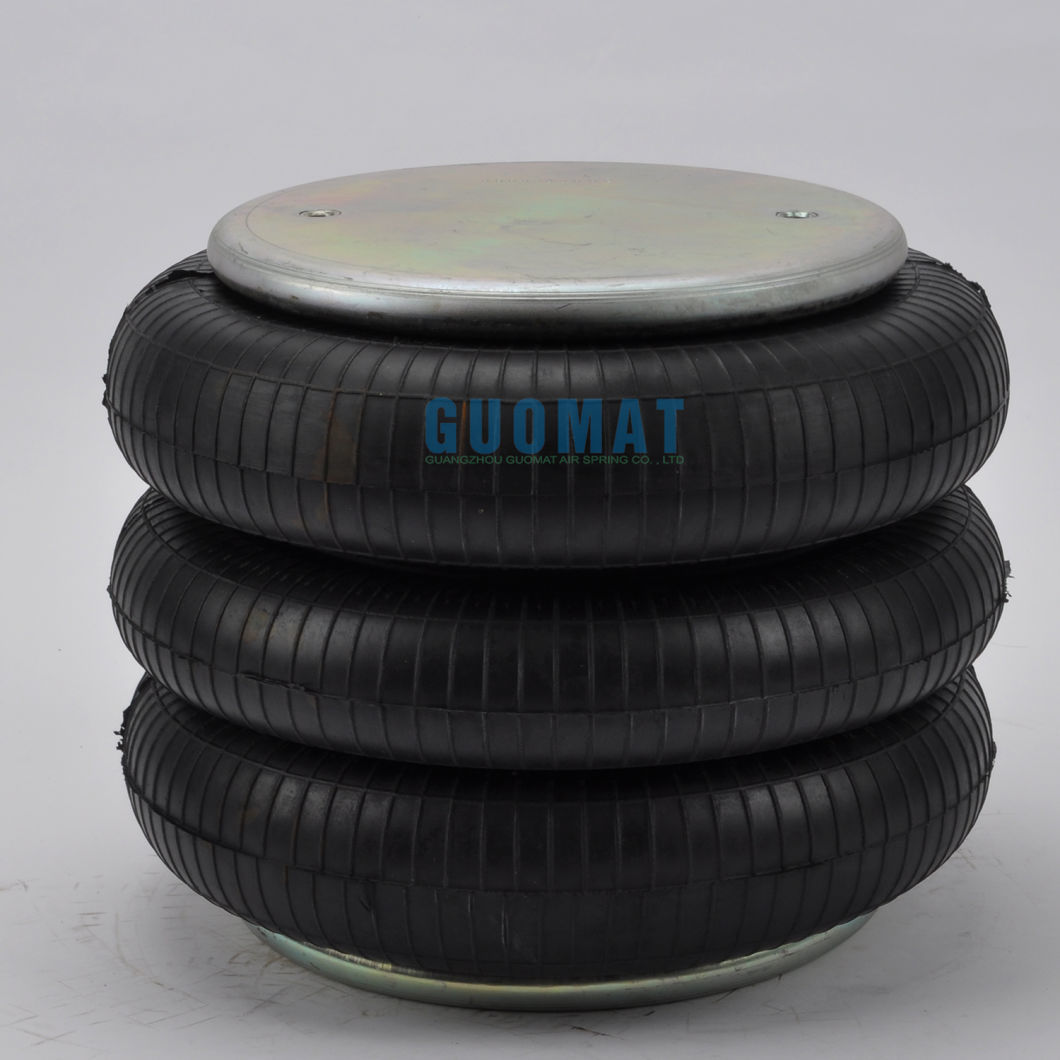

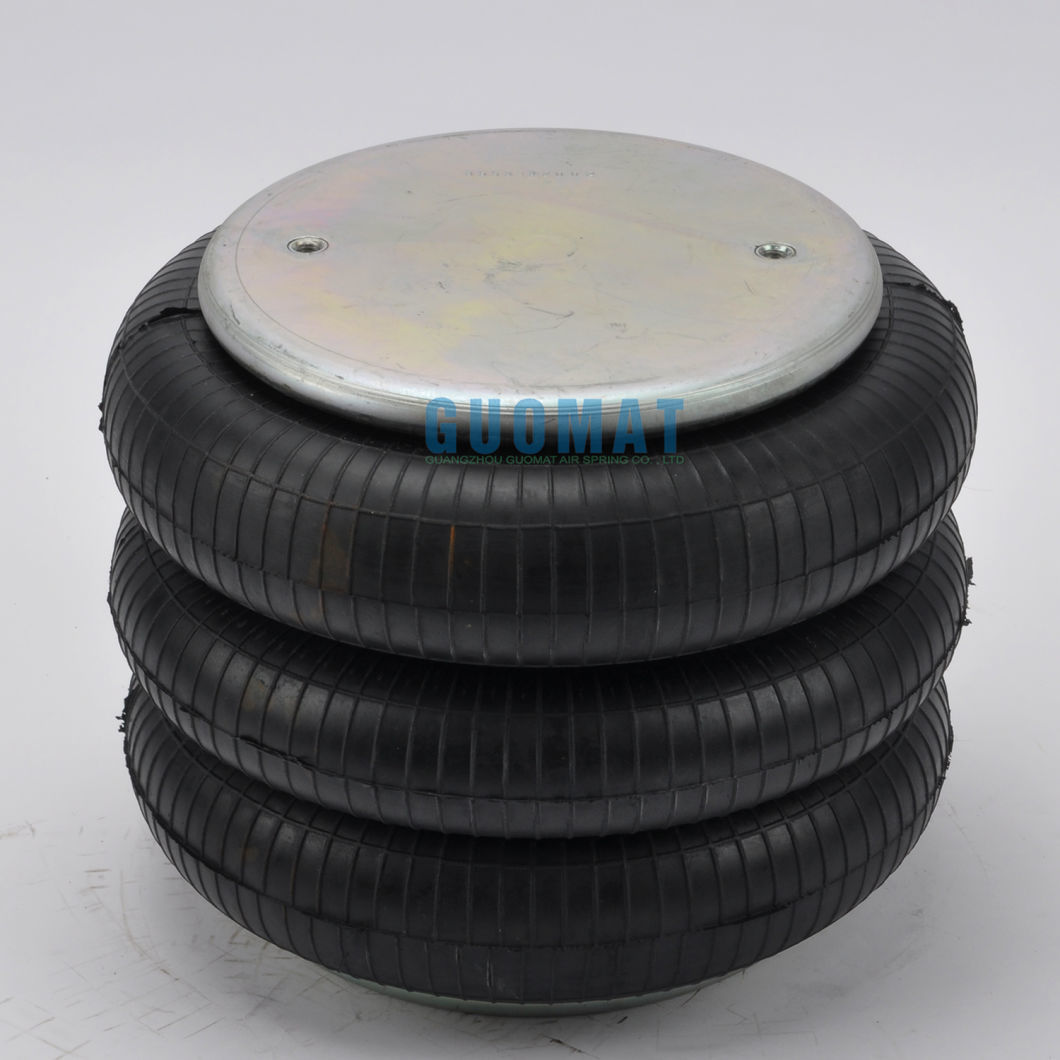

    Detailed Photos
    Air Lift Airbag 3b12-304 Triple Convoluted Air Bellows Universal Pneumatic Spring
    Air Lift Airbag 3b12-304 Triple Convoluted Air Bellows Universal Pneumatic Spring
    Air Lift Airbag 3b12-304 Triple Convoluted Air Bellows Universal Pneumatic Spring
    Air Lift Airbag 3b12-304 Triple Convoluted Air Bellows Universal Pneumatic Spring
    Air Lift Airbag 3b12-304 Triple Convoluted Air Bellows Universal Pneumatic Spring
    Air Lift Airbag 3b12-304 Triple Convoluted Air Bellows Universal Pneumatic Spring
    Air Lift Airbag 3b12-304 Triple Convoluted Air Bellows Universal Pneumatic Spring
    Air Lift Airbag 3b12-304 Triple Convoluted Air Bellows Universal Pneumatic Spring
    Air Lift Airbag 3b12-304 Triple Convoluted Air Bellows Universal Pneumatic Spring

    FAQ
    1. Q: How to order ?
    A: Step 1, please tell us what model and quantity you need;
    Step 2,then we will make a PI for you to confirm the order details;
    Step 3,when we confirmed everything ,you can arrange the payment;
    Step 4,finally we deliver the goods within the stipulated time.


    2. Q: When will make delivery ?
    A: Delivery time is 2-8woring days.

    3. After-sales service
    1 year warranty for all kinds of products;
    If you have any questions after receiving the goods,please feel free to contact me,as an experienced manufacturer ,you can rest assured of the quality and after-sales service.
    4. Payment
    T/T,Western Union,L/C

    5. Transportation
    Transportation by DHL,UPS,EMS,Fedex,Air freight,Sea freight.
