    Rear Goodyear 4023NP03 Contitech Truck Air Suspension Air Spring For Trailer W01-M58-6348

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 1T6348
    Certification : ISO/TS16949:2009
    Price : USD79.9-99.9/PC
    Payment Terms : L/C, T/T, Western Union Or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 3-7 Working Days
    • Product Details
    • Company Profile

    Rear Goodyear 4023NP03 Contitech Truck Air Suspension Air Spring For Trailer W01-M58-6348

    Rear Goodyear 4023NP03 Contitech Truck Air Suspension Air Spring For Trailer W01-M58-6348


    Product Description

    Product NameTruck Air Spring
    Fire stoneW01-M58-6348
    Contitech4023NP03
    Goodyear1R14-729
    Phoenix1D28A-10
    TaurusKR624-18
    Dunlop FRD13B26
    CF Gomma1T19E-2/204676
    AndrewH14-1358106
    SAF3.229.0031.00
    3.229.2231.00
    3.22902431.00
    3.229.2131.00

    Technical Data

    Top Cover Plate Diameter: 289mm

    Bolt/Stud: M12X1.5

    Air Inlet: M22X1.5

    Center Distance Between Screw and Air Hole: 95mm
    Center Distance Between Screws: 210mm

    Piston Width: 260mm

    Max.Height: 680mm

    Min.Height: 226mm

    Piston Height: 178mm

    Threaded Hole: M12X1.75


    OE Manufacturer

    SAF: 3.229.0031.00/3.229.2231.00/3.229.2431.00/3.229.2131.00


    Cross Reference

    Firestone: W01-358-6348 / W01 358 6348 / W013586348 / 1T19L-11

    Goodyear: 1R14-729 / 1R14729 / 566283547 / 566-28-3-547 / 566 28 3 547

    Phoenix: 1D28B-10 / 1 D 28 B-10

    Vibracoustic: V1D28B-10 / V 1 D 28 B-10 / V1D28B10

    Airtech: 130322 / 34023C

    Primeride: 54023AP03 / 54023 A P03


    How Do Air Springs Work?

    Air springs are load-carrying components used in various applications, including machines, automobiles, and buses. They are part of an air suspension system that provides suspension, isolation, or actuation. Here's how air springs work:

    Structure: An air spring consists of a rubber and fabric container, known as a bellows, that is filled with air. The bellows is designed to look like an automobile tire or multiple tires stacked on top of each other .

    Load Distribution: When a load is applied to the vehicle or machine, the air spring bellows compresses, and the air inside becomes pressurized. This pressurized air supports the weight of the load, distributing it evenly across the air spring .

    Height Maintenance: To maintain the vehicle's height when the load increases, check valves admit additional air from the air-supply tank into the bellows. This ensures that the vehicle remains at the desired height .

    Excess Air Venting: When the vehicle rises due to unloading, leveling valves vent excess air from the bellows. This prevents the vehicle from becoming too high and maintains proper suspension .

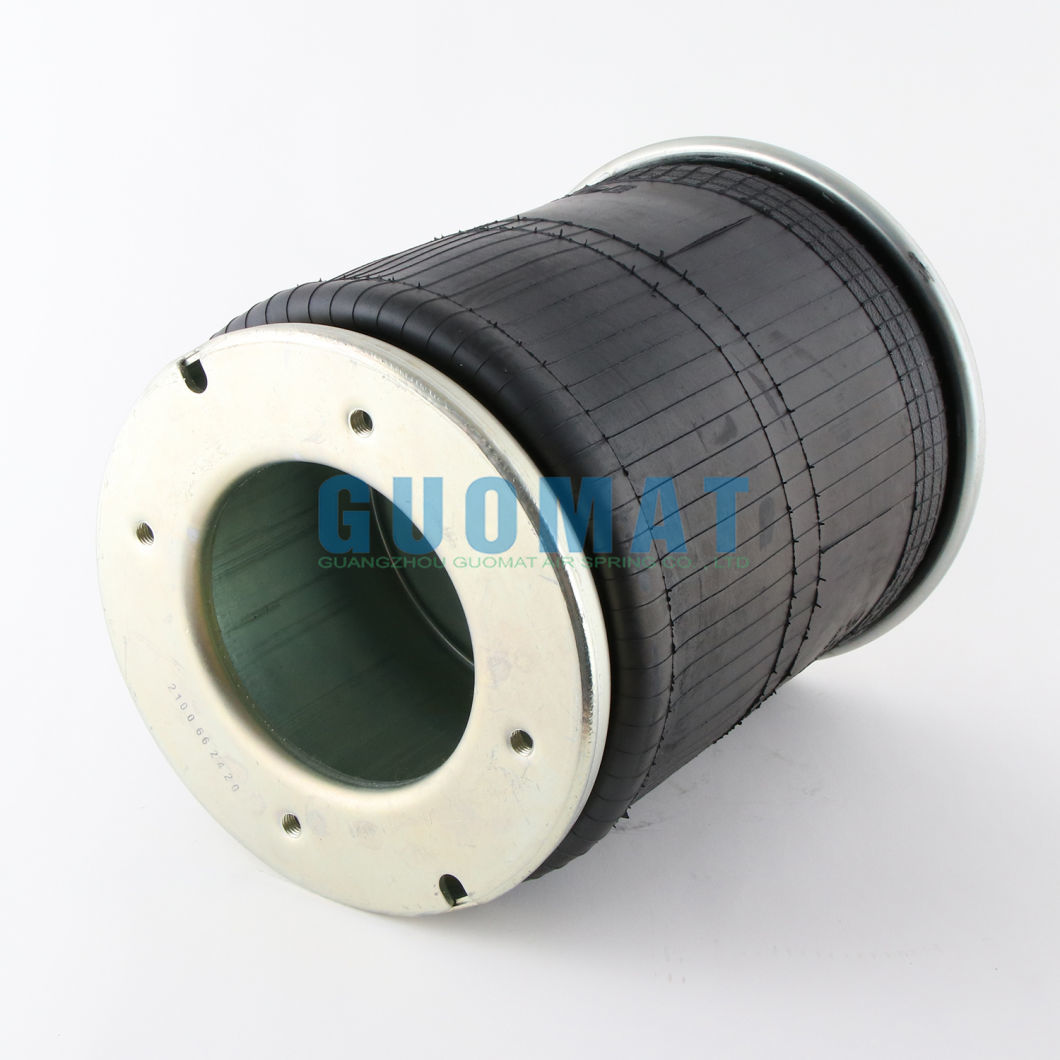

    Pictures of Details
    1r14-729 Goodyear 4023np03 Contitech Truck Air Suspension Air Spring for Trailer1r14-729 Goodyear 4023np03 Contitech Truck Air Suspension Air Spring for Trailer
