Firestone W01-358-9200 Rolling Lobe Air Spring 1T19L-5 Truck Air
Suspension Replacement
Product Details
Item | Rolling Lobe Air Bellow Spring |
Material | Rubber+Steel+Aluminum |
Warranty | 12 Months |
Condition | Brand New |
| Application | Truck SAF |
Function | Reduce Vibration |
Color | Black |
Delivery Time | 2-8 working days |
| Fire-stone | W01-358-9200 |
| Fire-stone | W01 358 9200 |
| Fire-stone | w013589200 |
| Triangle | 8459 |
| Triangle | 6363 |
Top Cover Plate Diameter : 289mm
Threaded Hole Distance of Top Cover Plate : 159mm
Air Inlet : M22x1.5
Stud : 4xM12x1.75
Bottom Piston Diameter : 300mm
Bottom Piston Height : 95 mm
Air Spring Introduction
Air springs have been used in heavy duty vehicle suspension systems
for nearly a century, where they have been able to provide
usefulness by taking advantage of the compressed air required for
vehicle braking systems. Air springs have provided a two-fold
advantage over mechanical leaf- or coil-springs. One advantage with
air suspension is the extra comfort provided by being able to vary
the air pressure inside the spring, which changes the spring rate,
and therefore, ride quality. Additionally, because variable control
over air pressure adjusts the deck or trailer height, aligning
loading docks to the level of the deck is possible when dock plates
are unavailable.
1T9200 Truck Air Suspension Spring Cross Reference Numbers
FIRESTONE Part Number: W01-358-9200
FIRESTONE Part Number: W01 358 9200
FIRESTONE Part Number: W013589200
FIRESTONE Bellows Number: 1T19L-5
FIRESTONE Bellows Number: 1T19F-5
GOODYEAR Part Number: 1R14-038
GOODYEAR Part Number: 1R 14-038
GOODYEAR Bellows Number: 566-28-3-015
GOODYEAR Bellows Number: 566283015
GOODYEAR Bellows Number: 566 28 3 015
Hendrickson Trailer Number:S-3839
Ridewell Number:1003589200C
Triangle Part Number:8415
Triangle Bellows Number:6367
Truck Suspension Air Spring
Truck suspension air springs, also known as airbags or bladders,
are components of air suspension systems that replace traditional
steel springs or leaf springs in heavy-duty trucks and vehicles.
These air springs are made from rubber bellows with metal plates on
the top and bottom for mounting to the vehicle.
The purpose of air suspension is to provide a smooth, constant ride
quality, as well as the ability to adjust the vehicle's ride
height. When air pressure is supplied to the air springs, the
suspension can be adjusted up or down, raising or lowering the
vehicle.
Air suspension systems in trucks and vehicles are powered by an
electric pump or compressor that pumps air into the flexible
bellows of the air spring. These bellows are usually made of
textile-reinforced rubber material.
Air suspension systems offer a variety of benefits to drivers of
large trucks and heavy-duty vehicles. They offer adjustable
suspension that adapts to changing cargo loads and road shocks for
a consistently smooth ride. Air suspension is known to produce less
vibration than traditional spring suspension, thus reducing vehicle
maintenance costs.
In addition to their functional benefits, air suspension systems
are becoming increasingly popular in custom car culture, including
street rods, trucks, cars, and motorcycles. They allow the vehicle
to sit extremely low for aesthetic purposes while still being able
to rise high enough to negotiate obstacles and bumps in the road.

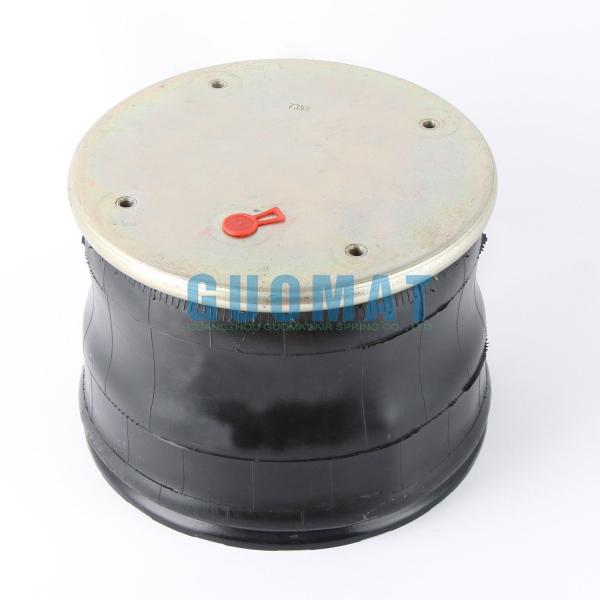

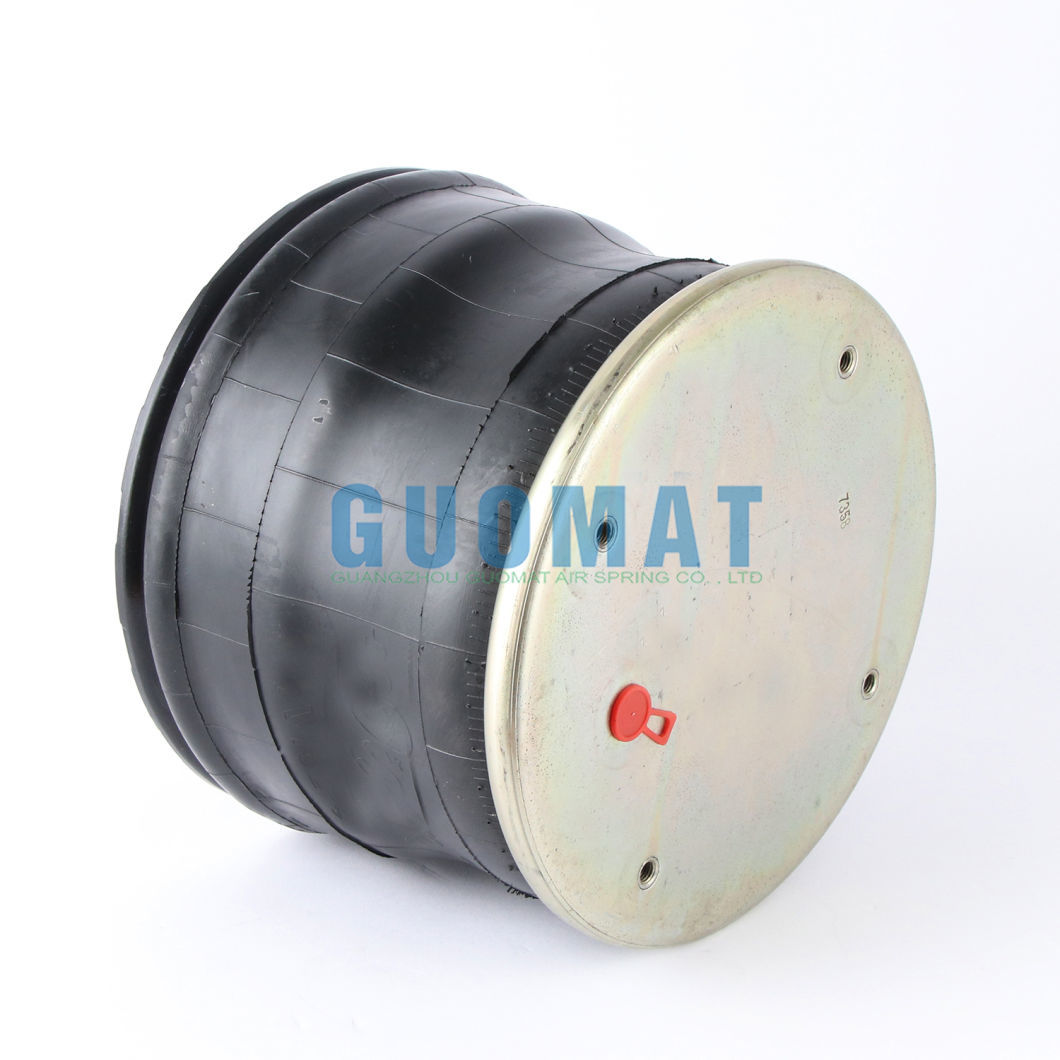

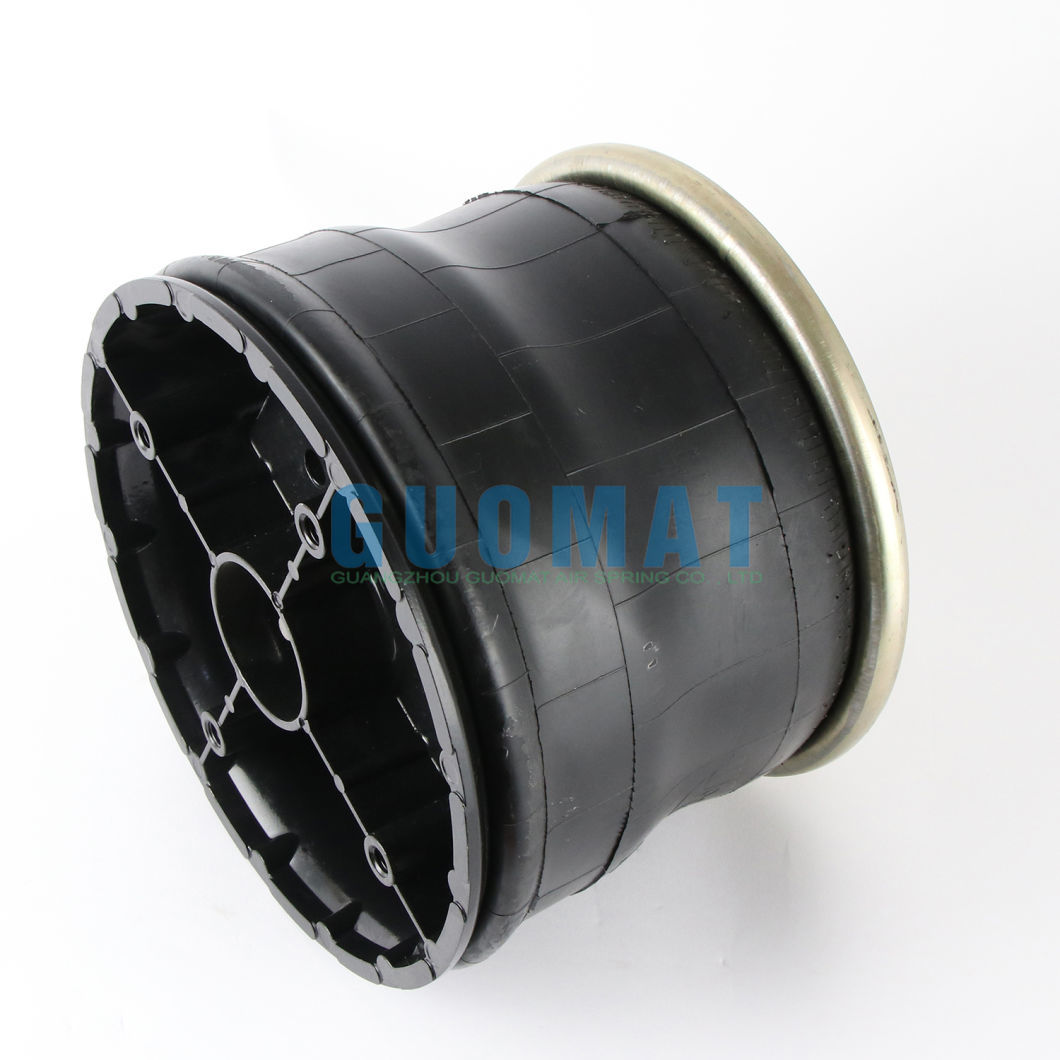

Product Images
