1B5-520 Goodyear Rubber Air Suspension Spring 1.8'-5.8' Air Bag Double Convoluted

Product Description

GUOMAT NO.: 1B5520

GOODYEAR NO.: 1B5-520

GOODYEAR NO.: 1B5 520

GOODYEAR NO.: 1B5520

ENIDINE NPO.: YI-1B5-520

ENIDINE NPO.: YI 1B5 520

ENIDINE NPO.: YI1B5520

ENIDINE NPO.: yi-1b5-520

1B5-520 Air Spring Features

Load Range (Isolator): 190-1500ib

Design Height Range (Isolator): 3.5-5.0 in

Useable Stroke (Actuator): 3.0 in

Assembly Weight: 1.4 Ib

Force to Compress At 0 PSIG(Approx.) 40 Ib

Nominal Free Standing HT.At 0 PSIG: 4.3 in

Technical Data

Top Technical Data

Threade hole: 3/8''-16 UNC-2Bx5/8‘’ Deep

Air hole: 1/4'' or 3/4''

Center distance between threaded holes: 1.75''

Side Technical Data

The rubber bellow max outer diameter: 6.5'' at 100 PSIG

Top cover plate diameter: 3.4'

Bottom cover plate diameter: 3.4'

Max extended height : 5.8''

Compressed height: 1.8''

Bottom Technical Data

Threade hole: 3/8''-16 UNC-2Bx5/8‘’ Deep

Center distance between threaded holes: 1.75''

Constant Pressure Characteristics

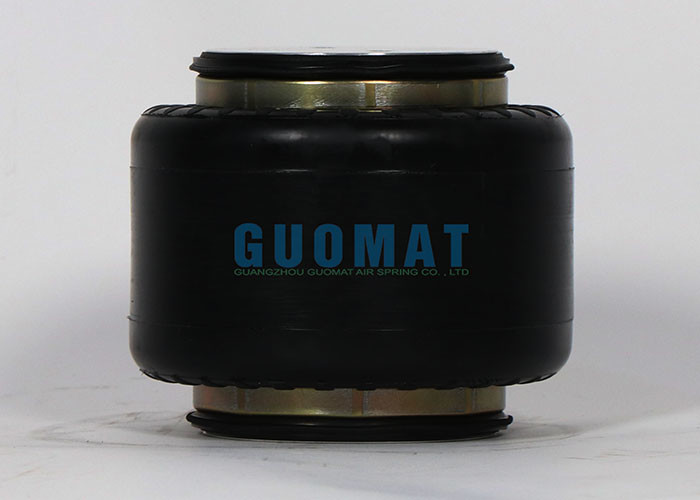

The Real Pictures
