W01-M58-6317 Firestone Suspension Rubber Bellows 1R11-773 Goodyear Truck Rolling Lobe Air Spring

Product Details

Air Spring Type: T Reversible Sleeve

Brand: GUOMAT

Model Number: 1T6317

Grade Type: Heave Duty

MOQ: 1PC

Warranty: 1 Year

Material: Natural Rubber

Position: Front/Rear

Applition: Air Suspension

OEM Number

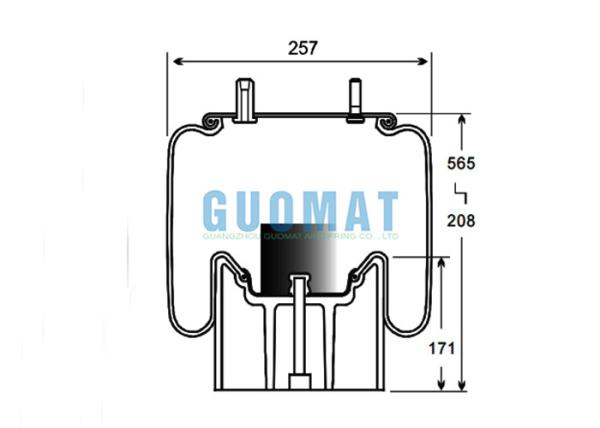

Technical Data

Top cover plate diameter is 231mm

The diameter of the top cover is 231mm
Air connection specification is M20X1.5
The specification of the combo stud is M12X1.5
The center distance between the air hole and the combo stud is 157mm
Base width is 240mm
Base height is 171mm
The threaded hole specification of the base is M12X1.75
Natural outer diameter: 257mm
Maximum height: 565mm
Minimum height: 208mm

1T15MPW-7 Firestone Rubber Bellow

Rubber Bellow Number 1T15MPW-7,Firestone Number W01-M58-6260,Hendrickson Truck 59053-2

Rubber Bellow Number 1T15MPW-7,Firestone Number W01-M58-6217,Holland (Neway) 90557233

Rubber Bellow Number 1T15MPW-7,Firestone Number W01-358-6231,Arvin Meritor 21227742FS/FS230

Rubber Bellow Number 1T15MPW-7,Firestone Number W01-M58-6262,Hendrickson Truck Arvin Meritor 21227742 FS25

Rubber Bellow Number 1T15MPW-7,Firestone Number W01-358-8903,Holland (Neway) 905572169(Advance Mixer)

About Our Services
1. We will reply to your inquiry within 24 hours
2. Actively answer your questions
3. We will verify the model number with you before purchasing to avoid errors.
4. After receiving your payment, we will arrange delivery immediately
5. Once we have the tracking number, we will provide it to you

W01-M58-6317 Firestone Specifications

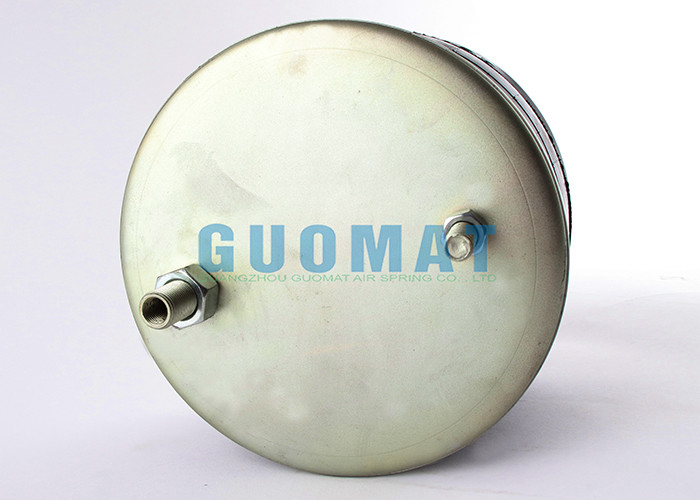

The Real Picture
