Truck Trailer Suspension Air Pillow W01-M58-8472 Firestone VOL-VO Air Ride Spring 20427800

GUANGZHOU GUOMAT AIR SPRING CO. , LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Truck Trailer Suspension Air Pillow W01-M58-8472 Firestone VOL-VO Air Ride Spring 20427800 from wholesalers

    Buy cheap Truck Trailer Suspension Air Pillow W01-M58-8472 Firestone VOL-VO Air Ride Spring 20427800 from wholesalers
    • Buy cheap Truck Trailer Suspension Air Pillow W01-M58-8472 Firestone VOL-VO Air Ride Spring 20427800 from wholesalers
    • Buy cheap Truck Trailer Suspension Air Pillow W01-M58-8472 Firestone VOL-VO Air Ride Spring 20427800 from wholesalers
    • Buy cheap Truck Trailer Suspension Air Pillow W01-M58-8472 Firestone VOL-VO Air Ride Spring 20427800 from wholesalers
    • Buy cheap Truck Trailer Suspension Air Pillow W01-M58-8472 Firestone VOL-VO Air Ride Spring 20427800 from wholesalers

    Truck Trailer Suspension Air Pillow W01-M58-8472 Firestone VOL-VO Air Ride Spring 20427800

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 1T8472
    Certification : ISO/TS16949:2009
    Price : $89.9-99.9/pc
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 work days
    • Product Details
    • Company Profile

    Truck Trailer Suspension Air Pillow W01-M58-8472 Firestone VOL-VO Air Ride Spring 20427800

    Truck/Trailer Suspension Air Pillow W01-M58-8472 Firestone VOL-VO Air Ride Spring 20427800


    Product Description


    The Firestone truck air spring with the part number W01-M58-8472 is a high-quality air spring used in trucks and trailers. It is compatible with various truck models and is designed to provide suspension support and shock absorption.


    Cross Reference Number:

    Firestone Part Number # W01-M58-8472

    Firestone Part Number # W01M588472

    Firestone Part Number # W01 M58 8472

    Contitech Part Number # 6605NP01

    Contitech Part Number # 6605 NP 01

    Contitech Part Number # 6605 NP01

    Goodyear Part Number # 1R11-805

    Goodyear Part Number # 1R11 805

    Goodyear Part Number # 1R 11-805

    Phoenix Part Number # 1DF20D-1

    Phoenix Part Number # 1 DF 20D-1

    Dunlop FR Part Number # D11B42


    ManufacturerPart NumberManufacturerPart Number
    Airtech37803KAirfren20.6605.1CM
    DT2.62176Templin04.060.6106.991
    Granning93914WABCO9518110050
    MeritorMLF7154VOL-VO20427800
    VOL-VO20427803VOL-VO20456150
    VOL-VO20531984VOL-VO20582206
    VOL-VO3171692--

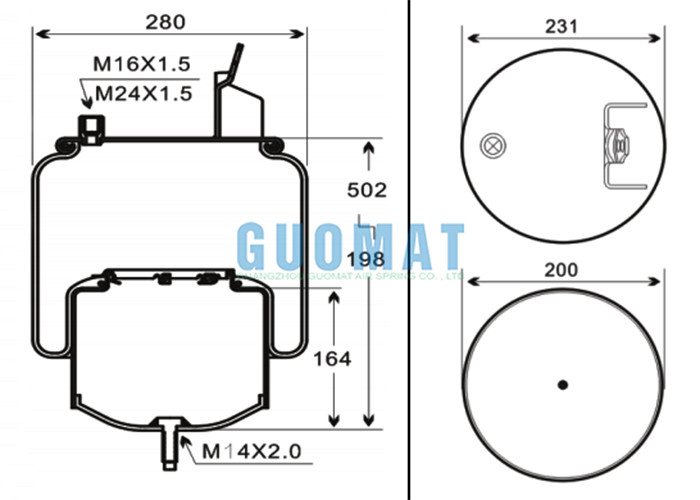

    GUOMAT 1T8472 Detailed Technical Parameters
    Top cover diameter: 231mm
    Base diameter: 200mm
    Combination column of top cover: M16X1.5/M24X1.5
    Base bolt: M14X2.0
    Natural outer diameter: 280mm
    Maximum height: 502mm
    Minimum height: 198mm
    Piston height: 164mm


    Installing Air Springs in VOL-VO Trucks

    Prepare the vehicle: Before working on the vehicle, set the parking brakes, place the transmission in neutral, and block the wheels to prevent unexpected vehicle movement .

    Remove the old air springs:

    Remove the retaining clip from the bottom stud of the air spring .
    Unscrew the air spring from the bottom of the cab .
    Install the new air springs:

    Install the spring plate on top of the new air spring .
    Screw the new air spring into the bottom of the cab .
    For the VN780 vehicle, place the bottom stud through the cab suspension crossmember and install a new retaining clip over the stud .
    Apply pipe sealer to the fitting and install the air fitting in the bottom of the air spring .
    Complete the installation:

    Install the air line and start the truck to allow the air system to refill .
    Remove the bottle jack and the cab supports .
    Check for air leaks .
