4.5X1/4 1/2" x 1 DUNLOP Plate Industrial Rubber Bellows SP2334 Air Help Spring

Product Description

The Dunlop Air Spring is a type of air suspension component commonly used in various applications, such as automotive and industrial equipment.

Air Spring Cross Reference:

• Firestone OEM Number: W01R584050/W01 R58 4050/W01-R58-4050
• Contitech OEM Number: FS44-5/FS 44-5/FS44-5 DI/FS 44-5 DI/FS44-5DI
• Dunlop OEM Number: 4 1/2''x1/41/2''x1/4.5x1/4.5X1
• Dunlop OEM Number: SP2334/SP 2334
• Norgren OEM Number: PM/31041 / PM31041 / PM 31041
• Parker OEM Number: 9109400

Features:
Air Chamber: The Dunlop Air Spring consists of an air chamber that can be pressurized with air to provide load support and suspension damping.
Rubber Construction: The air spring is typically made of high-quality rubber material that is resistant to wear, tear, and corrosion.

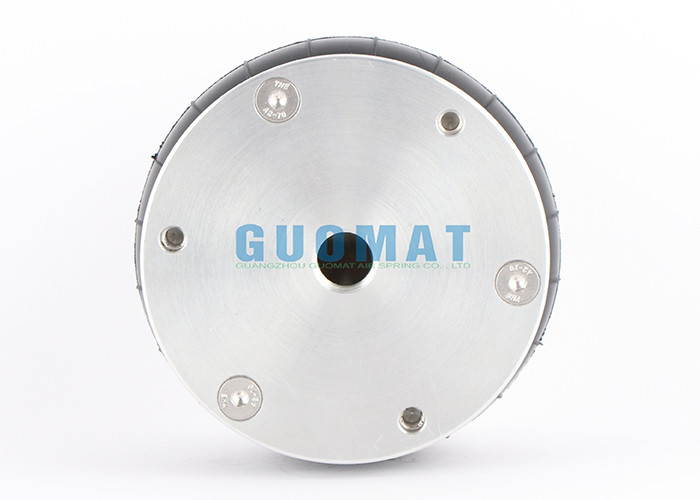

Mounting Plates: The air spring is equipped with mounting plates on both ends, allowing it to be securely attached to the vehicle or equipment.
Internal Piston: Inside the air spring, there is an internal piston that separates the air chamber from the surrounding hydraulic fluid. This piston helps maintain proper pressure and control damping characteristics.
Adjustable Pressure: The air spring's pressure can be adjusted to suit different load requirements, allowing for customization and improved ride comfort.
Load Capacity: The Dunlop Air Spring is designed to support varying loads, providing stability and improved handling under different conditions.
Durability: The air spring is engineered to withstand heavy-duty usage and is designed to have a long service life.

GUOMAT 4.5X1 Cross Dunlop 4 1/2''x1 Technical Data

Dunlop 4 ½" x 1 Technical Data

Maximum Diameter 125mm
Space Required 140mm
Minimum Height 45mm
Maximum Height 90mm
Total Stroke 45mm
Static Height 65mm
Effective Area at Static Height 65cm2
Bellows Weight 0.75kg

Maximum Working Pressure 8bar
Burst Pressure 50bar
Maximum Angle between
Top & Bottom Plates 15°
Maximum Axial Offset 10mm
