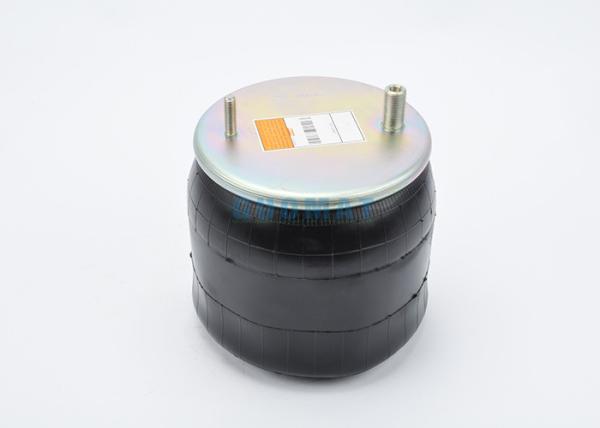

Truck Air Springs GOODYEAR 1R11-106 4157 NP 05 R.O.R./ MERITOR 21222442 D 12 B17

GUOMAT 1T4157NP05 Technical parameters

❶ screw bolt / Stud

Top Cover Plate screw bolt / Stud Tooth : 2 pcs X M12X1.75

Center Distance Between Two Studs : 157.5 mm

❷ Combined link rod / Combo Stud

Gas Hole / Air inlet : M12x1,5.

Combo Stud Tooth :M22x1,5

❸ Cover Plate

Top Cover Plate Diameter: Ø227 mm

❹Rubber Bellows

Rubber Bellows Natural Diameter: 300 mm

Rubber Bellows MAX Height : 565 mm

Rubber Bellows MIN Height : 208 mm

Working Stroke : 357 mm

❺ Bumper block / Buffer block

Bumper Block Height : 97mm

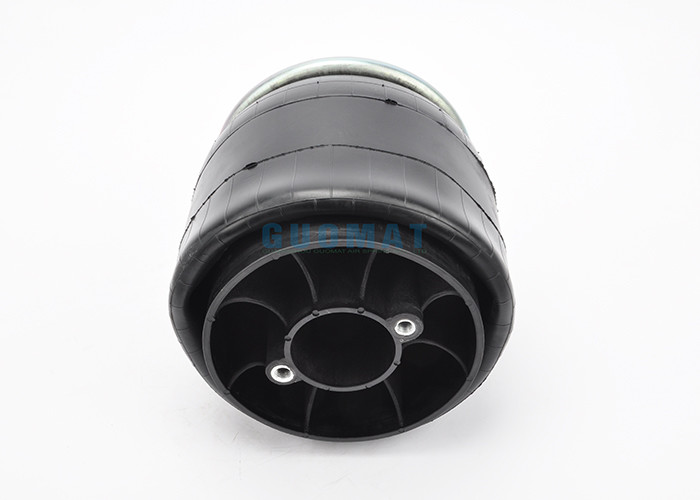

❻ Bottom Piston

Bottom Piston Diameter : Ø200 mm

Bottom Piston Height :169 mm

❼ Piston Bolt

Piston Bolt Tooth : M12X1.75

2 Pieces of Bolt

Center Distance Between two Bolt :100 mm

4157 NP 05 Vechiles OEM References R.O.R./ MERITOR

Complete NO.:W01 M58 7074 / W01-M58-7074 / W01M58 7074

Rubber Bellows NO.: 1T15MPW-7/ 1T15MPW7 /1T15MPW 7

the main FIRESTONE OF Air Springs

W010050442 W010050443 W010050444 W010050445 W010066910
W010950175 W010950176 W010950189 W010950190 W010950191
W010950192 W010950195 W010950197 W010950198 W010950204
W010950175 W010950176 W010950189 W010950190 W010950191
W010950192 W010069082 W010950008 W010950009 W010950030

Different producers of the corresponding number
