WABCO 951 811 710 0 Firestone Ride-Rite Air Helper Spring 1T17BS-6 W01 M58 6367 4022 N P03

GUOMAT 1T4022NP03 Technical parameters

❶ Screw Bolt / Stud

Top Cover Plate screw bolt / Stud Tooth :2 pcs M12X1.75

Screw Center Distance of Top Cover Plate : 150 mm

Distance Between Stud and Central Axis : 25 mm

❷ Gas Hole / Air inlet /Air Fitting

Gas Hole / Air inlet : M22x1.5.

Distance Between Gas Hole and Stud :48 mm

Distance Between Gas Hole and Central Axis : 73 mm

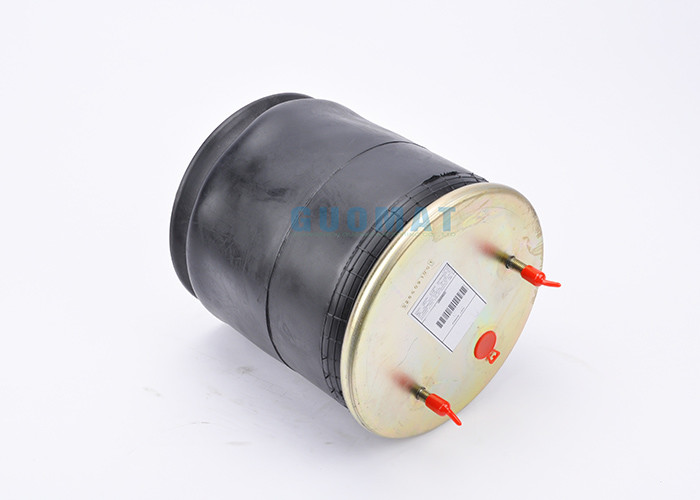

❸ Cover Plate

Top Cover Plate Diameter: Ø259 mm

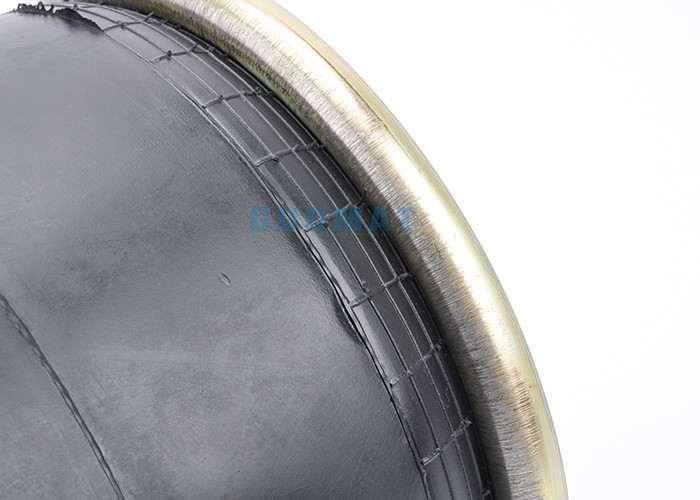

❹Rubber Bellows

Rubber Bellows Natural Diameter: 300 mm

Rubber Bellows MAX Height : 540 mm

Rubber Bellows MIN Height :185 mm

Working stroke : 355 mm

❺ Bumper block / Buffer block

Bumper Block height :78 mm

❻ Bottom Piston

Bottom Piston Diameter : Ø240 mm

Bottom Piston Height :141mm

❼ Piston Bolt

Piston Bolt Tooth : M16 X1.75

4 pieces of Bolt

Middle faster between center Bolt : Ø200 mm

WABCO Air Helper Spring 4022 N P03

W01-M58-6367 / W01M586367 / WO1 M58 6367

4022 N P03 / 4022NP03 / 4022N P03

1R11-714 / 1R11 714 / 1R11714

W01 M58 6367 4022 N P03 cross WABCO NUMBER

The base of W01M586367 have four screw for conneting,the four screw is On the same circumference of a circle.The base is made of plastic by GUOMAT.
