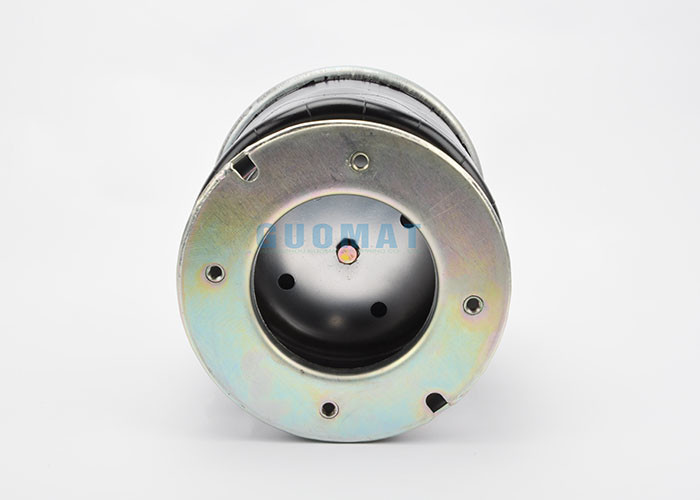

    Rubber Bellows 1T19L-7 Truck Air Springs Complete W01 M58 6345 810 MB DAF 1384273 S.A.F TRAILOR YORK

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 810 MB
    Certification : ISO/TS16949
    Price : $59-159/pc
    Payment Terms : T/T, Western Union,paypal or others
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    • Product Details
    • Company Profile

    Rubber Bellows 1T19L-7 Truck Air Springs Complete W01 M58 6345 810 MB DAF 1384273 S.A.F TRAILOR YORK

    Rubber Bellows 1T19L-7 Complete W01 M58 6345 810 MB DAF 1384273 S.A.F TRAILOR YORK

    1T810 MB Technical parameters

    Screw Bolt / Stud

    Top Cover Plate screw bolt / Stud Tooth :2 pcs M12X1.75

    Screw Center Distance of Top Cover Plate : 158.8mm

    Distance Between Stud and Central Axis : 79.4 mm

    Gas Hole / Air inlet /Air Fitting

    Gas Hole / Air inlet : M22x1.5.

    Distance Between Gas Hole and Stud : 79.4 mm

    Distance Between Gas Hole and Central Axis : 79.4 mm

    Cover Plate

    Top Cover Plate Diameter: Ø286 mm

    Rubber Bellows

    Rubber Bellows Natural Diameter: 320 mm

    Rubber Bellows MAX Height : 550 mm

    Rubber Bellows MIN Height :184mm

    Working stroke : 366 mm

    Bumper block / Buffer block

    Bumper Block height :58 mm

    Bottom Piston

    Bottom Piston Diameter : Ø260 mm

    Bottom Piston Height :139.8mm

    Piston Bolt

    Piston Bolt Tooth : M12 X1.75

    4 pieces of Bolt

    Middle faster between center Bolt : Ø200 mm

    810 MB Complete Rubber Bellows 1T19L-7 References

    Cross References Vehicle​​s OEM References
    CONTITECH 810 MB SAMRO 2500008
    FIRESTONE 1T19L-7 W01 M58 6345 T.E.C 506243/ 01
    GOODYEAR 1R14-716 TRAILOR 650 4646 G
    PHOENIX 1D 28 A-2 VOL-VO 1080707
    DUNLOP UK PNP 311780000 WEWELER 2120 8082
    DUNLOP FR D13B20 WEWELER US 00622
    DUNLOP FR D13B01 WEWELER US07337
    CF GOMMA 1T19E-1 87413-1 WEWELER US87413
    TAURUS KR 621-26 YORK 785168
    R.O.R/MERITOR 21215632 BERTOJA 45402002
    R.O.R/MERITOR 21208082 DAF 1384273
    French car V.I 5000 452 939 GRANNING 15635
    S.A.F 2.228.0002.00 HENDRICKSON B 2065
    S.A.F 2.228.2102.00 HENDRICKSON Y506243
    S.A.F 2.228.2202.00 HENDRICKSON Y506201
    S.A.F 2.228.2402.00 HENDRICKSON 785168
    S.A.F 2.228.2602.00 NEWAY 21215632

    FIRESTONE Assembly Number:W01-M58-6345/ W01M586345 / W01 M58 6345

    FIRESTONE Rubber Bellows Number: 1T19L-7 / 1T19L 7 /1T19L7

    CONTITECH Number : 810 MB / 810MB

    GOODYEAR Number:1R14-716 / 1R14 716/ 1R14716

    Contitech
    810 MB 4st
    Firestone
    W01 M58 6345
    W01 M58 8775
    Goodyear
    1R14-716
    566- 28-3-548
    CF Gomma
    87413/1
    1T 19 E-1
    Vibracoustic
    V1D28A-2
    Phoenix
    1 D28 A-2
    Dunlop UK
    00984A

    NEWAY
    211 586
    French car TRUCKS
    5.000.452.939
    SAF 2918
    2.228.0002.00
    2.229.0002.00
    SAMRO
    25008
    2509999
    TRAIL OR
    6504646 G
    TROUILLET HB
    10315
    SAF 2918
    2.228.0002.00
    2.228.2102.00
    2.228.2202.00
    2.228.2402.00
    2.228.2602.00

    BERTOJA
    91101897
    GRANNING
    15635
    HENDRICKSON
    506243
    785168
    506243/01
    MERITOR (ROR)
    12108082
    21208082
    21215632
    WEWELER
    21208082
    US 00622
    US 874131F
    US 87413P
    VOL-VO
    1080707
    DAF
    1384273

    Other kinds we can produce:


    Style 1T19L-7 Two Ply Bellows

    Blind nuts, 1/4 NPT:W01-358-9148;W01 358 9148;W01-358-9148

    Blind nuts, 1/4 NPT, bumper:W01-358-9149;W01 358-9149;W01-358-9149

    Blind nuts, 3/4 NPT:W01-358-9172;W01 358 9172;W01-358-9172

    Blind nuts, 3/4 NPT,bumper :W01-358-9160;W01 358 9160;W01-358-9160

    FIRESTONE Rubber Bellows number: 1T19L-7

    Rubber Bellows 1T19L-7 Truck Air Springs Complete W01 M58 6345 810 MB DAF 1384273 S.A.F TRAILOR YORKRubber Bellows 1T19L-7 Truck Air Springs Complete W01 M58 6345 810 MB DAF 1384273 S.A.F TRAILOR YORKRubber Bellows 1T19L-7 Truck Air Springs Complete W01 M58 6345 810 MB DAF 1384273 S.A.F TRAILOR YORK

    Rubber Bellows 1T19L-7 Truck Air Springs Complete W01 M58 6345 810 MB DAF 1384273 S.A.F TRAILOR YORK

    ORDER NUMBER STYLE NUMBER SEE PAGE ORDER NUMBER STYLE NUMBER SEE PAGE
    W01-M58-6271 1T15M-2 93 W01-M58-6983 320 77
    W01-M58-6272 1T15M-2 93 W01-M58-6984 319 78
    W01-M58-6273 1T15M-2 93 W01-M58-6985 203 67
    W01-M58-6280 1T15M-4 94 W01-M58-6986 203 67
    W01-M58-6281 1T15M-4 94 W01-M58-6987 29 68
    W01-M58-6283 1T15M-4 94 W01-M58-6988 26 58
    W01-M58-6284 1T15M-4 94 W01-M58-6990 20 59
    W01-M58-6290 1T15M-6 95 W01-358-7019 333 74
    W01-M58-6291 1T15M-6 95 W01-M58-7524 22 61
    W01-M58-6292 1T15M-6 95 W01-M58-7525 21 63
    W01-M58-6294 1T15M-6 95 W01-M58-7526 313 73
    W01-M58-6295 1T15M-6 95 W01-M58-7530 312 75
    W01-M58-6300 1T15M-9 96 W01-M58-7531 28 66
    W01-M58-6301 1T15M-9 96 W01-M58-7532 29 68
    W01-M58-6304 1T15M-9 96 W01-M58-7533 319 78
    W01-M58-6305 1T15M-9 96 W01-M58-7534 313 73
    W01-M58-6310 1T15S-6 93 W01-M58-7535 333 74
    W01-M58-6311 1T15S-6 93 W01-M58-7536 21 63
    W01-M58-6313 1T15S-6 93 W01-M58-7538 113 47
    W01-M58-6321 1T15T-1 92 W01-M58-7539 113-1 48
    W01-M58-6322 1T15T-1 92 W01-M58-7540 211 70
    W01-M58-6325 1T15T-1 92 W01-358-7900 313 73
    W01-M58-6353 26 58 W01-358-7901 20 59
    W01-M58-6369 113-1 48 W01-358-7902 29 68
    W01-M58-6371 113-1 48 W01-358-7910 211 70
    W01-M58-6372 19 45 W01-358-7912 211 70
    W01-M58-6373 19 45 W01-358-7914 312 75
    W01-M58-6374 115 44 W01-358-7918 319 78
    W01-M58-6375 115 44 W01-358-7919 319 78
    W01-M58-6376 115 44 W01-358-7921 323 76
    W01-M58-6377 21-2 64 W01-358-7925 28 66
    W01-M58-6378 21-2 64 W01-358-7926 312 75
    W01-M58-6379 21-2 64 W01-358-7928 22 61
    W01-M58-6381 22 61 W01-358-7929 21 63
    W01-M58-6382 22 61 W01-358-8158 153-2 49
    W01-M58-6383 22-1.5 62 W01-358-9148 1T19L-7 97
    W01-M58-6384 22-1.5 62 W01-358-9149 1T19L-7 97
    W01-M58-6387 26 58 W01-358-9153 1T19L-11 98
    W01-M58-6400 224 57 W01-358-9155 1T19L-11 98
    W01-M58-6966 121 51 W01-358-9156 1T19L-11 98
    W01-M58-6968 323 76 W01-358-9160 1T19L-7 97
    W01-M58-6969 148-1 54 W01-358-9162 1T19L-11 98
    W01-M58-6970 248-2 71 W01-358-9165 1T19L-7 97
    W01-M58-6971 348-3 79 W01-358-9172 1T19L-7 97
    W01-M58-6972 134-1.5 53 W01-358-9188 1X84D-1 80
    W01-M58-6973 126 52 W01-358-9190 1X84D-1 80
    W01-M58-6974 119 50 W02-M58-3000 1M1A-0 34
    W01-M58-6975 19 45 W02-M58-3001 1M1A-0 34
    W01-M58-6976 22 61 W02-M58-3002 2M1A 36
    W01-M58-6967 320 77 W02-M58-3006 1M1A-1 35
    W01-M58-6977 115 44 W02-358-4001 4001 81
    W01-M58-6978 211 70 W02-M58-5001 116-ST 39
    W01-M58-6979 200 69 W02-M58-5003 16-ST 39
    W01-M58-6980 323 76 W02-358-7002 7002 82
    W01-M58-6981 312 75 W02-358-7010 7010 83
    W01-M58-6982 134-1.5 53 W02-358-7012 7012 84
