    Firestone W01 M58 8186 Truck Air Springs CONTITECH 4157 NP 06

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : W01 M58 8186
    Certification : ISO/TS16949
    Price : $59-159/pc
    Payment Terms : T/T, Western Union,paypal or others
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    • Product Details
    • Company Profile

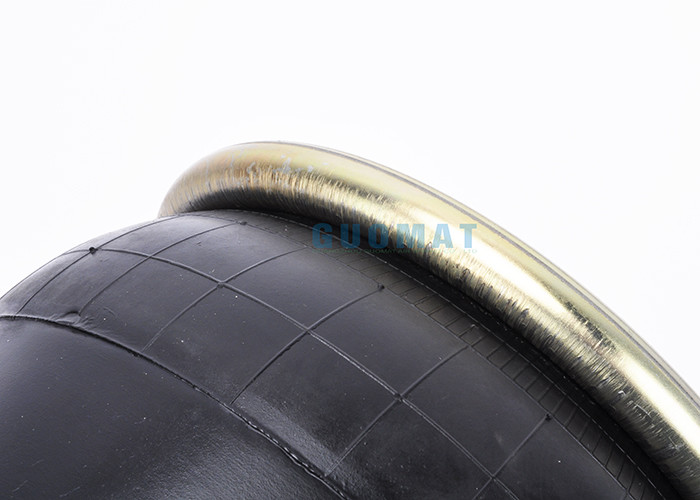

    Firestone W01 M58 8186 Truck Air Springs CONTITECH 4157 NP 06

    Firestone W01 M58 8186 Truck Air Springs CONTITECH 4157 NP 06 GOODYEAR 1R11-764 on Weweler


    GUOMAT 1T4157NP06 Technical parameters


    screw bolt / Stud

    Top Cover Plate screw bolt / Stud Tooth : 2 pcs M10

    Screw Center Distance of Top Cover Plate : 150 mm

    ❷ Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet : M22X1.5

    Cover Plate

    Top Cover Plate Diameter: Ø231 mm

    Rubber Bellows

    Rubber Bellows Natural Diameter: 291 mm

    Rubber Bellows MAX Height : 655 mm

    Rubber Bellows MIN Height : 234 mm

    Working stroke : 421mm

    Bumper block / Buffer block

    Bumper Block height :112 mm

    Bottom Piston

    Bottom Piston Diameter : Ø260 mm

    Bottom Piston Height :192.5 mm

    Piston Bolt

    Piston Bolt



    W01 M58 8186 Truck Air Springs fits for Weweler US 06316F

    Cross ReferencesVehicle​​s OEM References
    CONTITECH 4157 NP 06
    Firestone W01 M58 8186Granning: 15783
    GOODYEAR 1R11-764Meritor : MLF7037
    Airtech : 133802Weweler US 06316F
    Airtech: 38186KPPSchmitz Trailer 751065
    WABCO : 951 811 764 0
    Phoenix : 1 DK 20 A1
    Dunlop UK : D11B37
    Airtech : 133802



    The usual kinds of rolling of air springs cross number

    ContitechFirestoneGoodyearPhoenixDunlop FRCF GommaTaurus
    4028 NP 05 1R14-721 D 14B 51
    912 NP 02W01-M58-73851R14-0281D 28D-2
    725 NP01W01-M58-75291R14-704 D 14U 38 UR 836-11
    4159 NP 03W01-M58-75481R12-7011DK 21B-4D 12B 011T 323-40KR 509-22
    910 12P 720W01-358-7667
    6607 NP 01W01-M58-84731R11-8051DF17A-1D11B42
    11 10.5E-16A320W01-358-80501R14-039
    11 10.5E-15A419W01-358-80521R14-042
    11 10.5A-16P523W01-358-80531R14-147
    AS 8091W01-358-80911R14-171
    4157 NP 03W01-M58-81851R11-7491DK 21B-1D 12B 22 DA 34158
    4157 NP 06W01-M58-81861R11-7641DK 21A 1D 11B 37
    6606 NP 01W01-M58-84771R11-8481D 20E-1
    912 NP 01W01-M58-85021R14-728
    4881 NP 02W01-M58-86011R14-7011DK 32KD 14U 37 UR 838-01T


    Firestone W01 M58 8186 Truck Air Springs CONTITECH 4157 NP 06
    Firestone W01 M58 8186 Truck Air Springs CONTITECH 4157 NP 06Firestone W01 M58 8186 Truck Air Springs CONTITECH 4157 NP 06
