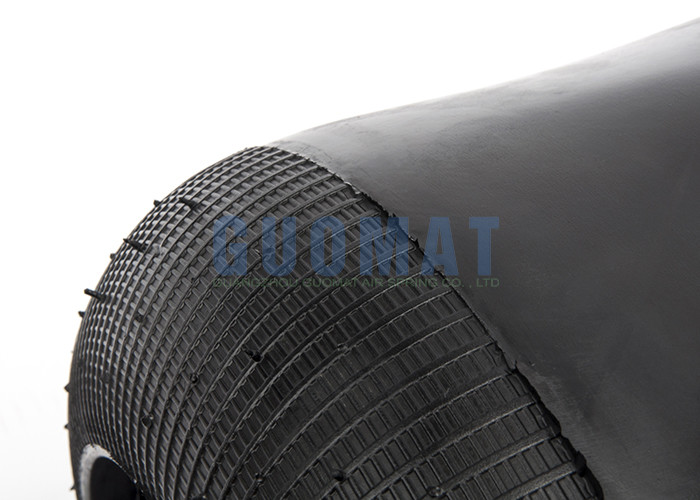

662 N Bus Air Spring Air Helper Spring Can Using for M.A.N 81.43601.0018​

Dunlop Part Number
PNP 30273 01 01
Contitech Reference
662 N
Firestone Style
1R1D 355-355
Firestone Reference
W01 095 0207
Phoenix
1 E 32
Taurus
BL 143
Goodyear
9007
CF Gomma (Pirelli)
1 SC 360-30
OEM Applications / Part Numbers
BPW 02.200.24.60.0 DAF 0 578 361
MAN 81.43601.0051 NEOPLAN AA 10-01-002 NEOPLAN 1001 102 00 NEOPLAN 1001 122 51 SCHMITZ 750 209
SMB 268 0662 000 VAN HOOL
VDL BUS 0 578 361



Nominal working pressure : 5.0-6.0 bar
maximum working pressure : 7.0bar
space envelope diameter : 380mm
maximum height: 445mm
Assembly height: 200mm - 270mm
Minimum height: 180mm
Minimum burst pressure : 18bar
load capacity (7.0 bar): 4670kg



662 N Bus Air Spring can fit for the below Model:

BPW 02.200.24.60.0 ( 662 N ) Vehicle :

Bussing ( 662 N ) Vehicle : L 16
Bussing ( 662 N ) Vehicle : L 22

DAF 0 578 361 ( 662 N ) Vehicle : SB 2000
DAF 0 578 361 ( 662 N ) Vehicle : SB 201

Fruehauf ( 662 N ) Vehicle : Truck alteration
Fruehauf ( 662 N ) Vehicle :

Hanomag ( 662 N ) Vehicle : Truck
Hanomag ( 662 N ) Vehicle : Bus

Ikarus ( 662 N ) Vehicle : Vöv - Bus
Ikarus ( 662 N ) Vehicle : 19001
Ikarus ( 662 N ) Vehicle : 19002
IVE-CO 41822247 ( 662 N ) Vehicle : Carro 220 IVE-CO

Koegel ( 662 N ) Vehicle :
MAN 81.43601.0018 ( 662 N ) Vehicle :
MAN 81.43601.0051 ( 662 N ) Vehicle :

Neoplan AA 10-01-002 ( 662 N ) Vehicle : N 116
Neoplan AA 10-01-002 ( 662 N ) Vehicle : N 117/2/3
Neoplan AA 10-01-002 ( 662 N ) Vehicle : N 122
Neoplan AA 10-01-002 ( 662 N ) Vehicle : N 122/2/3
Neoplan AA 10-01-002 ( 662 N ) Vehicle : N 138
Neoplan AA 10-01-002 ( 662 N ) Vehicle : N 212/H
Neoplan AA 10-01-002 ( 662 N ) Vehicle : N 213/H
Neoplan AA 10-01-002 ( 662 N ) Vehicle : N 214/H
Neoplan AA 10-01-002 ( 662 N ) Vehicle : N 216/H
Neoplan AA 10-01-002 ( 662 N ) Vehicle : N 221
Neoplan AA 10-01-002 ( 662 N ) Vehicle : N 314
Neoplan AA 10-01-002 ( 662 N ) Vehicle : N 316/MK
Neoplan AA 10-01-002 ( 662 N ) Vehicle : N 326
Neoplan AA 10-01-002 ( 662 N ) Vehicle : N 414
Neoplan AA 10-01-002 ( 662 N ) Vehicle : N 416
Neoplan AA 10-01-002 ( 662 N ) Vehicle : N 421
Neoplan AA 10-01-002 ( 662 N ) Vehicle : N 424/426
Neoplan AA 10-01-002 ( 662 N ) Vehicle : N 912
Neoplan AA 10-01-002 ( 662 N ) Vehicle : N 922
Neoplan AA 10-01-002 ( 662 N ) Vehicle : N 940

The benefit to use air spring:

To optimize load distribution on multi-axle units.
To provide for auxiliary axle pick up when the axle is not need to use.
So it can provid operating economies and improved
maneuverability.
To permit automatic level. With automatic height sensors,
there is no change in vehicle height from an unloaded to a fully
loaded condition. GUOMAT air spring permits the cargo space to be designed
with a higher top and a lower floor without interfering with the
tires while still staying within maximum vehicle height limits.
A constant height is maintained when it use at loading docks
and for trailer pick-ups.


Change the air spring need to pay attention to these tips:

Clean the cover plate and the bottom piston, to check whether there is burr or installed on the metal parts corrosion replacement if necessary. On the seam allowance of the piston are coated with liquid soap or install tires lubricants but the grease cannot use.

During installation, make sure no damage to the air spring, combination of metal parts such as cover plate, piston sealing surface is not damaged, rust and getting dirty.

Check whether old metal piston indicates that there is a product of dirt, or surface rust caused by wear and tear. If there is, should clean up the surface of the piston, if necessary for processing to prevent rust or replace with new metal parts.

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
