    Rubber Truck Air Springs

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 881 MB
    Certification : ISO/TS16949
    Price : $59-159/pc
    Payment Terms : T/T, Western Union,paypal or others
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    • Product Details
    • Company Profile

    Rubber Truck Air Springs

    Truck Air Springs 881 MB GOODYEAR 1 R 14-748 CF GOMMA 1 TC 360-45 for BPW 36 Axle


    GUOMAT 1T881MB Technical parameters


    screw bolt / Stud

    Top Cover Plate screw bolt / Stud Tooth :2 pcs M 12

    Screw Center Distance of Top Cover Plate : 210 mm

    ❷ Gas Hole / Air inlet /Air Fitting

    Gas Hole / Air inlet : M22x1,5.

    Distance Between Gas Hole and Stud :25 mm

    Distance Between Gas Hole and Central axis :95 mm

    Cover Plate

    Top Cover Plate Diameter: Ø311.5 mm

    Rubber Bellows

    Rubber Bellows Natural Diameter: 355 mm

    Bumper block / Buffer block

    Bumper Block height :30 mm

    Bottom Piston

    Bottom Piston Diameter : Ø256mm

    Bottom Piston Height :188.5 mm

    Piston Bolt

    Piston Bolt Tooth : M16

    12 pieces of Bolt

    Middle inside between center Bolt : 70 mm

    Middle faster between center Bolt : 120 mm

    Inside the most close Bolt :45 mm

    Inside and the beside Bolt:80 mm


    881 MB details OEM References


    Cross ReferencesVehicle​​s OEM References
    CONTITECH 881 MB**CPLBPW BPW 36
    FIRESTONE 1T66F-10.8 W01 M58 8966**CPLBPW 05.429.43.51.0
    GOODYEAR 1 R 14-748BPW 05.429.40.61.1
    DUNLOP FR D14 B 41**CPLBPW 05.429.41.36.1
    CF GOMMA 1 TC 360-45**CPLBPW 05.429.40.08.1
    TAURUS KR 836-05**CPLMeritor : MLF7065
    Airtech : 130522/3881-01k
    Granning: 15917
    Pirelli: 1TC 360-45
    WABCO : 951 814 712 0

    881MB W01-M58-8966 / W01M588966 / WO1 M58 8966

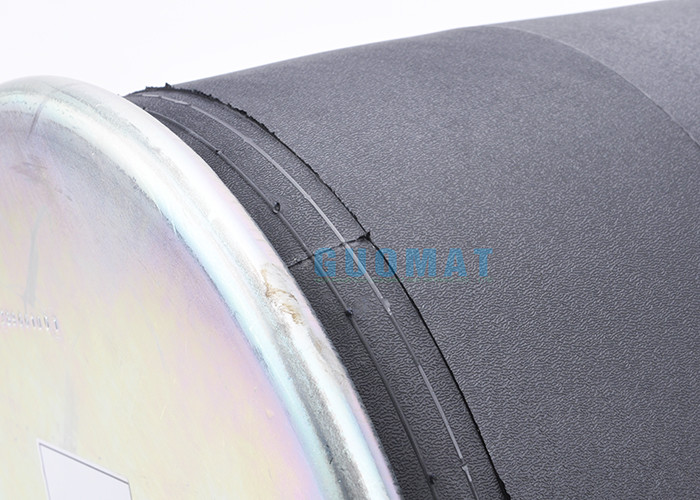

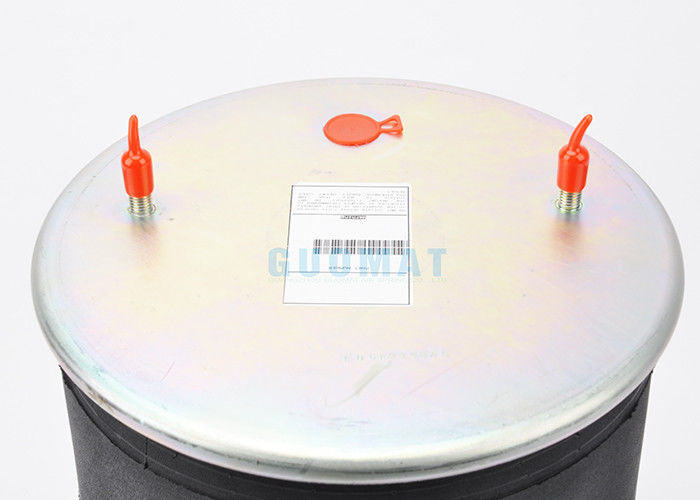

    881 MB detail pictures

    tRubber Truck Air Springsu

    Rubber Truck Air SpringsRubber Truck Air Springs
