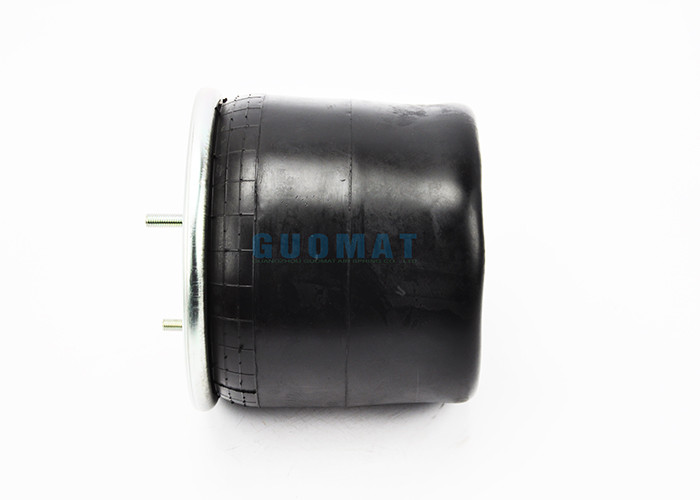

940 MB Truck Air Springs W01 M58 8609 Bellows 1T 17D-4.3 Fits BPW 05.429.42.41.1

GUOMAT 1T940 MB Technical parameters

❶ screw bolt / Stud

Top Cover Plate screw bolt / Stud Tooth :2 pcs M 12X1.75

Distance Between Stud and Central axis : 25 mm

❷ Gas Hole / Air inlet /Air Fitting

Gas Hole / Air inlet : M22x1.5.

Distance Between Gas Hole and Stud :48 mm

Distance Between Stud and Central axis : 73 mm

❸ Cover Plate

Top Cover Plate Diameter: Ø259 mm

❹Rubber Bellows

Rubber Bellows Natural Diameter: 300 mm

❺ Bumper block / Buffer block

Bumper Block height :41mm

❻ Bottom Piston

Bottom Piston Diameter : Ø205mm

Bottom Piston Height :193 mm

❼ Piston Bolt

Piston Bolt Tooth : M16 X2.0

6 pieces of Bolt

Middle inside between center Bolt : 70 mm

Inside the most close Bolt :20 mm

Inside and the beside Bolt: 60 mm

CONTINENTAL
940 MB
DUNLOP FRANCE
D11B39
FIRESTONE REF.
W01 M58 8609
STYLE N0.
1T17D-4.3
GOODYEAR
1R11-763
GRANNING
15919
PHOENIX
1DK 21K, CPL. BPW30K
TAURUS
KR 732-01
VIBRACOUSTIC
V1DK21 K
WABCO
951 811 763 0

AIRTECH
130202
AIRTECH PROD. NO.
3940K
AUTOMINT
6012
BLACKTECH
RML 7051 C

W01-M58-8609 / W01 M58 8609 / W01M588609

FIRESTONE 1T17D-4.3 / 1T17D4.3

GOODYEAR 1R11-763 / 1R11763 / 1R11 763

The world's three major brands of air spring of 940MB CROSS number

The installation of the base structure is used six screw to link.
