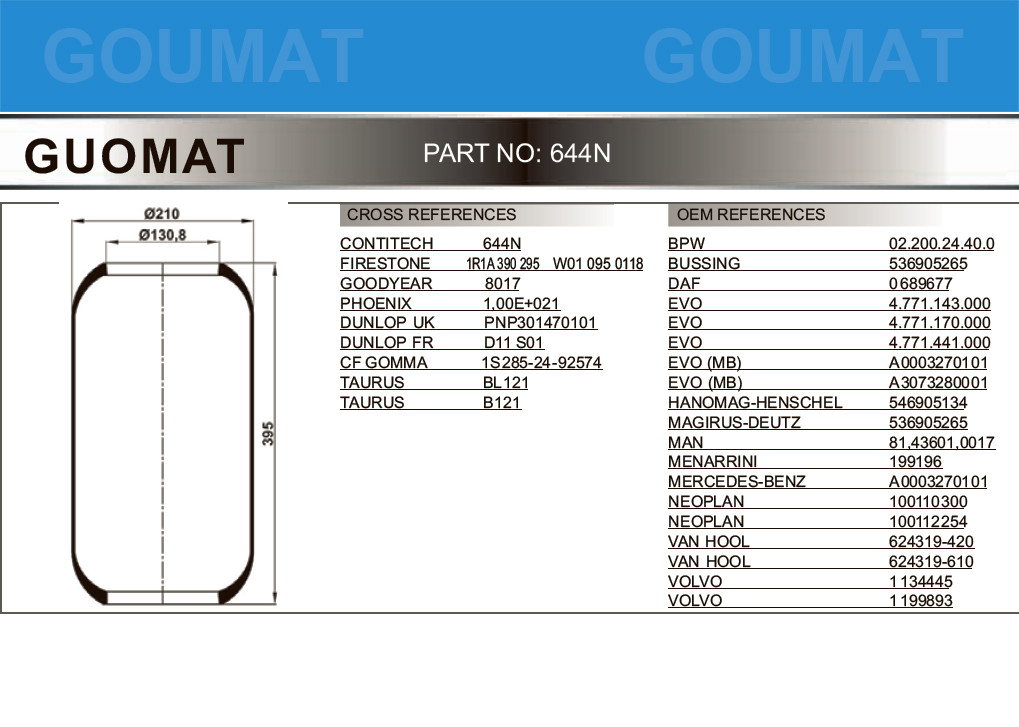

Bus Air Spring Contitech 644n Just Need To Change The Rubber Bellows 1r1a 390 295

Dunlop Part Number
PNP 30147 01 02
Contitech Reference
644 N
Firestone Style
1R1A 390-295
Firestone Reference
W01 095 0118
Phoenix
1 E 21
Taurus
BL 121
Dunlop France
D11 S01
Goodyear
8017
CF Gomma (Pirelli)
1 S 285-24
OEM Applications / Part Numbers
DAF 0 689 677
EVO 4.771.170.000
EVO A 000 327 01 01
EVO A 307 328 00 01 HANOMAG 546 905 134 KASSBOHRER
MB TÜRK A 000 327 01 01 MERCEDES
NEOPLAN 1001 12 254 VAN HOOL 624319-610 VOL-VO 1 134 445

644N Technical parameters

Minimum height / h min 155 mm

Maimum height / h ma 415 mm

Maimum diameter /d ma 300 mm

Required Space diameter / d R 325 mm

Natural height / h 275 mm

Nominal working pressure : 5.0-6.0bar
maximum working pressure : 7.0bar
space envelope diameter : 315mm
maximum height: 420mm
Assembly height: 170mm - 290mm
Minimum height: 160mm
Minimum burst pressure : 18bar
load capacity (7.0 bar): 2995kg

644N can fit for the below Vehicle Model:

Bussing 536 905 265 ( 644 N ) Vehicle : F 76

DAF 0 689 677 ( 644 N ) Vehicle : SB 2000

DAF 0 689 677 ( 644 N ) Vehicle : SB 201

Droeg ( 644 N ) Vehicle : 303 / 9-15

EVO 4.771.170.000 ( 644 N ) Vehicle : 216 DHS

EVO 4.771.170.000 ( 644 N ) Vehicle : 228 DT

EVO 4.771.170.000 ( 644 N ) Vehicle : S 228 DT 6t

EVO 4.771.170.000 ( 644 N ) Vehicle : S 110

EVO 4.771.170.000 ( 644 N ) Vehicle : S 12

EVO 4.771.170.000 ( 644 N ) Vehicle : S 14

EVO 4.771.170.000 ( 644 N ) Vehicle : S 15 L

EVO 4.771.170.000 ( 644 N ) Vehicle : S 120 GV/HV

EVO 4.771.170.000 ( 644 N ) Vehicle : S 125

EVO 4.771.170.000 ( 644 N ) Vehicle : S 1305

EVO 4.771.170.000 ( 644 N ) Vehicle : S 140 E/ES/H

EVO 4.771.170.000 ( 644 N ) Vehicle : S 150 E/H

EVO 4.771.170.000 ( 644 N ) Vehicle : S 180

EVO 4.771.170.000 ( 644 N ) Vehicle : S 200

EVO 4.771.170.000 ( 644 N ) Vehicle : S 209

EVO 4.771.170.000 ( 644 N ) Vehicle : S 211

EVO 4.771.170.000 ( 644 N ) Vehicle : S 212

EVO 4.771.170.000 ( 644 N ) Vehicle : S 210 H/HD

EVO 4.771.170.000 ( 644 N ) Vehicle : S 213

EVO 4.771.170.000 ( 644 N ) Vehicle : S 214

EVO 4.771.170.000 ( 644 N ) Vehicle : S 215

EVO 4.771.170.000 ( 644 N ) Vehicle : S 216 HSD

EVO 4.771.170.000 ( 644 N ) Vehicle : SG 175

EVO 4.771.170.000 ( 644 N ) Vehicle : SG 98

EVO 4.771.170.000 ( 644 N ) Vehicle : SG 052

MAN 81436010017

VOL-VO 1134445 - 1622111 - 1199873 - 1590136 - 1199893

NEOPLAN 100110300

VAN HOOL 624319610

DAF 689677 - 696229

EVO BUS 4771143000 - 4771143000 - A0003280001 - 4771170000

MERCEDES A0003270101 - A6133270001 - 3073280001 - 3643277001

IVE-CO 4714025 - 536905265

Mode Of Conventional Models
