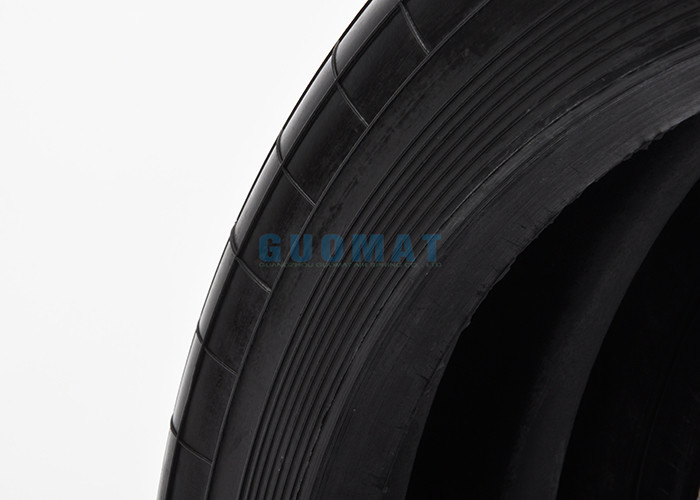

Punching Machine Air Spring S-600-4 for Press Air Actuators for
Pneumatics As Yokohama
Details information of S-600-4 r
| GUOMAT NO. | Reference No. | Hight H(mm) | Commonly Maximum Stroke(mm) | The Largest Diameter When Compressed(mm) |
| Design High(mm) | Maximum High(mm) | | | Minimum Height(mm) |
| F-600-4 | S-600-4 | 218 | 363 | | | 123 | ±90 | 660 |
| GUOMAT NO. | Reference No. | Standard Height,Internal Pressure 0.49 M pa When The General Value | Using Maximum Internal Pressure (M pa) | Internal Pressure (M pa) |
| Effective Area (Cm2) | Volume(L) | Load (K n) | Dynamic Spring Parameters (N/Min) | Vibration Frequency (Hz) |
| F-600-4 | S-600-4 | 2830 | 59.9 | 138.3 | 1285 | 1.5 | 0.69 | 3.9-4.9 |
Manufacturer: Guangzhou Guomat Air Spring Co., LTD
Warranty: 12months limited warranty and a 30-day money-back
guarantee
Other names : Suspension Air Bladder, Air Suspension Bag, Air Ride
Bag, Air Suspension Spring ,Air Balloon Air Bellows. Air Spring
Bellow, Air strut
Air Spring Use on Industrial Applications
Air spring can be applied to a lot of equipment that can
effectively reduce the influence of vibration to the equipment .Air
Spring offer solutions for vibration-oriented mounting of many
kinds of machines. From the technical design all the way through to
the harmonization of individual system components. Currently, more
and more industrial equipment use air spring. GUOMAT air springs
make very low natural frequencies possible, from 0.5 to 3.5 Hz
depending on the type. With loads ranging from 0.5 k N to more than
440 k N, air isolators provide effective mounts for sensitive
measuring instruments as well as heavy foundations.
Industrial Equipments Such As
Printing & writing paper machine,Papermaking equipment, large washing machine, water treatment
equipment, fitness equipment, punch press, leather draw machine,
automobile testing station, medical machinery, mining machinery,
etc.Headbox dilution system.Doctor & spare blade,Infinity dryer
system,Shower oscillator,Tissue machine,
Board paper machine,Headbox,former, press,dryer,reel, rewinder and
spare of paper machine.Wide & high speed length rolls with center
balancing work.
Our company is one of the most biggest air spring manufacturers in
the world. We Focus on the production of air spring.
All of these new kinds air springs are developed and strictly to
OEM standard by us. The air spring are 100% fit to the OEM you
need.
Shipping and packing
Shipment:
1. Normally, we will deliver the parts within 2-8 work days after
payment is received.
2. We always deliver the air spring by DHL, UPS,FEDEX and TNT.They
are all can very quickly to deliver the package to you. If the
package is large and heavy, we may send it by sea.
We will arrange it for you if you have no preference on the express
carrier
Packing:
Shipping by Air: packed with strong carton box;
Shipping by Sea: wrapped with water-proof material,pallet and
wooden case will be used if necessary.
The Large Kinds Of Yokohama Air Spring Catalogue
| GUOMAT NO. | Reference No. | Hight H(mm) | Commonly Maximum Stroke(mm) | The Largest Diameter When Compressed(mm) |
| Design High(mm) | Maximum High(mm) | Minimum Height(mm) |
| F-600-1 | S-600-1 | 72 | 122 | 40 | ±30 | 700 |
| F-600-2 | S-600-2 | 102 | 172 | 57 | ±45 | 660 |
| F-600-3 | S-600-3 | 160 | 270 | 90 | ±68 | 660 |
| F-600-4 | S-600-4 | 218 | 363 | 123 | ±90 | 660 |
| F-600-5 | S-600-5 | 276 | 456 | 156 | ±113 | 660 |
| F-550-2 | S-550-2 | 102 | 172 | 50 | ±45 | 610 |
| F-550-3 | S-550-3 | 160 | 270 | 90 | ±68 | 610 |
| F-500-2 | S-500-2 | 102 | 172 | 57 | ±45 | 560 |
| F-500-3 | S-500-3 | 160 | 270 | 90 | ±68 | 560 |
| F-500-4 | S-500-4 | 218 | 363 | 123 | ±90 | 560 |
| F-500-5 | S-500-5 | 276 | 456 | 156 | ±113 | 560 |
| F-450-1 | S-450-1 | 72 | 117 | 40 | ±30 | 510 |
| F-450-2 | S-450-2 | 102 | 172 | 57 | ±45 | 510 |
| F-450-3 | S-450-3 | 160 | 270 | 90 | ±68 | 510 |
| F-450-4 | S-450-4 | 218 | 363 | 123 | ±90 | 510 |
| F-450-5 | S-450-5 | 276 | 456 | 156 | ±113 | 510 |
| F-400-2 | S-400-2 | 102 | 167 | 57 | ±45 | 460 |
| F-400-3 | S-400-3 | 160 | 260 | 90 | ±68 | 460 |
| F-400-4 | S-400-4 | 218 | 348 | 123 | ±90 | 460 |
| F-400-5 | S-400-5 | 276 | 435 | 156 | ±113 | 460 |
