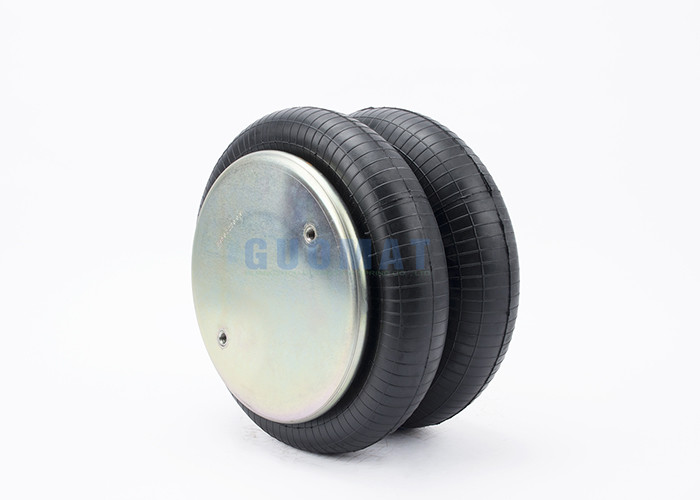

W01-358-7180 Industrial Air Spring Double Convoluted FD 330-22 2B12-425/311 578923309

Technical Parameters of W01-358-7180

Top Cover Plate Diameter 231mm

Bottom Cover Plate Diameter 231 mm

Screw Center Distance 157 mm

Distance Gas Hole Between Nut 73 mm

Gas Hole 1/4NPTF

Screw (Nut) Tooth 2pcsX3/8-16UNC

Rubber Bellows MAX diameter 325 mm

The Stroke 81-305 mm

OEM Original Equipment Manufacturer:

Firestone: W01-358-7180/22
Contitech: FD 330-22 363
Goodyear: 2B12-425/311
Hendrickson : 1VA1816
: 578923309
Triangle : 6316/4363
Kwiklok/Todco(Jifflox)
Leland : Sc2075
Navistar : 1685179C1
EI Ride : 8030190
SAF Holland : 57007180
Watson&Chalinl : AS01541G/01881F
Vibracoustic : VSP2B22R7180
Ridewell : 1003587180C
Peerless : 0550 00001

Air spring Brand: ContiTech

Competitor/Brand ID: FD33022363

Firestone Air Spring Model Number: 22

Air spring Brand: Goodyear

Competitor/Brand ID: 2B12311

Firestone Air Spring Model Number: 22

Air spring Brand: Goodyear

Reference Number: 578923309

Competitor/Brand number: 2B12425

Firestone Air Spring Model Number: 22

Air Suspension Brand: Kwic Lock

Firestone air spring style: 22

Air Suspension Brand: Kwik Lok / Todco (Jifflox)

Firestone Airspring style: 22

Air Suspension Brand: Leland

Competitor/Brand number: SC2075

Firestone air spring style: 22

Air Suspension Brand: Navistar

Competitor/Brand ID: 1685179C1

Firestone air spring style: 22

Air Suspension Brand: SAF Netherlands

Competitor/Brand ID: 57007180

Firestone air spring style: 22

Air Suspension Brand: Peerless

Competitor/Brand ID: 5500001

Firestone air spring type: 22

Air Suspension Brand: Ridewell

Competitor/Brand ID: 1003587180C

Firestone air spring style: 22

Air Suspension Brand: Talbert

Firestone air spring style: 22

Air Suspension Brand: Watson & Chalin

Competitor/Brand number: AS01541G

Firestone air spring style: 22

Air Spring Brand: Triangle

Reference Number: 6316

Competitor/Brand ID: 4363

Firestone air spring style: 22

Air Spring Brand: Vibration

Competitor/Brand number: VSP2B22R7180

Firestone Air Spring Model Number: 22

Air Suspension Brand: EZ Crew

/Vendor number: 8030190

Firestone air spring style: 22

Air Suspension Brand: Hendrick

Firestone Air Spring Model Number: 22

Air Suspension Brand: Hendrickson

Competitor/Brand number: NA1816

Firestone air spring style: 22

Air Suspension Brand:

Henderson Truck Firestone Air Spring Style: 22

Firestone Trim: w013587180

The usal kinds of Double Convolution Air Springs

Style 22 Two Ply
Blind nuts, 1/4 BSP:W01-M58-6381;W01 M58 6381;W01M586381

Blind nuts, 1/4 BSP, bumper:W01-M58-6382;W01 M58 6382;W01M586382

Blind nuts, 3/4 BSP:W01-M58-6200;W01 M58 6200;W01M586200

Blind nuts, 3/4 BSP, bumper:W01-M58-6201;W01 M58 6201;W01M586201

Countersunk steel bead rings,40 mm bolts, nuts, washers:W01-M58-7524;W01 M58 7524;W01M587524

Rubber bellows only:W01-358-0226;W01 358 0226;W013580226

Assembly weight (bead plate version, no bumper):5.8 kg.

Force to collapse to minimum height (@ 0 BAR):88.9 N.

Style 210 High Strength Con-struction
Blind nuts, 1/4 BSP:W01-M58-6212;W01 M58 6212;W01M586212

Blind nuts, 1/4 BSP, bumper:W01-M58-6213;W01 M58 6213;W01M586213

Blind nuts, 3/4 BSP:W01-M58-6210;W01 M58 6210;W01M586210

Countersunk steel bead rings,bolts, nuts, washers:W01-M58-6976;W01 M58 6976;W01M586976

Rubber bellows only:W01-358-7928;W01 358 7928;W013587928

Use in many applications including:

• Power source in direct-acting forming press (metal and plastics)
• Power source in compactors
• Mechanical coupling
• Power source in laminating plywood presses
• Granite slab positioners
• Pallet lifts
• The conveyor terminal block
• Lift actuators for diagnostic tables in hospitals
• Reciprocating shaft seal
• The shock absorber test system
• Underwater actuator for gate controls
• Washing equipment,
• Lumber positioner actuators in sawmills
• Actuators for concrete block machinery
• Mineral equipment air spring,
