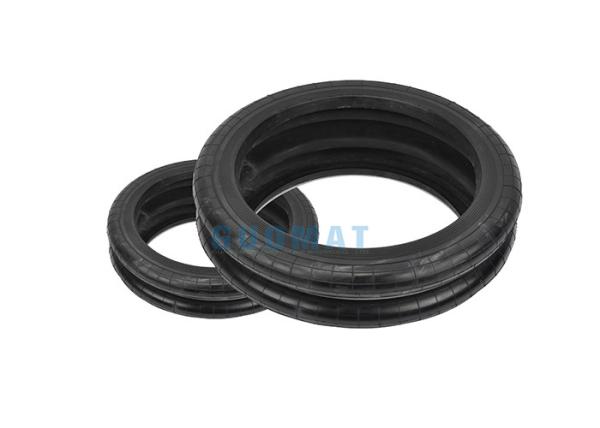

Yokohama S-600-2r Big Convoluted Air Spring S600-2 For 50 Ton
Punching Machine Laminate Press Equipment
S-600 items Detailed Parameter Table:
| GUOMAT NO. | Reference No. | Hight H(mm) | Commonly Maximum Stroke(mm) | The Largest Diameter When Compressed(mm) |
| Design High(mm) | Maximum High(mm) | Minimum Height(mm) |
| F-600-1 | S-600-1 | 72 | 122 | 40 | ±30 | 700 |
| F-600-2 | S-600-2 | 102 | 172 | 57 | ±45 | 660 |
| | | | | | |
| GUOMAT NO. | Reference No. | Standard Height,Internal Pressure 0.49 M pa When The General Value | Using Maximum Internal Pressure (M pa) | Internal Pressure (M pa) |
| Effective Area (Cm2) | Volume(L) | Load (K n) | Dynamic Spring Parameters (N/Min) | Vibration Frequency (Hz) |
| F-600-1 | S-600-1 | 2830 | 19 | 138.3 | 4197 | 2.8 | 0.69 | 3.9-4.9 |
| F-600-2 | S-600-2 | 2830 | 26.3 | 138.3 | 2873 | 2.3 | 0.69 | 3.9-4.9 |
| | | | | | | | |
Features
1 The bellows type reduces the deformation (expansion and
contraction) of the rubber film during operation, so that the
rubber film has a good shelf life.
2. Because there are no moving parts, it can be easily repaired
without refilling.
3. Air springs can maintain a lower height than other types of air
springs.
4. Since air is used as an elastomer, it is subjected to a large
stress. Springs of different springs due to the elasticity of air
can be used together.

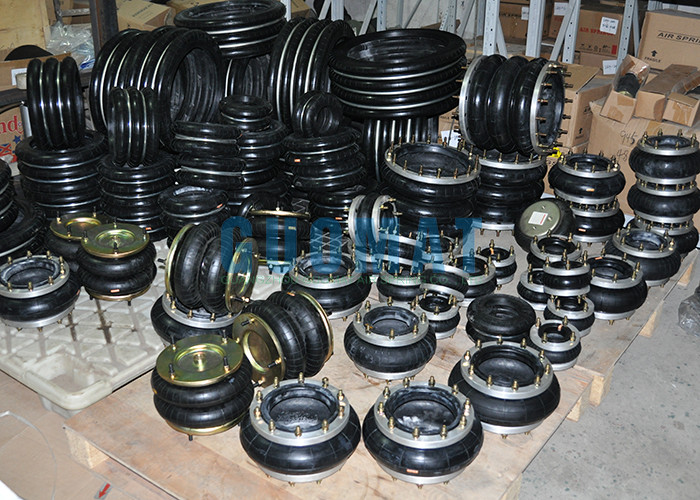

GUOMAT Has Punch Press Air Spring Cushion /Air Shock Absorber Part
NO. Below:
Japan Yokohama Rubber Air Spring Cushion Have The Following
Specifications And Models:
S-300-1R, S-300-2R, S-300-3R, S-300- 4R, S-350-1R, S-350-2R,
S-350-3R, S-350-4R, S-400-2R, S-400-3R, S-400-4R, S-400-5R
S-450-1R, 2R, 3R, 4R, S-500-2R, 3R, 4R, Guangzhou GUOMAT, S-500-5R,
S-550-2R, S-550-2R, S-550-3R S -600-1R, 2R, 3R, 4R, 5R, S-730-1R,
2R, 3R, 4R, 5R, 6R, S-50-2R, S-50-3R, S-60-2R, S-60 -3R, S-60-4R,
S-90-3R, S-100-2R, S-100-3R, S-100-4R, S-120-2R, S-120-3R, S-120-4R
, S-120-4R, S-160-1R, 2R, 3R, S-160-4R, S-200-2R, S-200-3R,
S-200-4R, S-200-4R, S-220 -2R, S-220-3R, S-220-4R, S-240-1R,
S-240-2R, S-240-3R, S-240-4R,
Bmw Station Si / Springride (Spratt), Taiwan Ysair Airbag / Air
Cushion Specifications Are As Follows :
YS-65-1, YS-115-1 , YS-115-2, YS-130-1, YS-130-2, YS-160-1,
YS-160-2, YS-210-1, YS-210-2, YS-250-1, YS -250-2, YS-280-1,
YS-280-2, YS-320-1, YS-320-2, YS-320-3, YS-335-1, YS-335-2, YS-335
-3, YS-405-1, Y-S405-2, YS-405-3, YS-460-1, YS-460-2, YS-460-3,
YS-510-1, YS-510-2 , YS-510-3, YS-560-1, YS-560-2, YS-560-3,
YS-610-1, YS-610-2, YS-610-3, YS-660-1, YS -660-2, YS-660-3,
YS-710-1, YS-710-2, YS-710-3;
Yokohama S-600-2r USED FOR :
• Laminate press equipment
• Large material handling equipment - Heavy Industry
• Paper & pulp mill equipment
• Stamping press cushions in automotive plants
