    Norgren Industrial Air Spring PM / 31062 Double Convolution For Machine

    Ask Lasest Price
    Brand Name : Norgren
    Model Number : PM/31062
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    • Product Details
    • Company Profile

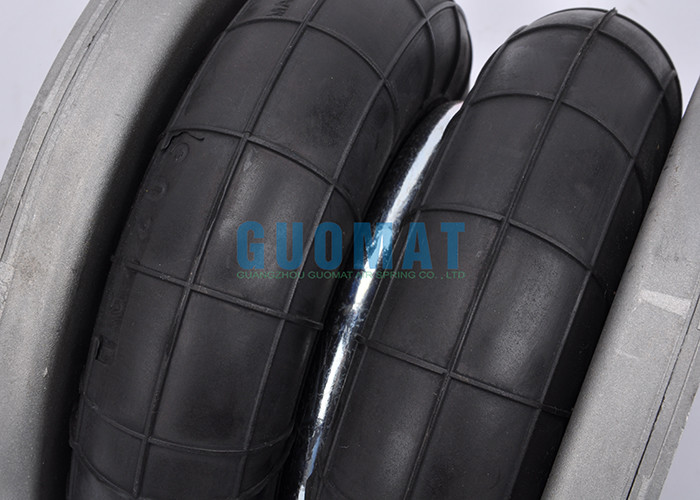

    Norgren Industrial Air Spring PM / 31062 Double Convolution For Machine

    Norgren Industrial Air Spring PM / 31062 Refer To YS-210-2 V Double Convolution For Machine


    Specifications and Detail Technical Parameters


    Nut / Blind Nut

    Top Cover Plate Screw (Nut) Tooth : 4pcs X M8


    Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M8


    Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet : G1/2


    Cover Plate

    Top Cover Plate Diameter (Width): 153.5 mm


    Bottom Cover Plate Diameter (Width): 153.5 mm


    Material top and bottom plate:Aluminium


    Rubber Bellows

    Diameter max at 7 bar:175MM


    Stroke of Rubber Bellows:80mm-195m


    Bumper block / Buffer block

    Without Bumper Block

    Girdle Hoop / Girdle Ring

    With Girdle Hoop :One Pieces of Girdle Hoop


    max load at 80 mm height and 8 bar:1415 daN


    GUOMAT Air Spring Refer to YS-V AIR SPRINGS​ model air bellows:


    Model NO.Model NO.

    Height(mm)


    GUOMATGu'an ZhenMin Height

    Max Height


    Standard Height


    Stroke


    YS-65-1 G


    YS-65-1 V


    36755439
    YS-115-1 GYS-115-1 V501055655
    YS-115-2 GYS-115-2 V601579097
    YS-130-1 GYS-130-1 V50855635
    YS-130-2 GYS-130-2 V501439093
    YS-160-1 GYS-160-1 V501057555
    YS-160-2 GYS-160-2 V68174110106
    YS-210-1 GYS-210-1 V501258075
    YS-210-2 GYS-210-2 V64234138170
    YS-250-1 GSYS-250-1 VS5016292112
    YS-250-2 GSYS-250-2 VS64234138186
    YS-250-3 GSYS-250-3 VS98385232287
    YS-252-1 GYS-252-1 V5016292112
    YS-252-2 GYS-252-2 V64234138186
    YS-252-3 GYS-252-3 V98385232287
    YS-280-1 GYS-280-1 V5016292112
    YS-280-2 GYS-280-2 V74260162186
    YS-280-3 GYS-280-3 V98385232287
    YS-320-1 GYS-320-1 V5017592125
    YS-320-2 GYS-320-2 V74260162186
    YS-320-3 GYS-320-3 V98385232287
    YS-355-1 GYS-355-1 V5017592125
    YS-355-2 GYS-355-2 V74260162186
    YS-355-3 GYS-355-3 V98385232287
    YS-405-1 GYS-405-1 V5017592125
    YS-405-2 GYS-405-2 V74260162186
    YS-405-3 GYS-405-3 V98385232287
    YS-460-1 GYS-460-1 V85210127125
    YS-460-2 GYS-460-2 V100290185190
    YS-460-3 GYS-460-3 V115402250287
    YS-510-1 GYS-510-1 V85210127125
    YS-510-2 GYS-510-2 V100290185190
    YS-510-3 GYS-510-3 V115402250287
    YS-560-1 GYS-560-1 V85210127125
    YS-560-2 GYS-560-2 V100290185190
    YS-560-3 GYS-560-3 V115402250287
    YS-610-1 GYS-610-1 V85210127125
    YS-610-2 GYS-610-2 V100290185190
    YS-610-2 GYS-610-2 V100290185190
    YS-610-3 GYS-610-3 V115402250287
    YS-660-1 GYS-660-1 V85210127125
    YS-660-2 GYS-660-2 V100290185190
    YS-660-3 GYS-660-3 V115402250287
    YS-710-1 GYS-710-1 V90220137125
    YS-710-2 GYS-710-2 V105295190190
    YS-710-3 GYS-710-3 V120412260287

    Norgren Industrial Air Spring PM / 31062 Double Convolution For MachineNorgren Industrial Air Spring PM / 31062 Double Convolution For MachineNorgren Industrial Air Spring PM / 31062 Double Convolution For MachineNorgren Industrial Air Spring PM / 31062 Double Convolution For Machine
