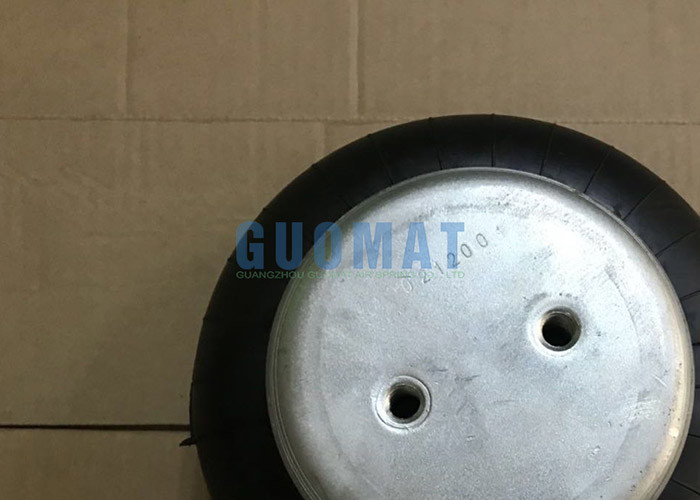

    Firestone W01-358-7451 One Convoluted Air Bags 1B5021 Bellow No.1B 7-540

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 1B5021
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    • Product Details
    • Company Profile

    Firestone W01-358-7451 One Convoluted Air Bags 1B5021 Bellow No.1B 7-540

    Firestone W01-358-7451 One Convoluted Air Bags 1B5021 Bellow No.1B 7-540


    Specifications and Technical Data


    GUOMAT Part Number:1B5021

    Operating Temperature: 57Cº to -54Cº

    Compressed Height: 90mm

    Top Cover Plate Diameter: 115mm

    Bottom Cover Plate Diameter: 115mm

    Distance Gas Hole Between Nut 22.25 mm

    Top Cover Plate Screw (Nut) Tooth :2pcX3/8-16UNC

    Bottom Cover Plate Screw (Nut) Tooth : 2pcX3/8-16UNC

    The Working Stroke : MAX 140 mm to MIN 50 mm

    Gas Hole / Air inlet : 1/4NPTF


    aximum Diameter @ 100 PSIG (mm)210.82Short DescriptionW01-358-7451, W013587451, WO1-358-7451, WO13587451
    Maximum Height (mm)140Manufacturer Part NumberW013587451
    Maximum Stroke (mm)76.2ManufacturerFirestone Industrial
    Minimum Usable Height (mm)50Style Number110B
    1 Inch (pounds)2090Style ShapeSingle Convolution
    3 Inch (pounds)1030Natural Frequency (@80 psig) (cpm)162
    Bead plate Type1400 CPM %80.2
    Blind Nut Centers (mm)44.45800 CPM %95.7
    Design Height4.51500 CPM %98.8
    40 psig (pounds)650Maximum Stroke (pounds)940
    60 psig (pounds)1010Material2-Ply Standard Cord
    80 psig (pounds)1390

    Firestone W01-358-7451 One Convoluted Air Bags 1B5021 Bellow No.1B 7-540Firestone W01-358-7451 One Convoluted Air Bags 1B5021 Bellow No.1B 7-540
