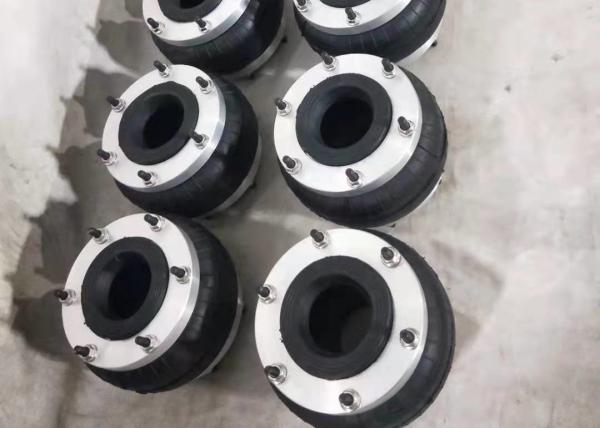

    TORPRESS 110 1B5082 Industrial Air Spring Rubber Bellows NO. 1B5082 Flange Connection

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 1B5082
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    • Product Details
    • Company Profile

    TORPRESS 110 1B5082 Industrial Air Spring Rubber Bellows NO. 1B5082 Flange Connection

    TORPRESS 110 1B5082 To Rubber bellows NO. 1B5082 Flange Connection


    Specifications and Technical Data


    TORPRESS 110

    GUOMAT Part Number:1B5082

    Operating Temperature: 57Cº to -54Cº

    Natural Height: 120mm

    Top Cover Plate Diameter: 138mm

    Bottom Cover Plate Diameter: 138mm

    Distance of the screw:120mm

    Top Cover Plate Screw (Nut) Tooth :6pcsXM8X1.25

    Bottom Cover Plate Screw (Nut) Tooth :6pcsXM8X1.25

    The Working Stroke : MAX 200 mm to MIN 80 mm


    MODEL

    STAN- DARD Code


    HIGH- TEMP Code


    Connection

    Max

    OD

    MM

    Min.

    Height

    MM

    Max.

    Height

    MM

    Total Travel

    MM

    Thread Air tion Hole

    Connecting bolts or holes

    N.

    Connecting bolts or holes

    Ø

    169302993086P11534691451/4” NPT23/8” - 16 UNC
    13194047NoP116550110601/4” NPT23/8” - 16 UNC
    1109311393114P1210511511001/4” NPT23/8” - 16 UNC
    1108854093079F121045145No6M 8 x 1.25
    1108882089023F121045145No6M 8 x 1.25
    11693027NoP1231461521061/4” NPT23/8” - 16 UNC
    199401695015P2325511511001/4” NPT23/8” - 16 UNC
    1994014NoF232543143No12M8x1

    TORPRESS AIR SPRING

    BELLOWS ACTUATORS

    MODEL

    STAN- DARDHIGH- TEMPConnec- Max Min. Max. tion OD Height Height
    CodeCodemm mm mm
    169302993086P1 153 46 91
    13194047———P1 165 50 110
    9311393114P1 210 51 151
    1108854093079F1 210 45 145
    8882089023F1 210 45 145
    11693027———P1 231 46 152
    9401695015P2 325 51 151
    94014———F2 325 43 143
    23 B202665———F1 165 65 205
    268418189422F2 220 85 245
    208660088538F2 255 80 265
    24593740202344F1 27 82570 85 310
    94091———P2 325 88 288
    8854489425F2 325 80 280
    21 BR89457———F2 380 80 290
    21A BR97300———F2 435 85 315
    21B BR92154———F2 440 85 385
    28 BR92527———F2 445 80 310
    28 B90559———F2 485 85 375
    93056———P3 570 90 330
    2993166———F2 570 80 320
    3195210———F2 700 85 700
    325203332———F2 400 80 500
    32292615———P4 310 133 408
    879948173———F2 310 125 400
    32188110———F2 380 125 400

    TORPRESS 110 1B5082 Industrial Air Spring Rubber Bellows NO. 1B5082 Flange Connection


    Style NumberDesign HeightLoad (at Design Height) at:Natural Frequency% of Isolation at Forced Frequency
    ••40 PSIG (pounds)60 PSIG (pounds)80 PSIG (pounds)(@ 80 PSIG) fn(cpm)400 CPM %800 CPM %1500 CPM %
    SINGLE CONVOLUTION
    163.042064088023790.397.4
    1313.55508501,17018174.494.698.5
    1605.56501,0101,39012489.497.599.3
    1104.56501,0101,39016280.295.798.8
    1164.58501,3301,83016380.295.798.8
    116-15.59401,4101,93013986.396.999.1
    1154.51,2101,8802,54015183.496.399.0
