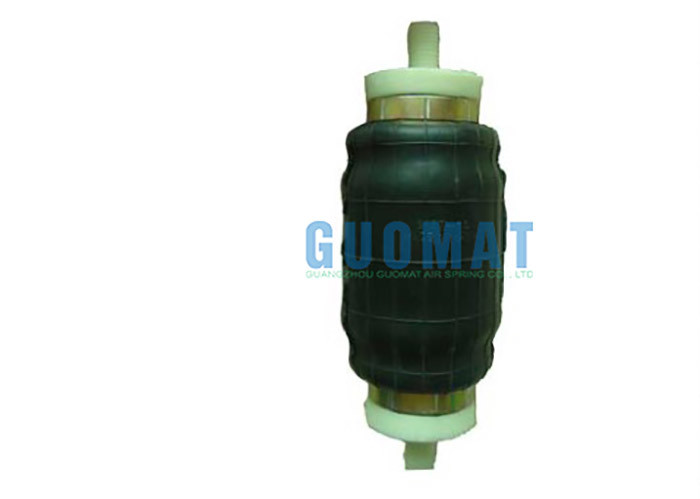

    CONTI Sleeve Type Suspension Air Spring SK 37-10 P02 For Small Machine

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : SK 37-10 P02
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union,Paypal and Others
    Supply Ability : 10000 pcs / week
    Delivery Time : 2 - 8 Work Days
    • Product Details
    • Company Profile

    CONTI Sleeve Type Suspension Air Spring SK 37-10 P02 For Small Machine

    CONTI Sleeve Type Air Spring SK 37-10 P02 Suspension Air Spring For Small Machine


    Cross OEM Of this item:

    GUOMAT:G
    3089

    CONTITECH SK37-10 P02

    Min. pressure:0,3 bar

    Return force to min. height:≤ 150 N.

    Overall weight with clamped plates:0.41 kg

    Max Hight=160mm

    Min Highn=65mm

    Vibration isolation - dynamic characteristic values

    Design height H: recommended 60mm.

    Pneumatic application - static characteristic values Force F [kN]

    With brass stud on both ends, G 1/8 air inlet


    Service instructions M16 = 11-14 Nm
    G 1/8 = Handtight plus one turn

    Descripition and Specifications Of SK37-6 P02:


    Package Size:3.6*3.6*5(in.)Package Size:92mm*92mm*127mm
    Net Weight:0.41KGLower Plate OD:61 MM
    Gross Weight:0.8 KGExtended Height :160 MM
    StudM16Upper Plate OD :61MM
    air inletG 1/8Rubber Bellows Max OD100MM
    Installation space needed120mmStroke95mm



    Packing List of SK37-6 P02 Air Spring :


    DescriptionPCSNet WeightPackage WeightGross WeightLength
    (cm)
    Width
    (cm)
    Height
    (cm)
    Measurememt
    (cbm)
    Air Suspension10.41 kg0.4 kg0.81kg129.29.20.00102
    Shipping TermsBy DHL/UPS/FEDEX/TNT/AIRWAY/LCL/FCL or By Sea. It will take about 1 to 4 working days to reach By Express.
    Payment TermsT/T, Western Union,Paypal and Others



    CONTI Sleeve Type Suspension Air Spring SK 37-10 P02 For Small MachineCONTI Sleeve Type Suspension Air Spring SK 37-10 P02 For Small Machine
