    Continental Contitech Industrial Air Spring FS 120-9 CI Refer To GUOMAT 1B120-9 Reduce Noise

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 1B120-9
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union,Paypal or Others
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    • Product Details
    • Company Profile

    Continental Contitech Industrial Air Spring FS 120-9 CI Refer To GUOMAT 1B120-9 Reduce Noise

    Continental Contitech FS 120-9 CI Refer To GUOMAT1B120-9 Industrial Air Spring Reduce Noise


    Product Description


    Technical Data

    • Min. pressure – 0 psi
    • Return force to min. height – <45LBF/200N
    • Overall Weight – 4.4LB
    • Min. Design Height – 1.97inch/50MM
    • Inst.Space Required – 9.06inch/230MM
    • Max. Stroke – 3.34inch/85MM

    GUOMAT:1B120-9


    OEM Original Equipment Manufacturer:FS 120-9 CI

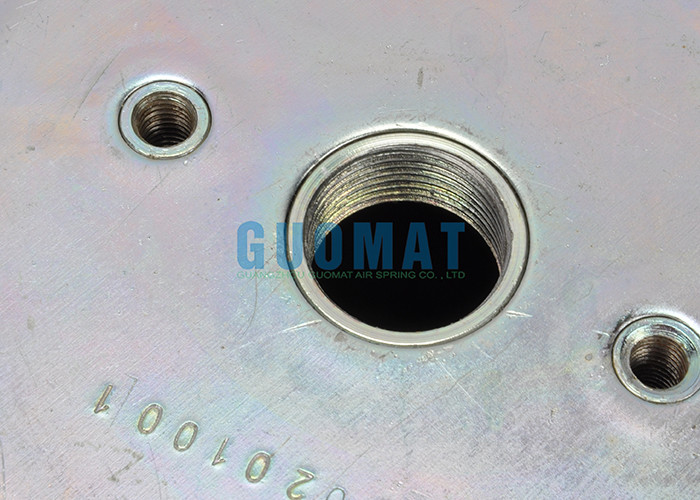

    AIR INLET 3/4 NPT:

    Firestone : W01-M58-6165

    Contitech :: FS 120-9

    Dunlop(FR) : 8’’x1 S08101

    Bosch : 822419003

    Festo : EB-215-80

    Norgren : PM/31081(8x1)

    Weforma : WBE 300-E1

    Airtech : 140293

    Airtech : 111003/1B-190FB :

    Megatech :1S120-9 3/4 M8


    AIR INLET 1/4 NPT:

    Firestone : W01-M58-6166

    Contitech : FS 120-9

    Dunlop(FR) : 8’’x1 S08100

    Bosch : 822419008

    Weforma : WBE 300-E2


    PNEUMATIC APPLICATION – STATIC CHARACTERISTIC VALUES


    Force F [lbf]
    Pressure p [psi]406080100Vol. V [in.³]
    H 4.50 in./114.3MM728113015701970110
    H 4.00 in./101.6MM905140019402390100
    H 3.50 in./88.9MM105016102240274090
    H 3.00 in./76.2MM117017702450302075
    H 2.50 in./63.5MM127019002630326057

    VIBRATION ISOLATION – DYNAMIC CHARACTERISTICS


    Pressure p [psi]406080100120Vol. V [in.³]
    Force (load) F [lbf]8011,2401,7002,1302,530110
    Spring rate c [lbf/in]7099491,1901,4301,670110
    Natural Frequency f0 [Hz]2.92.82.72.62.6110
    Design height H: recommended 4.33 inch, minimum 3.54 inch

    PURCHASE ORDER DATA


    TypeAir InletOrder No.
    with crimped plates

    3/4 NPT

    0 in. excentrical

    75349
    with crimped plates

    1/4 NPT

    0 in. excentrical

    75360

    SERVICE INSTRUCTIONS


    Threadmax. Torque
    3/8-16 UNC20 lbf ft
    1/4 NPT20 lbf ft
    3/4 NPT40 lbf ft
