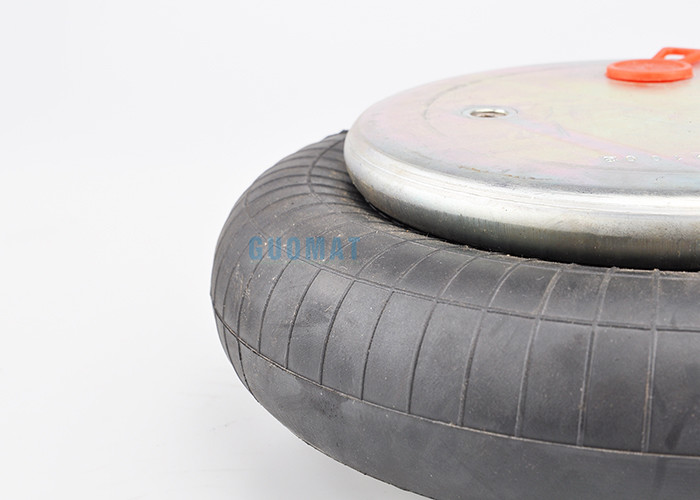

Continental Contitech FS 200-10 CI Air Bellows As An Isolation Buffer

Product Description

Technical Data

• Min. pressure – 0 psi
• Return force to min. height – <45LBF/200N
• Overall Weight – 4.4LB
• Min. Design Height – 2.01inch / 51MM
• Inst.Space Required – 9.65inch / 245 MM
• Max. Stroke – 3.9inch / 99MM
• Top Cover Plate Diameter 160mm
• Bottom Cover Plate Diameter 160 mm
• Screw Center Distance 89 mm
• Distance Gas Hole Between Nut 44.5 mm
• Gas Hole 1/4NPTF
• Screw (Nut) Tooth 2pcsX3/8-16UNC

GUOMAT:1B200-10

OEM Original Equipment Manufacturer:FS 200-10 CI

PNEUMATIC APPLICATION – STATIC CHARACTERISTIC VALUES

VIBRATION ISOLATION – DYNAMIC CHARACTERISTICS

PURCHASE ORDER DATA

SERVICE INSTRUCTIONS

Features:

1,It can be used with height adjustment valve, which can always maintain a constant height to prevent load fluctuations.

2, It can be used together with auxiliary tank and throttle valve to obtain excellent damping effect. And it can reduce the resonance amplitude.

3, This air spring is simple in structure and easy to install and disassemble.
