Mechanical Punch Rubber Air Spring Reference To S-350-4 / S-200-3 /
S-100-3 / S-90-3
S-350-4 / S-200-3 / S-100-3 / S-90-3 can fit for many kinds of
Mechanical Punch equipment.
S-350-4 / S-200-3 / S-100-3 / S-90-3 Mechanical Punch air spring is divided into triple, four, five Convolutions. Punch
air spring air cushion made of natural rubber through a series of
processes made of rubber bladder, used in the punch on the air
spring manufacturing process than ordinary industrial air springs
to be much more complex, so the cost will be Higher, the price is
naturally much higher than the other. In the middle with stainless
steel rims, S-200-3 / S-100-3 / S-90-3 three with two rims, S-350-4 four rims with three rims.
Detailed Parameter Table of S-350-4 / S-200-3 / S-100-3 / S-90-3:
| GUOMAT NO. | Reference No. | Hight H(mm) | Commonly Maximum Stroke(mm) | The Largest Diameter When Compressed(mm) |
| Design High(mm) | Maximum High(mm) | Minimum Height(mm) |
| F-350-4 | S-350-4 | 218 | 336 | 118 | ±85 | 410 |
| F-200-3 | S-200-3 | 152 | 232 | 82 | ±53 | 260 |
| F-100-4 | S-100-4 | 206 | 296 | 121 | ±60 | 160 |
| F-90-3 | S-90-3 | 152 | 222 | 87 | ±45 | 160 |
| GUOMAT NO. | Reference No. | Standard Height,Internal Pressure 0.49 M pa When The General Value | Using Maximum Internal Pressure (M pa) | Internal Pressure (M pa) |
| Effective Area (Cm2) | Volume(L) | Load (K n) | Dynamic Spring Parameters (N/Min) | Vibration Frequency (Hz) |
| F-350-4 | S-350-4 | 960 | 21 | 47.1 | 471 | 1.6 | 0.88 | 3.9-4.9 |
| F-200-3 | S-200-3 | 315 | 5.2 | 15.4 | 235 | 2 | 0.88 | 2.9-3.9 |
| F-100-4 | S-100-4 | 79 | 1.95 | 3.9 | 59 | 1.9 | 0.88 | 2.9-3.9 |
| F-90-3 | S-90-3 | 79 | 1.4 | 3.9 | 78 | 2.2 | 0.88 | 2.9-3.9 |
Description about the Mechanical Punch equipment:
S-350-4 / S-200-3 / S-100-3 / S-90-3 can use in the most common mechanical press.Such air springs can
effectively reduce the vibration, there is a more humanistic role
is to reduce noise, is our staff in a relatively quiet environment,
to protect the punch equipment and also protect the workers.
The most common mechanical press driven by motor crankshaft
connecting rod, eccentric gear (or wrist joints) to make the slider
move, and punching machine drive system characteristics to
determine the speed in all parts of the stroke and force
application. And the mechanical punch depends on the system, the
lower the dead point, the greater the force. When considering the
same time, mechanical punch can have more impact and is more
commonly used in industrial applications.
Most traditional mechanical press is the use of induction motor,
the early mechanical press with v motor drive, adjust the coupled
mechanical and electrical flow to adjust the torque, later will use
inverter driven induction motor, induction motor used in the press
will have a flywheel energy storage component, regardless of
whether the processing, the flywheel will continue running, to
process a flywheel is needed to drive the slider with a clutch to
make operation. Later also useful servo motor as the power source
of the servo press , the servo press without flywheel energy
storage, processing when the drive to work, and can be determined
in accordance with the processing characteristics of the slider
velocity curve in different locations, can be a difficult process.

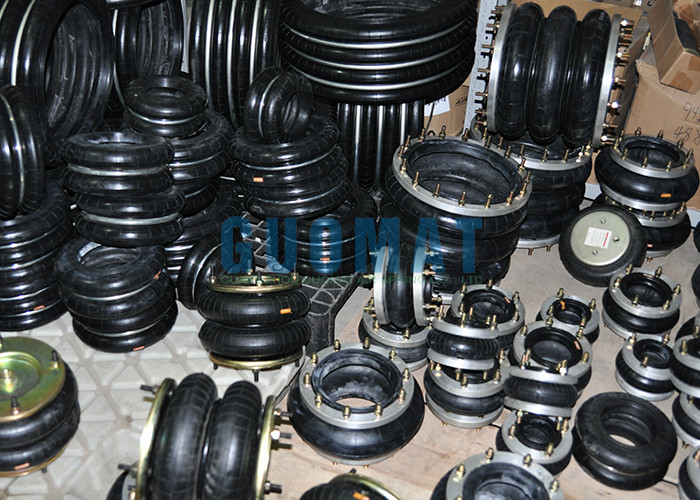

Product detail photos Of S-350-4 / S-200-3 / S-100-3 / S-90-3:
