    Single Action Punch Rubber Air Spring GUOMAT F-600-5 Five Convoluted 600-5

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : S-600-5
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union,paypal or others
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    • Product Details
    • Company Profile

    Single Action Punch Rubber Air Spring GUOMAT F-600-5 Five Convoluted 600-5

    Single Action Punch Rubber Air Spring GUOMAT F-600-5 Five Convoluted 600-5


    GUOMAT F-600-5 can fit for many kinds of punching press equipment.


    Single action punch and double action punch


    Another type of punch press is a single action punch and double action punch (there are three action punch, but very rare). Single-action punch only one slider, and double-action punch has two sliders, a slider can be fixed workpiece to prevent wrinkles, and then a slider for stamping processing, suitable for deep-drawn rigid materials operations.


    GUOMAT F-600-5 items Detailed Parameter Table:


    GUOMAT NO.Reference No.Hight H(mm)Commonly Maximum Stroke(mm)The Largest Diameter When Compressed(mm)
    Design High(mm)Maximum High(mm)Minimum Height(mm)
    F-600-5S-600-5276456156±113660

    GUOMAT NO.Reference No.Standard Height,Internal Pressure 0.49 M pa When The General ValueUsing Maximum Internal Pressure (M pa)Internal Pressure (M pa)
    Effective Area (Cm2)Volume(L)Load (K n)Dynamic Spring Parameters (N/Min)Vibration Frequency (Hz)
    F-600-5S-600-5283076.6138.310101.30.693.9-4.9

    According to the transmission classification


    Mechanical punch the power source is the motor, the middle need to have a transmission mechanism will be converted to rotary motion of the slider reciprocating linear motion, press characteristics will vary according to the transmission mechanism.


    The most common type of mechanical punch is crankshaft (with eccentric shaft) to drive, and this drive is also suitable for many different types of processing.


    Link Punch is the connecting rod for the transmission mechanism, connecting rod punch is characterized by rapid decline in the slider, slow processing, rapid rise, save time and costs, but also in the vicinity of the bottom dead end great effort.


    Toggle knuckle press is based on a toggle joint as a transmission mechanism and has a short stay when the slider is moved to the bottom (referred to as bottom dead center), and is suitable for cold forging processing. There are also knuckles and toggle knuckle joint punches

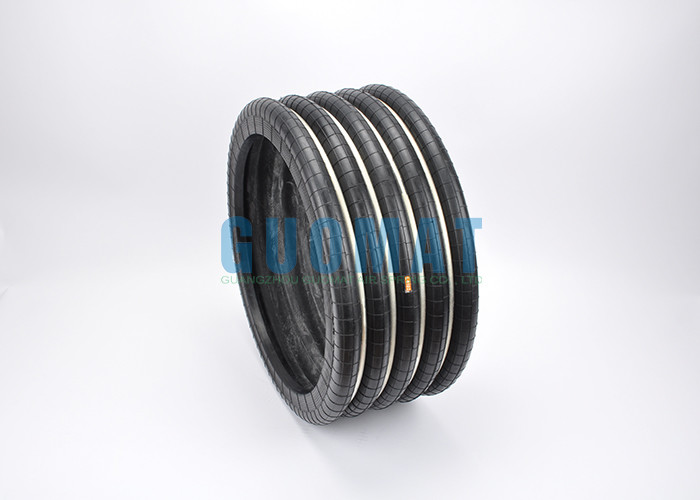

    GUOMAT F-600-5 Product detail photos:


    Single Action Punch Rubber Air Spring GUOMAT F-600-5 Five Convoluted 600-5Single Action Punch Rubber Air Spring GUOMAT F-600-5 Five Convoluted 600-5Single Action Punch Rubber Air Spring GUOMAT F-600-5 Five Convoluted 600-5
