Firestone W01 358 9373**SA​ Truck Air Spring Bag For Hendrickson 57122-2 - Watson & Chalin AS0127G

Product Information

GUOMAT NO. : 1T9373 SA

VEHICLE TYPE: Truck

POSITION: The Floating Bridge

OEM REFERENCES

FIRESTONE 1T15MT-8 / 1T15MT 8 / 1T15MT8
W01 358 9373**SA / W01-358-9373 / W013589373
Goodyear Part Number:1R12-403 / 1S12-030
Goodyear Bellows Number:566-24-3-097 / 566-24-1-012
ContiTech 910-175 P440 / 910 175P440 / 910175P440
ContiTech 910-175 P519 910 175 P519 / 910175P519
Goodyear 566-24-1-019 / 566 24 1 019 / 566241019
Goodyear 1R12-403 / 1R12 403 / 1R12403
Goodyear 566-24-1-001 / 566 24 1 001 / 566241001
Goodyear 1S12-030 / 1S12 030 / 1S12030
Goodyear 566-24-1-012 / 566 24 1012 / 566241012
AIRTECH 39373 P 122202
Airtech 39373K

VEHICLE OEM REFERENCES

Hendrickson Truck Number:57122-2 / 571222
Hendrickson FSIP OEM: W014559373
Hendrickson Truck HAS360
Hendrickson Truck HAS400
Hendrickson Truck HAS402
Hendrickson Truck HAS460
Watson & Chalin AS0127G
Watson & Chalin AS0141
Triangle Bellows Number:6391
Note:Bracket 6042 / 6044 - new

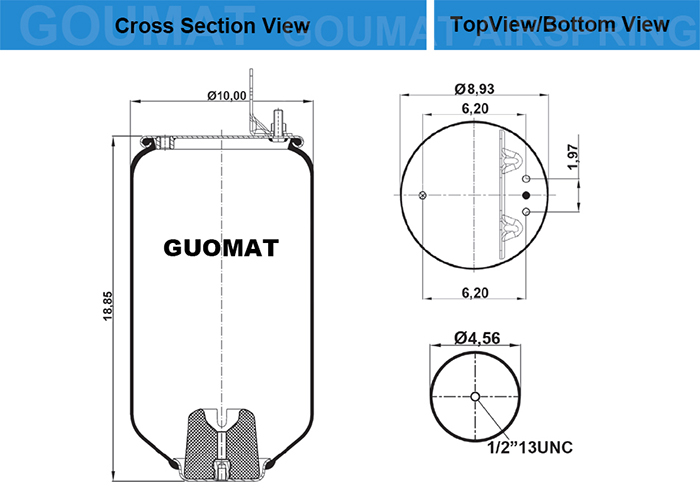

Technical Parameters

Top Plate Number:3313
Piston Number:9538

Extended Height:22.00
Compressed Height: 7.60
Top Plate Width:9.00
Piston Width:10.00
Firestone Bellows Number:1T15MT-8
Bellows #: 1T15M-8
Assembly Weight: 16.2 lbs
Design Height: 12.5-13.5 inches
Minimum Jounce Height: 7.5 inches
Maximum Rebound Height: 21.69 inches
Loading Capacity at 20 psig: 1,510 lbsf
Loading Capacity at 60 psig: 4,530 lbsf
Loading Capacity at 90 psig: 6,795 lbsf
Natural Frequency: Hz
Maximum Diameter: 12.7 inches
Material Type: N/A
Operating Temperature: 57Co to -54Co

ABOUT US...

Guangzhou Guomat Air Spring CO., Ltd.is located in Guangzhou, about 15min’s drive from BAIYUN AIRPORT. Our mainly products air spring, rubber bellow, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.
Our goal is to make your choice easier and save your money. We serve customers world-wide by offering quality goods at unbeatable prices, all while maintaining a focus on superior customer service. PLEASE FEEL FREE TO ASKANY QUESTIONS. All questions will be answered promptly (usually in less than 24 hours except weekends and holidays)
Give us your trust and we'll help you to repair or update your car!

The warranty period of Air Spring

GUOMAT air spring made of high quality materials(natural rubber), the warranty period of One Year.

Our air spring provides high performance and dynamics while ensuring perfect grip and maximum driving comfort in any case. In addition to improving the stability of the vehicle, they can reduce the number of vibratory movements due to road defects to optimize the comfort of passengers and allow you to ride smoothly.

Our dampers are designed to provide excellent ride quality by quickly adjusting to different road and vehicle conditions while providing ultimate safety and functionality.

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
