    ContiTech 910D21A324​ Truck Spring Air Bags For Triangle 8324 - Watson & Chalin AS0096

    Ask Lasest Price
    Brand Name : ContiTech
    Model Number : 910D21A324​
    Certification : ISO/TS16949:2009
    Price : $59
    Payment Terms : T/T, L/C,PayPal
    Supply Ability : 1000
    Delivery Time : 5-10 work days
    • Product Details
    • Company Profile

    ContiTech 910D21A324​ Truck Spring Air Bags For Triangle 8324 - Watson & Chalin AS0096

    ContiTech 910D21A324​ Truck Air Spring Bag For Triangle 8324 - Watson & Chalin AS0096


    Product Information


    GUOMAT NO. : 1T9250

    VEHICLE TYPE: Truck

    POSITION: The Floating Bridge


    OEM REFERENCES


    FIRESTONE 1T15V-11 / 1T15V 11 / 1T15V11
    W01-358-9250 / W01 358 9250 / W013589250
    GOODYEAR 1R13-115 / 1R13 115 / 1R13115
    566-26-3-044 / 566 26 3 044 / 566263044
    ContiTech 910D21A324


    VEHICLE OEM REFERENCES


    RIDEWELL 1003589250C
    TRIANGLE 8324 6371
    Triangle Part Number:8324 / 4349
    Triangle Bellows Number:6371
    Watson & Chalin AS0096
    Tuthill Technology 6427
    SAF Holland 57009250
    Silent Drive

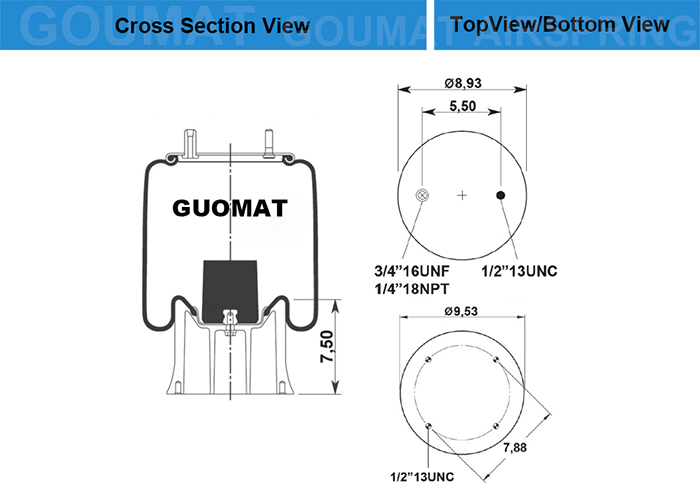

    Technical Parameters


    Top Plate Number:3235
    Piston Number:9803

    Extended Height:27.20
    Compressed Height: 9.90
    Top Plate Width:9.00
    Piston Width:9.53
    Assembly Weight: 23.7 lbs
    Design Height: 14.5-18.5 inches
    Minimum Jounce Height: 9.85 inches
    Loading Capacity at 20 psig: 1,624 lbsf
    Loading Capacity at 60 psig: 4,872 lbsf
    Loading Capacity at 90 psig: 7,308 lbsf
    Natural Frequency: Hz
    Maximum Diameter: 13.3 inches
    Material Type: Natural Rubber
    Operating Temperature: 57Co to -54Co
