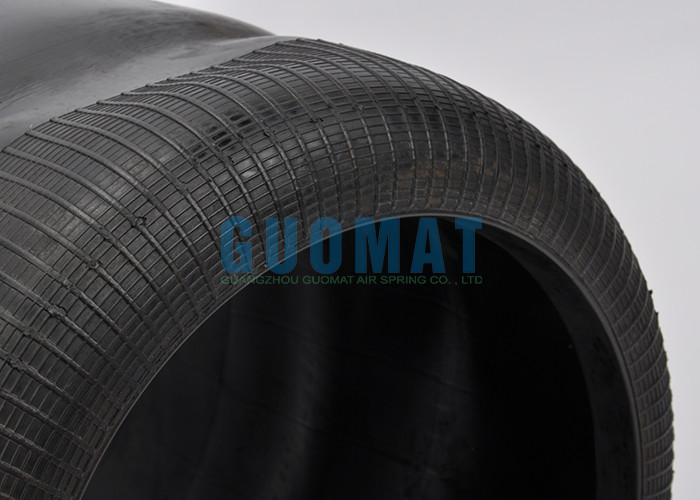

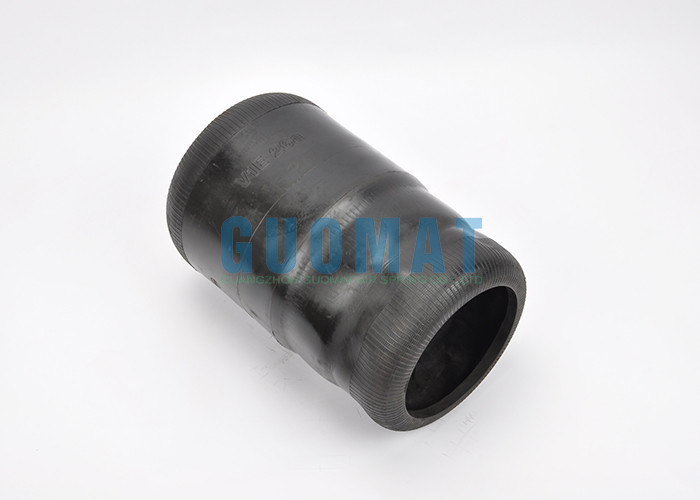

    Rubber Air Spring Bellows Of Vibracoustic V1E26a Cross Phoenix 1E26A For BOVA 234908

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : V1E26a
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union,Paypal and Others
    Supply Ability : 10000 pcs / week
    Delivery Time : 2 - 8 Work Days
    • Product Details
    • Company Profile

    Rubber Air Spring Bellows Of Vibracoustic V1E26a Cross Phoenix 1E26A For BOVA 234908

    Rubber Bellows Of Vibracoustic V1E26a Cross Phoenix 1E26A For BOVA 234908


    OEM of V1E26a Rubber


    Product Description
    E26A rubber air spring

    Model NO.: E26A
    Certification: ISO/TS16949
    Position: Rear
    Type: Suspension Spring
    Weight: 2kg
    Measurement D Max: 325mm
    Transport Package: Neutral Packaging
    Origin: China
    Material: Rubber
    Application: Bova
    OEM: Yes
    Phoenix: 1e26A
    Design Height: 260mm
    Specification: 1.85kg
    HS Code: 87088090000


    Cross Information


    GUOMAT:GV1E26a

    Vibracoustic:V1E26a

    Vibracoustic:V 1 E 26 A

    Phoenix:1E26A
    BOVA:234908
    Bova B.23.49.08
    Wijlhuizen 33.248

    Phoenix 1 E 26 A


    OEM Information Technical data

    Weight:1.85kg
    Design height:260mm
    Deflection(Height min):160mm
    Deflection(Height max):420mm
    Measurement d max:325mm
    Space required:350mm
    Loading cap.at 5.0bar:26kn
    Loading cap.at 7.0bar:37.2kn


    Introduction:


    V1E26a air spring is a sealed container filled with compressed air, the use of gas compressibility to achieve its elastic effect. Air spring has the ideal non-linear elastic characteristics, the installation of height adjustment device, the body height does not change with the load changes, spring stiffness can be designed to be low, ride comfort is good.


    principle:


    V1E26a air spring works in a closed pressure cylinder filled with inert gas or oil and gas mixture, so that the pressure inside the chamber several times higher than the atmospheric pressure or several times, the use of piston rod cross-sectional area is less than the cross-sectional area of the piston The resulting pressure difference to achieve the movement of the piston rod. Because the principle is fundamentally different, gas spring than ordinary spring has a very significant advantages: the speed is relatively slow, little change in dynamic force (usually in 1: 1.2 or less), easy to control.


    Rubber Air Spring Bellows Of Vibracoustic V1E26a Cross Phoenix 1E26A For BOVA 234908Rubber Air Spring Bellows Of Vibracoustic V1E26a Cross Phoenix 1E26A For BOVA 234908Rubber Air Spring Bellows Of Vibracoustic V1E26a Cross Phoenix 1E26A For BOVA 234908
