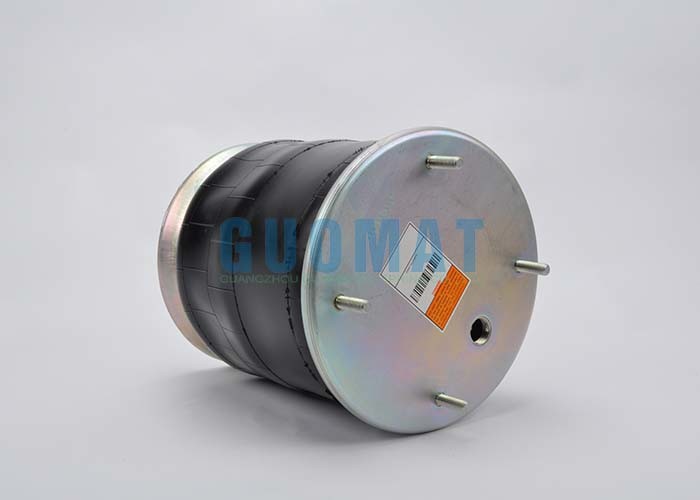

Contitech 4008NP01 Truck Air Springs Firestone W01M588765 For
Weweler US07380
OEM Cross Number:
GUOAMT NO.:1T4008NP01
CONTITECH 4008 N P01 / 4008NP01 / 4008N P01
FIRESTONE 1T19F-12 / 1T19F 12 / 1T19F12
FIRESTONE W01 M58 8765 / W01-M58-8765 / W01M588765
GOODYEAR 1R13-805 / 1R13 805 / 1R13805
PHOENIX 1D 28 C-12 / 1D28C12 / 1D28C 12
DUNLOP FR D13B03
CF GOMMA 1T19E-3 97343 / 1T19E3 / 1T19E 3
OEM Suspension Supplier Number:
FRUEHAUF UJB 0305-001
R.O.R/MERITOR 21221349
S.A.F 3.229.0024.00
SAMRO H25000361
SMB UJB 0305
WEWELER US07380
Wabco Cross Other Manufacturer
Old number New number Contitech Goodyear Vehicle manufacturer
951 711 705 0 951 811 705 0 4004 N P02 1R11-705 SAF AR 414E
951 714 747 0 951 814 747 0 725 N P02 1R14-747 Gigant
951 713 732 0 951 813 732 0 4912 N P07 1R13-732 Fruehauf/SMB
951 714 753 0 951 814 753 0 4913 N P02 1R14-753 Scania Series 4
951 714 748 0 951 814 748 0 881 MB 1R14-748 BPW 36
951 714 728 0 951 814 728 0 4008 NP 01
912 NP 01
1R14-728 SAF 2926 V
951 711 773 0 951 811 773 0 4157 NP 08 1R11-773 Fruehauf/SMB,
Neway
Old number New number Contitech Goodyear Vehicle manufacturer
896 130 000 4 896 130 110 4 884 N 9002 IVE-CO , MAN, MB, RVI,
Pegaso
896 130 007 4 896 130 146 4 673 N 9051 DAF, IVE-CO, VOL-VO
896 130 008 4 896 130 153 4 882 N1 9048 MAN
896 130 013 4 896 130 106 4 720 N 9008 BPW, Dennis, IVE-CO, MAN,
MB, Pegaso, VOL-VO
951 711 763 0 951 811 763 0 940 MB 1R11-763 BPW 30K
951 712 701 0 951 812 701 0 4159 N P06 1R12-701 Montenegro, Samro
951 712 721 0 951 812 721 0 4159 N P09 1R12-721 CAR, Fruehauf,
Samro,
Trouillet, Viberti
951 713 714 0 951 813 714 0 4911 N P03 1R13-739 RVI Magnum/Premium
951 714 727 0 951 814 727 0 4813 N P07 1R14-727 Scania
951 714 756 0 951 814 756 0 725 N P03 1R14-756 Gigant
951 714 757 0 951 814 757 0 - 1R14-757 BPW 36K
951 795 050 0 951 895 050 0 4390 N P01 9505 B Actros
951 795 060 0 951 895 060 0 4390 N P02 9506 M B Actros
The Composition Of Reversible Sleeve Models Rolling Air Spring
Element Has The Following Aspects-GUOMAT
❶ screw bolt / Stud - Produced as a permanent part of the Cover Plate assembly for
maximum strength and durability. It is used to attach the air
spring to the vehicle’s suspension system.
❷ Combined link rod / Combo Stud – Used as the dual purpose of installing the air spring to the
suspension system and providing the air inflation.
❸ Cover Plate - Curled up to more durable bellows design and the largest quality
control in the factory. Allows 100% of the leak test before
shipment.
❹Rubber Bellows - Air Bellows includes four layers of materials: an inner layer,
two layer cord - reinforced fabrics, and a cover. Construction of a
natural rubber provides – 65F functional properties.
❺ Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent
major damage to the vehicle or suspension in the event of a sudden
loss of air pressure in the spring.
❻ Bottom Piston - Provides a low installation of air spring. To control the
pressure in a changing under the load characteristics of spring.
❼Piston Bolt - Connecting the piston to the bellows. Sometimes extensions as an
additional vehicle suspension spring.
