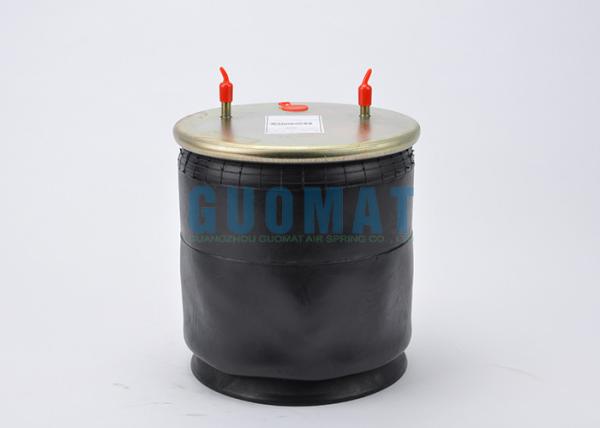

AIRTECH Rubber Truck Air Springs 3813-06K FIRESTONE 1T19L11 For TEMPLIN 040306102070

GUANGZHOU GUOMAT AIR SPRING CO. , LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap AIRTECH Rubber Truck Air Springs 3813-06K FIRESTONE 1T19L11 For TEMPLIN 040306102070 from wholesalers

    Buy cheap AIRTECH Rubber Truck Air Springs 3813-06K FIRESTONE 1T19L11 For TEMPLIN 040306102070 from wholesalers
    • Buy cheap AIRTECH Rubber Truck Air Springs 3813-06K FIRESTONE 1T19L11 For TEMPLIN 040306102070 from wholesalers
    • Buy cheap AIRTECH Rubber Truck Air Springs 3813-06K FIRESTONE 1T19L11 For TEMPLIN 040306102070 from wholesalers
    • Buy cheap AIRTECH Rubber Truck Air Springs 3813-06K FIRESTONE 1T19L11 For TEMPLIN 040306102070 from wholesalers
    • Buy cheap AIRTECH Rubber Truck Air Springs 3813-06K FIRESTONE 1T19L11 For TEMPLIN 040306102070 from wholesalers

    AIRTECH Rubber Truck Air Springs 3813-06K FIRESTONE 1T19L11 For TEMPLIN 040306102070

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 3813-01K / 130122
    Certification : ISO/TS16949
    Price : $59-159/pc
    Payment Terms : T/T, Western Union,paypal or others
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    • Product Details
    • Company Profile

    AIRTECH Rubber Truck Air Springs 3813-06K FIRESTONE 1T19L11 For TEMPLIN 040306102070

    AIRTECH Rubber Spring 3813-06K FIRESTONE 1T19L11 For TEMPLIN Number 040306102070


    OEM Cross Number:


    GUOAMT NO.:1T3813-06K

    AIRTECH 3813-06 K 132402
    AIRTECH 381306K
    FIRESTONE 1T19L11


    PE Automotive Number: 08413751A
    TEMPLIN Number: 040306102160
    PE Automotive Number: 08411473A
    TEMPLIN Number: 040306102150
    PE Automotive Number: 08410172A
    TEMPLIN Number: 040306102070
    PE Automotive Number: 08410152A
    DT Number: 510220
    TEMPLIN Number: 040306002630
    AIRTECH Number: 39158KPP
    TEMPLIN Number: 040306002090
    AIRTECH Number: 391322K
    TEMPLIN Number: 040306002080
    AIRTECH Number: 391319K
    TEMPLIN Number: 040306002070
    TEMPLIN Number: 040206101160
    AIRTECH Number: 39122K
    TEMPLIN Number: 040206001480
    AIRTECH Number: 381104P
    AIRTECH Number: 3813P
    AIRTECH Number: 381103P
    AIRTECH Number: 3813KPP
    TEMPLIN Number: 040206001280
    AIRTECH Number: 381102P
    AIRTECH Number: 3813K
    TEMPLIN Number: 040206001080
    AIRTECH Number: 381102K
    AIRTECH Number: 381312P
    TEMPLIN Number: 040106100330
    AIRTECH Number: 381101P
    AIRTECH Number: 381310P
    TEMPLIN Number: 040106100070
    AIRTECH Number: 381101K
    AIRTECH Number: 381309KPP
    TEMPLIN Number: 040106000670
    AIRTECH Number: 36885K
    AIRTECH Number: 381308K
    AIRTECH Number: 34813P
    AIRTECH Number: 381307K
    AIRTECH Number: 34813K
    AIRTECH Number: 381305P
    AIRTECH Number: 381305K
    TEMPLIN Number: 040606106330
    AIRTECH Number: 381301P
    TEMPLIN Number: 040606106070
    AIRTECH Number: 381301K
    TEMPLIN Number: 040606006670
    AIRTECH Number: 3811P
    TEMPLIN Number: 040506005890
    AIRTECH Number: 3811K
    AIRTECH Number: 381107K
    TEMPLIN Number: 040506005810
    AIRTECH Number: 381106K
    TEMPLIN Number: 040506005480
    AIRTECH Number: 381105P


    OEM Suspension Supplier Number:


    TEMPLIN Number: 040506005290
    TEMPLIN Number: 040506005270
    TEMPLIN Number: 040406003480
    TEMPLIN Number: 040406003370
    TEMPLIN Number: 040406003280
    TEMPLIN Number: 040406003070
    TEMPLIN Number: 040306102370
    TEMPLIN Number: 040306102180

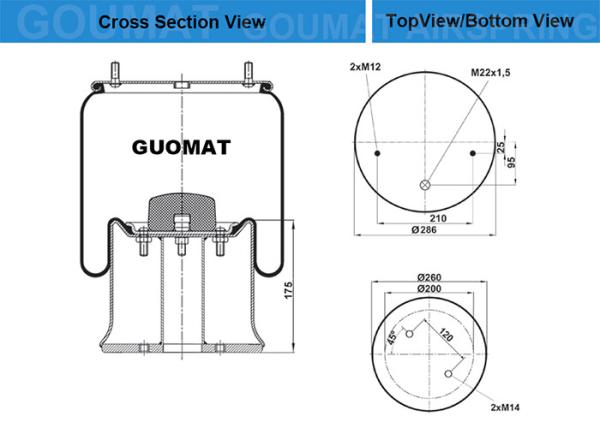

    The Composition Of Reversible Sleeve Models Rolling Air Spring Element Has The Following Aspects-GUOMAT


    screw bolt / Stud - Produced as a permanent part of the Cover Plate assembly for maximum strength and durability. It is used to attach the air spring to the vehicle’s suspension system.


    Combined link rod / Combo Stud – Used as the dual purpose of installing the air spring to the suspension system and providing the air inflation.


    Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.


    Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.


    Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.


    Bottom Piston - Provides a low installation of air spring. To control the pressure in a changing under the load characteristics of spring.


    Piston Bolt - Connecting the piston to the bellows. Sometimes extensions as an additional vehicle suspension spring.


    AIRTECH Rubber Truck Air Springs 3813-06K FIRESTONE 1T19L11 For TEMPLIN 040306102070AIRTECH Rubber Truck Air Springs 3813-06K FIRESTONE 1T19L11 For TEMPLIN 040306102070
