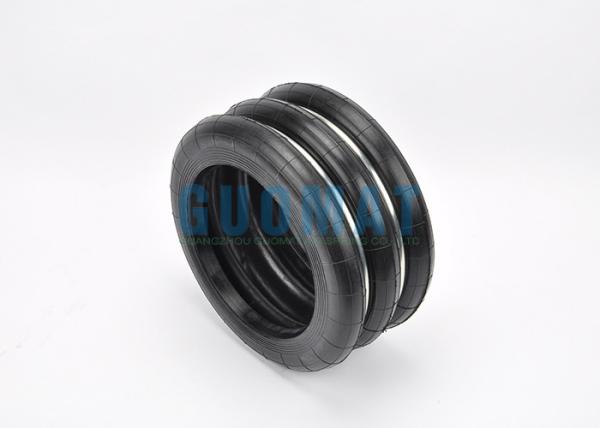

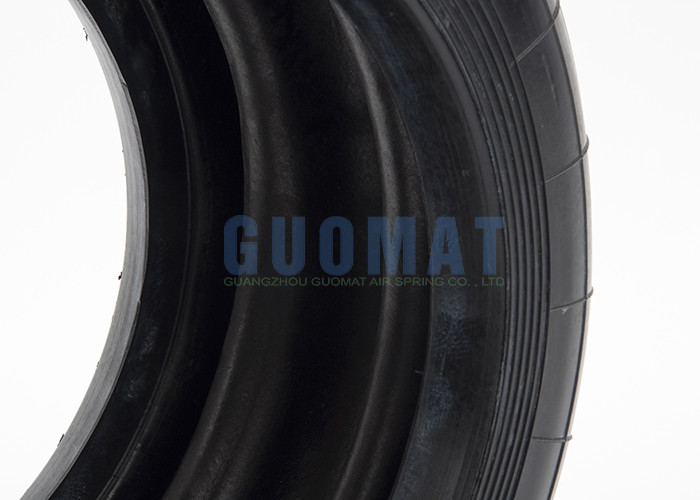

    Double Pcs Steel Girdle Ring Industrial Air Springs / Air Bags 3 Convolution

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : S-350-3
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union,paypal or others
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    • Product Details
    • Company Profile

    Double Pcs Steel Girdle Ring Industrial Air Springs / Air Bags 3 Convolution

    YOKOHAMA S-350-3 Rubber Air Spring 350-3 With Double Pcs Steel Girdle Ring For Friction Press


    S-350 items Detailed Parameter Table:


    GUOMAT NO.Reference No.Hight H(mm)Commonly Maximum Stroke(mm)The Largest Diameter When Compressed(mm)
    Design High(mm)Maximum High(mm)Minimum Height(mm)
    F-350-1S-350-17211740±30450
    F-350-2S-350-210216055±42410
    F-350-3S-350-316025085±65410
    F-350-4S-350-4218336118±85410

    GUOMAT NO.Reference No.Standard Height,Internal Pressure 0.49 M pa When The General ValueUsing Maximum Internal Pressure (M pa)Internal Pressure (M pa)
    Effective Area (Cm2)Volume(L)Load (K n)Dynamic Spring Parameters (N/Min)Vibration Frequency (Hz)
    F-350-1S-350-19606.947.115202.80.692.9-3.9
    F-350-2S-350-29609.547.110402.30.883.9-4.9
    F-350-3S-350-39601547.16471.80.883.9-4.9
    F-350-4S-350-49602147.14711.60.883.9-4.9

    GUOMAT Has Punch Press Air Spring Cushion /Air Shock Absorber Part NO. Below:


    GUOMAT Part NO.Japan YOKOHAMA Reference No.Japan YOKOHAMA Reference No.GUOMAT Part NO.Japan YOKOHAMA Reference No.Japan YOKOHAMA Reference No.
    F-600-1S-600-1RS-600-1F-240-4S-240-4RS-240-4
    F-600-2S-600-2RS-600-2F-240-3S-240-3RS-240-3
    F-600-3S-600-3RS-600-3F-240-2S-240-2RS-240-2
    F-600-4S-600-4RS-600-4F-240-1S-240-1RS-240-1
    F-600-5S-600-5RS-600-5F-220-4S-220-4RS-220-4
    F-550-2S-550-2RS-550-2F-220-3S-220-3RS-220-3
    F-550-3S-550-3RS-550-3F-220-2S-220-2RS-220-2
    F-500-2S-500-2RS-500-2F-200-2S-200-2RS-200-2
    F-500-3S-500-3RS-500-3F-200-3S-200-3RS-200-3
    F-500-4S-500-4RS-500-4F-200-4S-200-4RS-200-4
    F-500-5S-500-5RS-500-5F-160-1S-160-1RS-160-1
    F-450-1S-450-1RS-450-1F-160-2S-160-2RS-160-2
    F-450-2S-450-2RS-450-2F-160-3S-160-3RS-160-3
    F-450-3S-450-3RS-450-3F-160-4S-160-4RS-160-4
    F-450-4S-450-4RS-450-4F-120-4S-120-4RS-120-4
    F-450-5S-450-5RS-450-5F-120-3S-120-3RS-120-3
    F-400-2S-400-2RS-400-2F-120-2S-120-2RS-120-2
    F-400-3S-400-3RS-400-3F-100-4S-100-4RS-100-4
    F-400-4S-400-4RS-400-4F-90-3S-90-3RS-90-3
    F-400-5S-400-5RS-400-5F-90-2S-90-2RS-90-2
    F-350-1S-350-1RS-350-1F-90-1S-90-1RS-90-1
    F-350-2S-350-2RS-350-2F-300-1S-300-1RS-300-1
    F-350-3S-350-3RS-350-3F-300-2S-300-2RS-300-2
    F-350-4S-350-4RS-350-4F-300-3S-300-3RS-300-3
       F-300-4S-300-4RS-300-4
