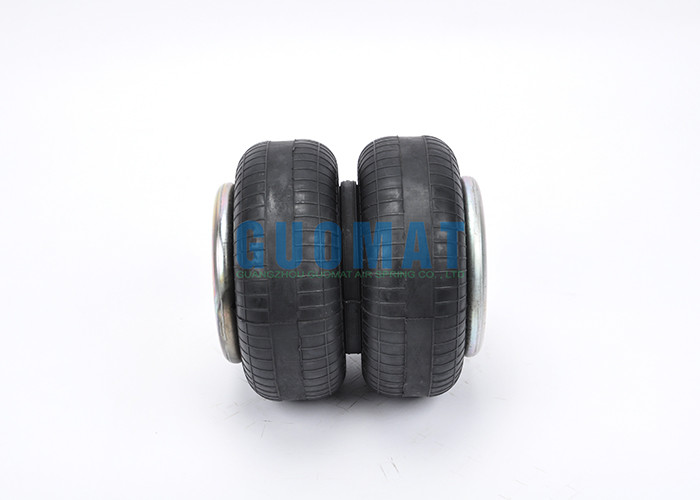

Firestone W01-358-7325 Force Devices For Die Cutting And Stamping Air Shock 2B8-550

Description:

GUOMAT 2B7325 Replaces W01-358-7325 offers different types of air springs and air shock absorbers to meet your actuation or isolation needs. Single, double and triple bellows, needle rollers and sleeves are available in various sizes. End bracket types are required depending on your specific installation needs. In addition to our air spring series, we also offer various industrial shock absorbers and vibration damping solutions.
GUOMAT 2B7325 Replaces W01-358-7325 air springs are characterized by extremely high durability, precise technical design and cost efficiency and can be used in a variety of actuation and vibration isolation applications.

The GUOMAT 2B7325 Replaces W01-358-7325 gas spring has a proven design combined with a fabric-reinforced flexible Wingprene ™ or natural rubber structure and corrosion-resistant end fixings to provide superior quality and performance. As an actuator, GUOMAT 2B7325 Replaces W01-358-7325 air springs can provide linear or angular movement.

Compared to cylinders, they can isolate vibrations and adjust the load height at the same time, and achieve uniform vibration isolation effects with different loads. These air springs (air shock absorbers) have a good ratio of stroke to pressure height and can accommodate a large number of actuating media such as air, water, nitrogen or antifreeze. As an isolator, the GUOMAT 2B7325 Replaces W01-358-7325 gas spring can effectively reduce the harmful effects of vibrations.

OEM Original Equipment Manufacturer:

Triangle spring: 4509
Firestone: W01-358-7325
ContiTech: 64601
US Operator: 8003006
Group power: 57007325
batco: 10-97325
Mark: 227QS-32
Mark: 57QK113
American Airlines: 8003-006
UCF / Impex: AB-2B8-550
Midland / Haldex: CS208550
Euclid / Meritor Aftermarket: E-FS7325
ContiTech: FD120-17509
Euclid / Meritor Aftermarket: FS7325
BWP: M-3557
Compression height: 3.12 inches
Roof number: 3450
Roof width: 5.31 inches
Piston number: 3436
Piston width: 5-31 inches
Firestone Bellows Number: 26
Goodyear part number: 2B8-150 / 2B8-153 / 2B8-550
Goodyear Bellows No .: 579-92-3-530
American Airlines Number: 8003-006
Hendrickson Trailer ID: S-14395
Mark Number: 227QS-32
Triangle part number: 4509
Triangle bellows number: 6392
Watson & Charin ID: AS-0030
Sauer Code: P10-754

The usal kinds of Single Convolution Air Actuator

Use in many applications including:

Lift lifting equipment,

Gasbag press equipment,

Vibration conveyer air spring,

Vibrating screen equipment air spring,

Air hammer

Air spring vibration testing machine

Casting machinery,

4 d cinema seats air spring,

Air spring press equipment,

Air spring vibration isolation equipment testing platform,

Isolation instrument air spring,

Bus stop air spring,

Marble shake air spring,

Laundry dryer air spring equipment,

Amusement equipment, air spring,

Merry-go-round air spring,

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
