    941 MB air suspension springs System W01M588619 for BPW 30 or Pirelli 1TC 300-36

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 941 MB
    Certification : ISO/TS16949
    Price : $59-159/pc
    Payment Terms : T/T, Western Union,paypal or others
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    • Product Details
    • Company Profile

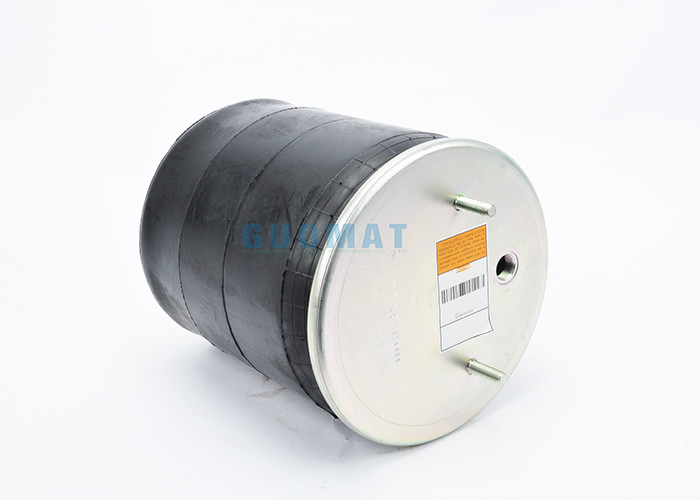

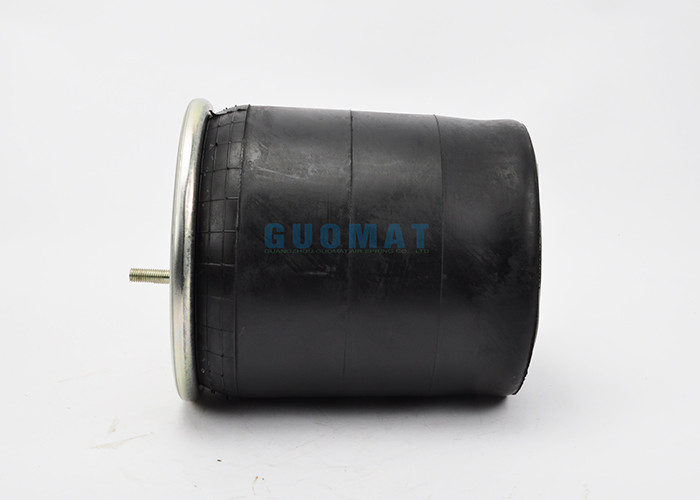

    941 MB air suspension springs System W01M588619 for BPW 30 or Pirelli 1TC 300-36

    941 MB Air Suspension Spring System W01M588619 for BPW 30 or Pirelli 1TC 300-36


    GUOMAT 1T941MB Technical parameters


    screw bolt / Stud

    Top Cover Plate screw bolt / Stud Tooth :2 pcs M 12

    Distance Between Stud and Central axis : 25 mm

    ❷ Gas Hole / Air inlet /Air Fitting

    Gas Hole / Air inlet : M22x1.5.

    Distance Between Gas Hole and Stud :48 mm

    Distance Between Stud and Central axis : 73 mm

    Cover Plate

    Top Cover Plate Diameter: Ø259 mm

    Rubber Bellows

    Rubber Bellows Natural Diameter: 300 mm

    Rubber Bellows MAX Height : 610mm

    Rubber Bellows MIN Height : 285mm

    Design height 360mm

    Working stroke 325mm

    Bumper block / Buffer block

    Bumper Block height :41mm

    Bottom Piston

    Bottom Piston Diameter : Ø205mm

    Bottom Piston Height :193 mm

    Piston Bolt

    Piston Bolt Tooth : M16 X2.0

    6 pieces of Bolt

    Middle inside between center Bolt : 70 mm

    Inside the most close Bolt :20 mm

    Inside and the beside Bolt: 60 mm


    941 MB Spring System to BPW 30


    Cross ReferencesVehicle​​s OEM References
    CONTITECH 941 MBGranning : 15918
    FIRESTONE W01 M58 8619 W01M588619WABCO : 951 811 762 0
    FIRESTONE Bellows 1T17-8.3Pirelli : 1TC 300-36
    Phoenix: 1 DK 21BPW Type : BPW 30
    Taurus : KR 730-01BPW: 05.429.40.28.1
    Dunlop FR : D11B30
    Goodyear : 1R11-701


    CONTINENTAL
    941 MB/ BPW 30
    DUNLOP FRANCE
    D11 B30
    FIRESTONE REF.
    W01 M58 8619
    STYLE NO.
    1T17D-8.3
    GOODYEAR
    1R11-701
    GRANNING
    15918
    PHOENIX
    1 DK21
    PIRELLI
    1TC300-36
    TAURUS
    UR 730-01
    UC
    P1393
    WABCO
    951 811 762 0

    AIRTECH
    130222
    AIRTECH PROD. NO.
    3941K
    AUTOMINT
    6010
    BLACKTECH
    RML 7052 C
    CF GOMMA
    1 TC 300-36/ 205170


    0542940361 0542943200 0542940101 0542940281

    BPW 05.429.40.30.1 05.429.43.20.0 05.429.41.24.1 05.429.40.09.1 05.429.40.34.0 05.801.09.73.0 05.429.42.18.0 05.429.40.28.1 05.429.42.18.1


    Weight 9.78kg

    Space required 325mm

    Loading cap.at 5.0bar 2.3kn

    Loading cap.At7.0bar 28.5kn


    941 MB Air Suspension Spring with other kind numbers


    ContitechFirestoneGoodyearPhoenixDunlop FRCF GommaTaurus
    941 MBW01-M58-86191R11-7011DK 21D 11B 301TC 300-361TC 300-36
    941 MBW01-M58-86201R11-7001DK 21D 11U 301TC 300-36UR 7300-1T

    Truck Air springs can fit for the below trucks


    DAF Truck
    Mercedes Truck
    Renault Truck
    Scania Truck
    VOL-VO Truck
    ERF Truck
    Foden Truck
    IVE-CO Truck
    MAN Truck

    and so on
