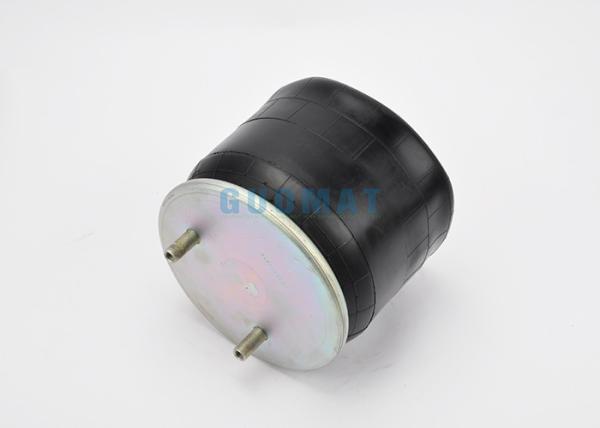

Truck Air Springs FIRESTONE W01 358 8708 Good for HENDRICKSON S21966 1 T17 CA-6.5

GUOMAT 1T8708 Technical parameters

❶ screw bolt / Stud

Top Cover Plate screw bolt / Stud Tooth : 3/4"-16UNF

Screw Center Distance of Top Cover Plate : 140 mm

❷ Combined link rod / Combo Stud

Gas Hole / Air inlet : 1/4"-18NPT.

Combo Stud Tooth :3/4"-16UNF

❸ Cover Plate

Top Cover Plate Diameter: Ø259 mm

❹Rubber Bellows

❺ Bumper block / Buffer block

Bumper Block height :112 mm

❻ Bottom Piston

Bottom Piston Diameter : Ø235 mm

Bottom Piston Height :138,5 mm

❼ Piston Bolt

Piston Bolt Tooth : 1/2"-13 UNC

W01 358 8708 to HENDRICKSON

Detail references:

Firestone :W01-358-8708
Extended Height:21.50 inches
Compressed Height: 9.10 inches
Top Plate Number:3300
Top Plate Width:10.38 inches
Piston Number:9537
Piston Diameter Width:9.22 inches
Firestone Bellows Number:1T17CA-6.5
Goodyear Number:1R13-128
Hendrickson Trailer Number:S-21966

The reason why we use the air spring

Guomat air spring allows automatic levelling that with the automatic height sensors ,so have no change in vehicle height from an unloaded to a fully loaded condition. It permits the cargo space to be designed
with a higher top together with a lower floor without interfering with the tires while still staying within maximum height of vehicle limits. Otherwise, a constant height is maintained for use at loading docks
and for trailer to pick up.
